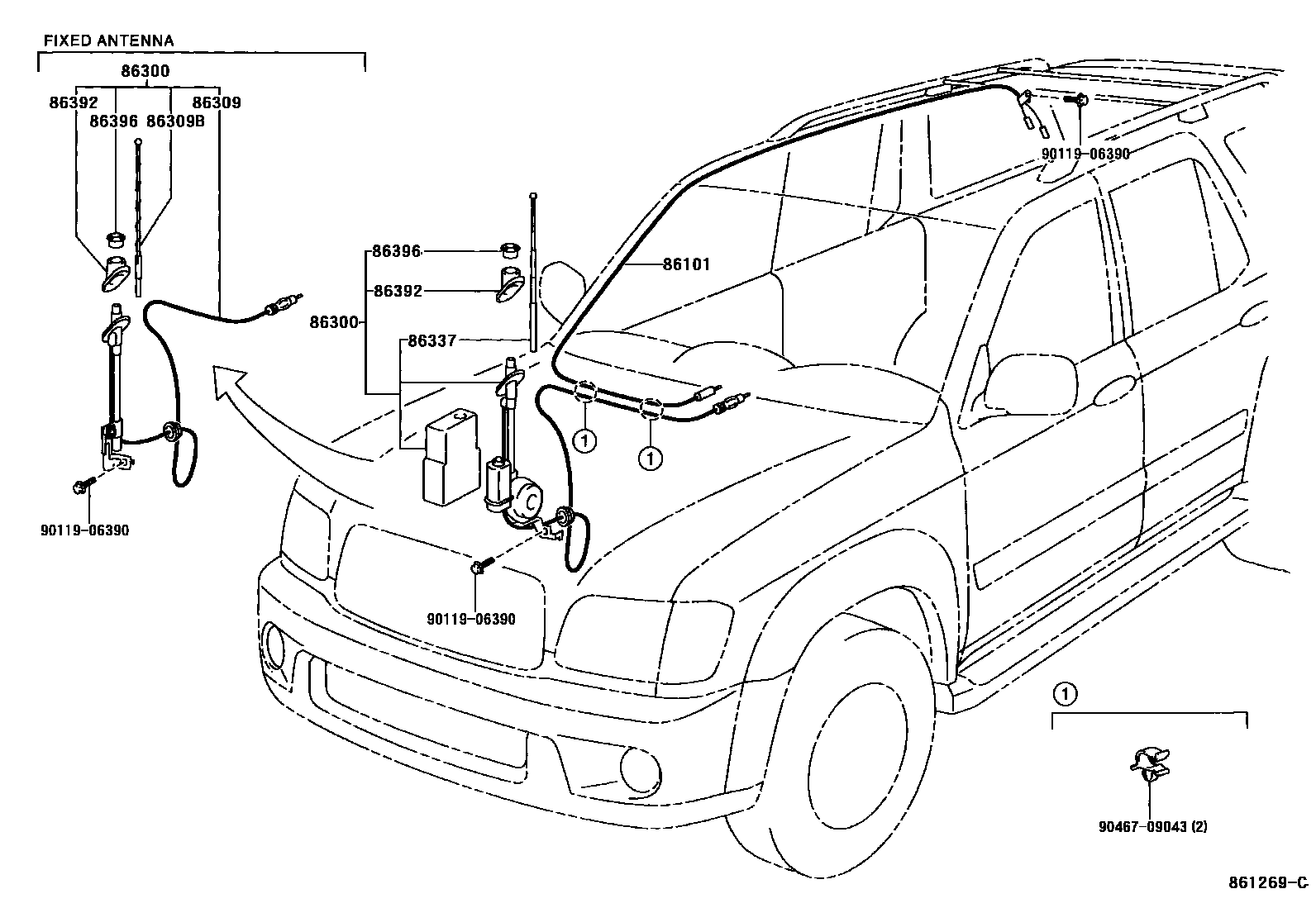

Toyota SEQUOIA — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0C010i200408

main86101-AF010i200009-200408

86300ANTENNA ASSY, W/HOLDER

main86300-0C020i200408

main86300-AF010i200009-200408

MOTOR ANTENNA

main86300-AF020i200209-200408

FIXED ANTENNA

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-AF020i200209-200408

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-AA040i200209-200408

86337ROD & PIPE, SEALED W/CABLE

main86337-AF010i200009-200204

main86337-AF011i200204-200408

86392ORNAMENT, ANTENNA

main86392-AF010i200009-200408

86396NUT, ANTENNA

main86396-06010i200009-200408

9011906390

main90119-06390

9046709043

main90467-09043

9 parts on this diagram · 3 diagrams in section

ANTENNA for Toyota SEQUOIA

This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota SEQUOIA. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, PILLAR ANTENNA, POLE SUB-ASSY, PULL TOP ANTENNA, ROD & PIPE, SEALED W/CABLE.
