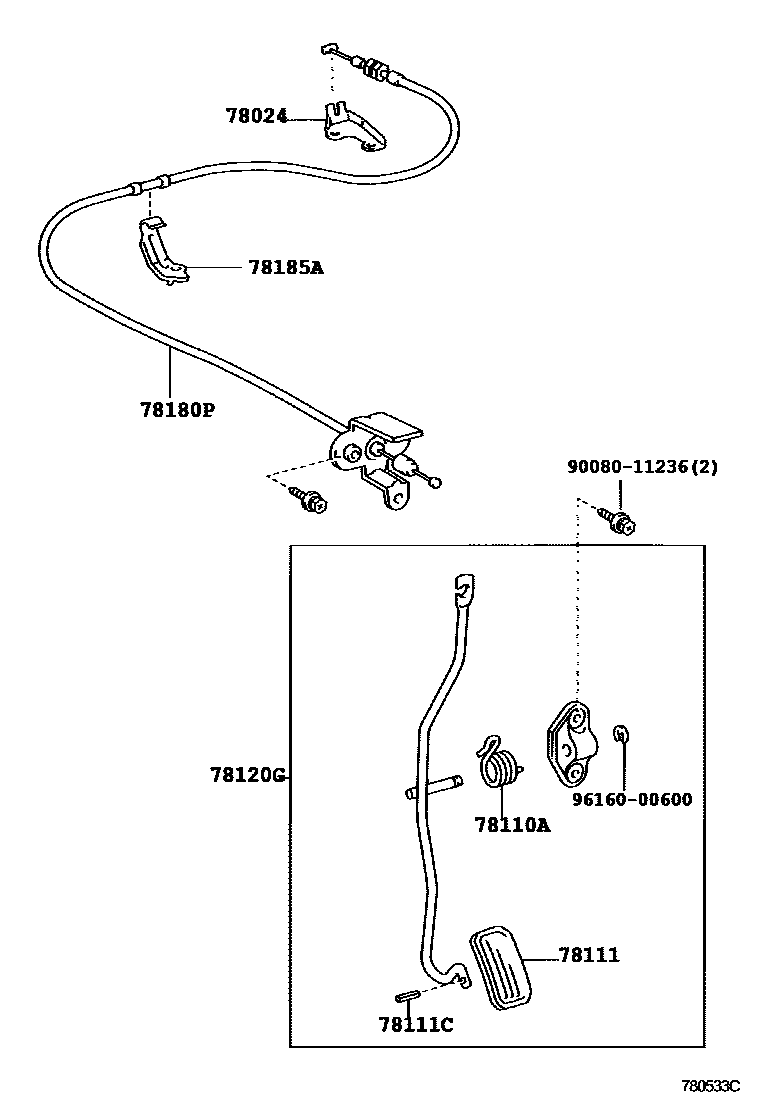

Toyota SEQUOIA — ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78184-34030iUCK35,45..4HC200009-200209

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90080-50240iUCK35,45..4HC200009-200209

78111PEDAL, ACCELERATOR

main78111-06010iUCK35,45..4HC200009-200209

78111CPIN (FOR ACCELERATOR PEDAL)

main90080-25018iUCK35,45..4HC200009-200209

78120GROD ASSY, ACCELERATOR PEDAL

main78120-0C030iUCK35,45200009-200209

main78120-0C050iUCK35,45200408

sub78120-0C051

main78120-34030iUCK35,45200209-200301

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-0C010iUCK35,45200009-200209

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-0C010iUCK35,45200009-200209

9008011236

main90080-11236

9616000600

main96160-00600

9 parts on this diagram · 2 diagrams in section
