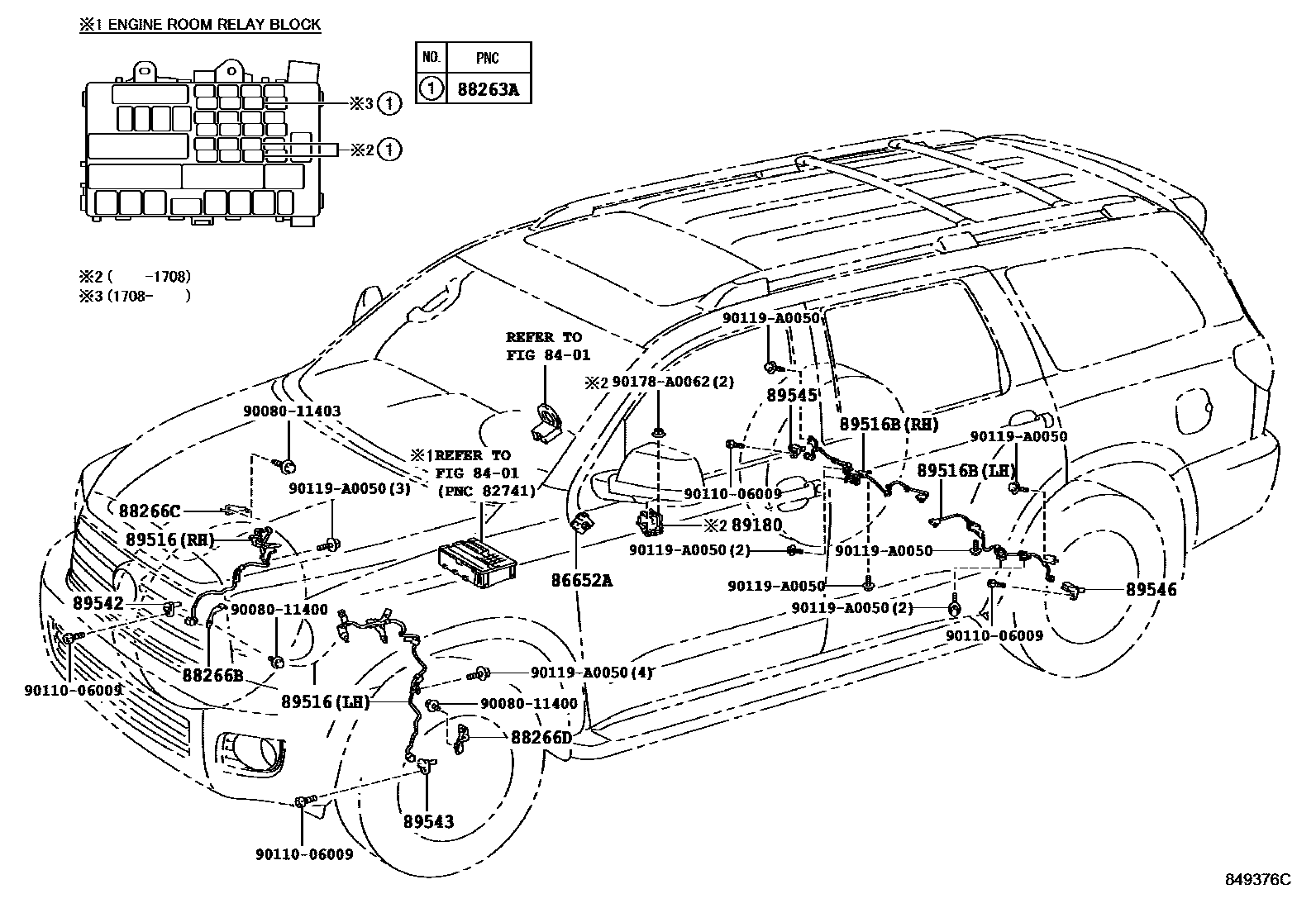

Toyota SEQUOIA — ABS & VSC
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
88263ARELAY, SKID CONTROL
88266BCLAMP, SKID CONTROL SENSOR, NO.1
88266CCLAMP, SKID CONTROL SENSOR, NO.2
88266DCLAMP, SKID CONTROL SENSOR, NO.3
89180SENSOR ASSY, YAWRATE
89516WIRE, SKID CONTROL SENSOR
RH
LH
89516BWIRE, SKID CONTROL SENSOR
RH
LH
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
9008011400
main90080-11400
9008011403
main90080-11403
9011006009
main90110-06009
90119A0050
main90119-A0050
90178A0062
main90178-A0062
18 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota SEQUOIA
This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota SEQUOIA. Key components include: SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, RELAY, SKID CONTROL, CLAMP, SKID CONTROL SENSOR, NO.1, CLAMP, SKID CONTROL SENSOR, NO.2.
