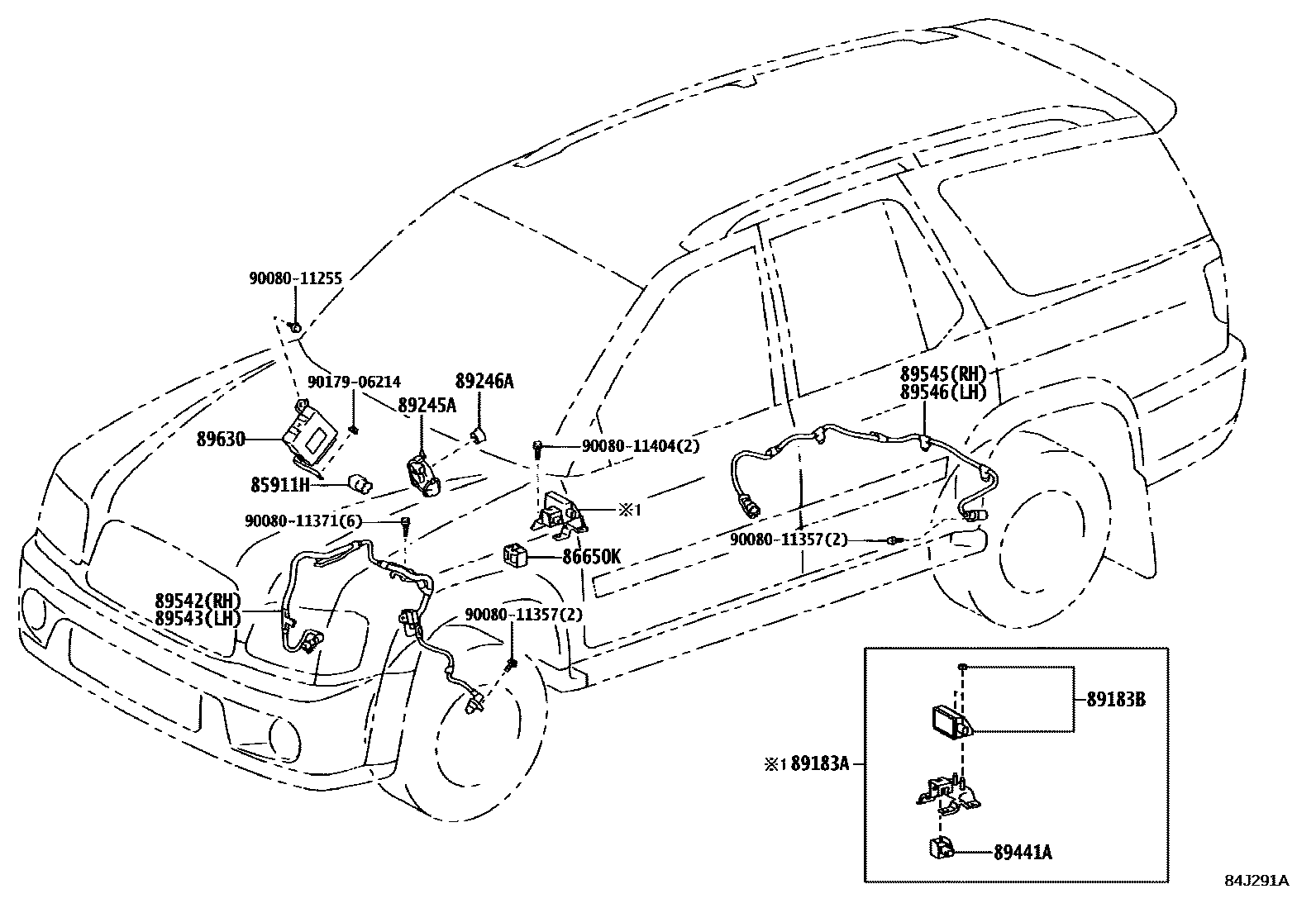

Toyota SEQUOIA — ABS & VSC

0001 1 0002 1

85911HRELAY, INHIBIT

main90987-03003iUCK35,45200408

86650KBUZZER ASSY, SKID CONTROL

main86650-26070iUCK35,45..4HC200009-200209

main86652-51010iUCK35,45200209-200408

89183ASENSOR, YAWRATE

main89180-0C010iUCK35,45..4HC200009-200209

PART NUMBER LABEL=89180-0C010

main89180-0C020iUCK35,45200209-200408

PART NUMBER LABEL=89180-0C020

main89180-0C030iUCK35,45200408

89183BSENSOR, YAWRATE

main89183-0C010iUCK35,45200009-200209

89245ASENSOR, STEERING

main89245-0C010iUCK35,45200009-200209

PART NUMBER LABEL=89245-0C010

main89245-34010iUCK35,45200209-200408

PART NUMBER LABEL=89245-34010

89246ADISC, SENSOR STEERING

main89246-0C010iUCK35,45200009-200209

main89246-34010iUCK35,45200408

89441ASENSOR, DECELERATION

main89441-0C010iUCK35,45200009-200209

89542SENSOR, SPEED, FRONT RH

main89542-0C010iUCK35,45200009-200408

89543SENSOR, SPEED, FRONT LH

main89543-0C010iUCK35,45200009-200408

89545SENSOR, SPEED, REAR RH

main89545-0C010iUCK35,45200009-200408

main89545-0C020iUCK35,45200408

89546SENSOR, SPEED, REAR LH

main89546-0C010iUCK35,45200009-200408

main89546-0C020iUCK35,45200408

89630COMPUTER ASSY, TRANSLATE

main89630-0C010iUCK35,45..4HC200209-200305

PART NUMBER LABEL=89630-0C010

main89630-0C011iUCK35,45200305-200408

main89630-0C020iUCK35,45200408

main89630-34010iUCK35,45..4HC200009-200209

PART NUMBER LABEL=89630-34010

9008011255

main90080-11255

9008011357

main90080-11357

9008011371

main90080-11371

9008011404

main90080-11404

9017906214

main90179-06214

17 parts on this diagram · 2 diagrams in section
