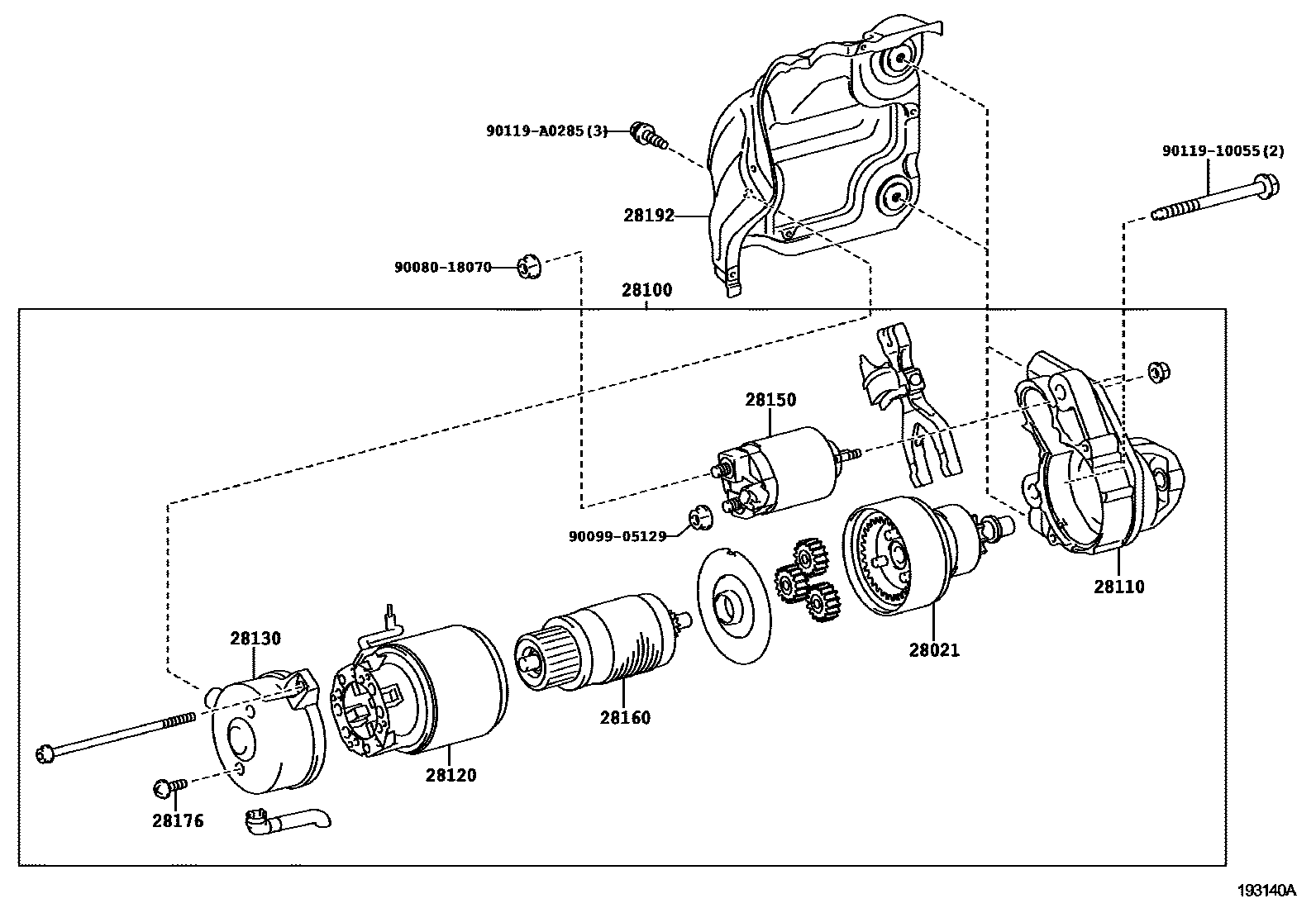

Toyota SEQUOIA — STARTER

0001 1 0002 1

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0S031i3URFE..USK6#201104-201609

main28021-38040i3URFE..USK6#200811-201104

28100STARTER ASSY

main28100-0S011i3URFE..USK6#200811-201104

12V 2.0KW

main28100-0S050i3URFE..USK6#201104-201609

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-38010i3URFE..USK6#200811-201104

28120YOKE ASSY, STARTER

main28120-38020i3URFE..USK6#200811-201104

main28120-38070i3URFE..USK6#201104-201609

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-38010i3URFE..USK6#200811-201104

28150SWITCH ASSY, MAGNET STARTER

main28150-38010i3URFE..USK60200811-200908

main28150-38040i3URFE..USK6#200908-201609

28160ARMATURE ASSY, STARTER

main28160-0S060i3URFE..USK6#201401-201609

(L)

main28160-38020i3URFE..USK6#200811-201104

main28160-38070i3URFE..USK6#201104-201401

28176SCREW, STARTER

main90099-00271×2i3URFE..USK6#200811-201104

28192COVER, STARTER

main28192-0S020i3URFE..USK6#200811-201609

sub28192-38010

9008018070

main90080-18070

9009905129

main90099-05129

9011910055

main90119-10055

90119A0285

main90119-A0285

13 parts on this diagram · 2 diagrams in section
