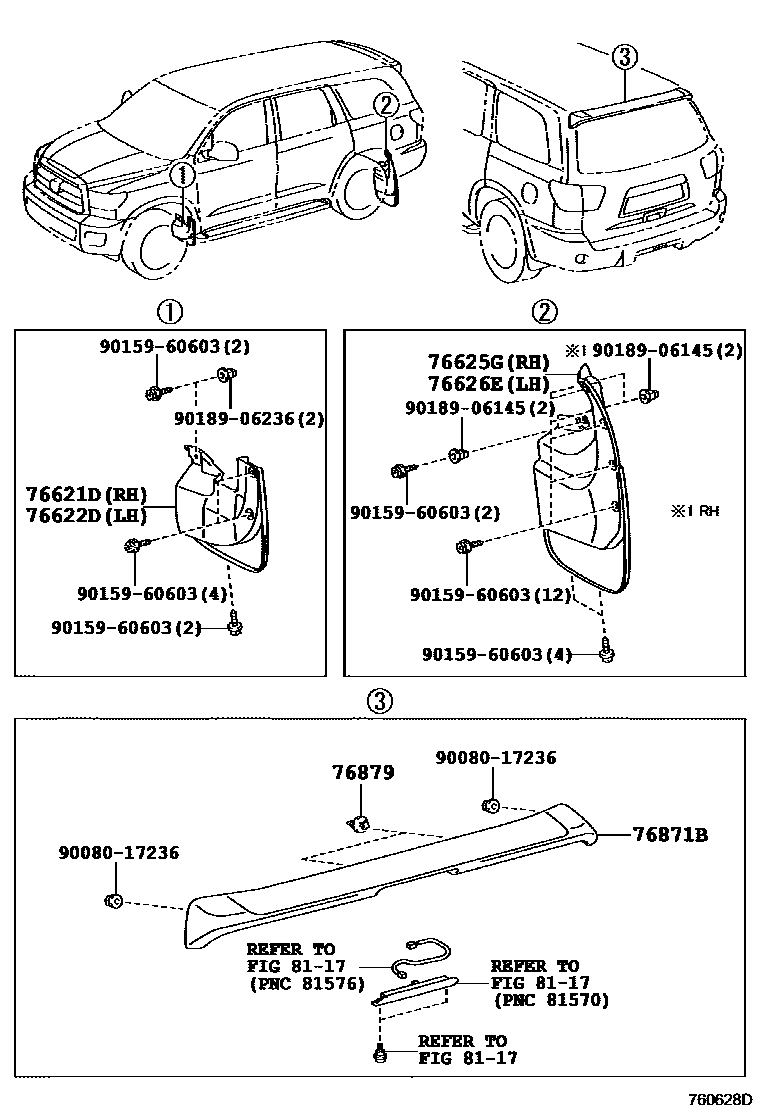

Toyota SEQUOIA — SPOILER & SIDE MUDGUARD

76621DMUDGUARD, FRONT FENDER, RH

main76621-0C050i200811-201609

76622DMUDGUARD, FRONT FENDER, LH

main76622-0C050i200811-201609

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0C070i200811-201609

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-0C070i200811-201609

76871BCOVER, REAR SPOILER

main76871-0C902i200811-201609

REAR SPOILER-WITH

76879CLIP, REAR SPOILER, NO.1

main76879-0C030i200811-201609

REAR SPOILER-WITH

8117CENTER STOP LAMP

→ Go to FIG 81-17

9008017236

main90080-17236

9015960603

main90159-60603

9018906145

main90189-06145

9018906236

main90189-06236

11 parts on this diagram · 1 diagram in section

SPOILER & SIDE MUDGUARD for Toyota SEQUOIA

This section contains 11 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota SEQUOIA. Key components include: MUDGUARD, FRONT FENDER, RH, MUDGUARD, FRONT FENDER, LH, MUDGUARD, QUARTER PANEL, REAR RH, MUDGUARD, QUARTER PANEL, REAR LH, COVER, REAR SPOILER.
