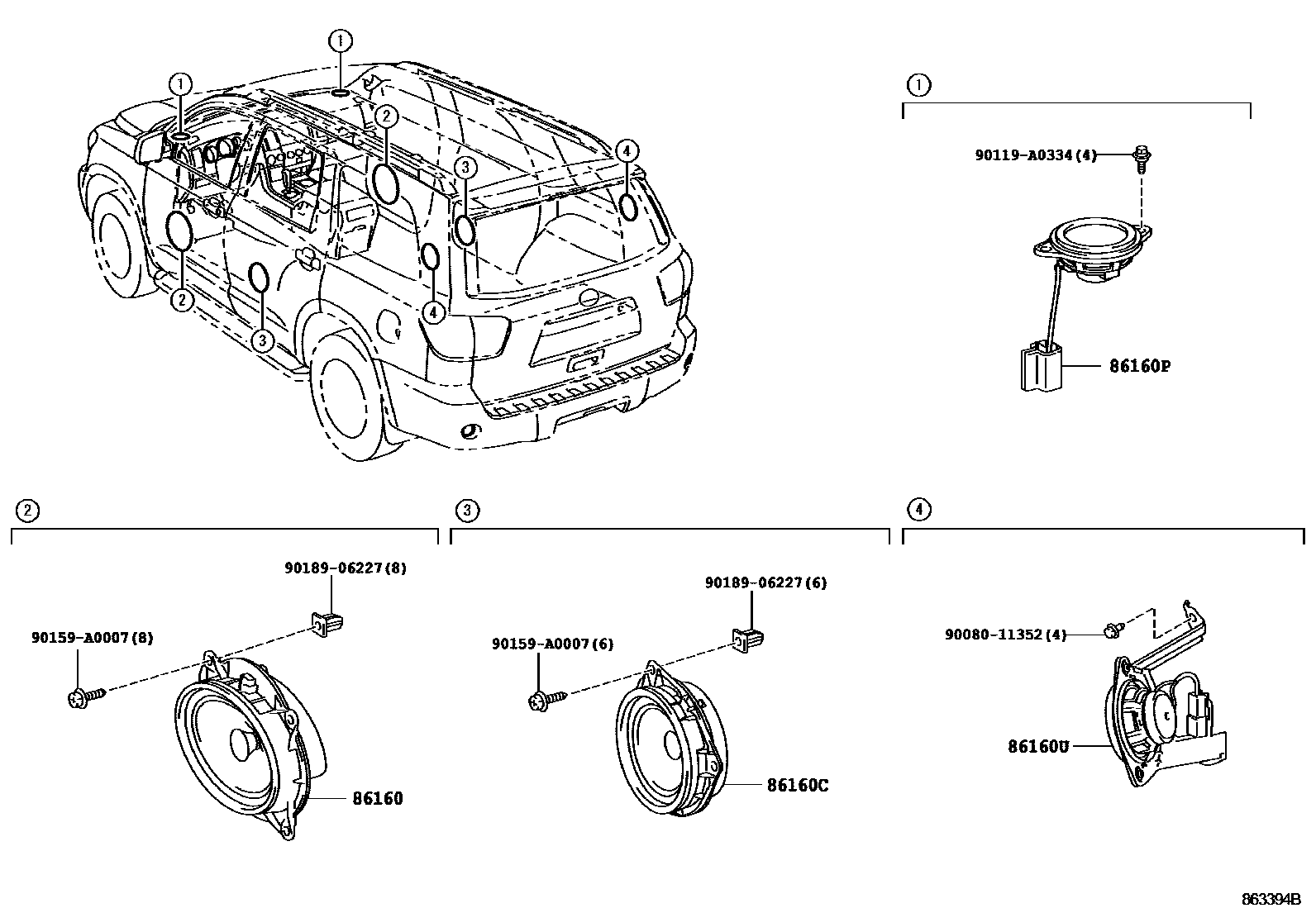

Toyota SEQUOIA — SPEAKER

0001 18 SPEAKER 0002 112 SPEAKER 0003 114 SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0C150×2iUSK6#..SR5200811-201408

AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL

main86160-AA440×2iUSK6#..LIMD,PLAT201408-201609

86160CSPEAKER SET, REAR

main86160-0C140×2iUSK6#..LIMD,PLAT201408-201609

main86160-AC280×2iUSK6#..SR5200811-201408

AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL

main86160-AC290×2iUSK6#..SR5200811-201111

86160PSPEAKER ASSY, FRONT NO.2

main86160-0C070×2iUSK6#..SR5200811-201408

AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL

main86160-0C160×2iUSK6#..SR5201408-201609

AUDIO-*DA(DELUXE) 12SPEAKER

main86160-AE010×2iUSK6#..SR5200811-201609

86160USPEAKER ASSY, QUARTER SIDE

main86160-0C090iUSK6#..SR5200811-201609

LH

main86160-0C100iUSK6#..SR5200811-201609

RH

main86160-0C110iUSK6#..SR5200811-201408

LH

main86160-0C120iUSK6#..SR5200811-201408

AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,RH

main86160-0C190iUSK6#..SR5201408-201609

AUDIO-*DA(DELUXE) 12SPEAKER,LH

main86160-0C200iUSK6#..SR5201408-201609

RH

9008011352

main90080-11352

90119A0334

main90119-A0334

90159A0007

main90159-A0007

9018906227

main90189-06227

8 parts on this diagram · 3 diagrams in section
