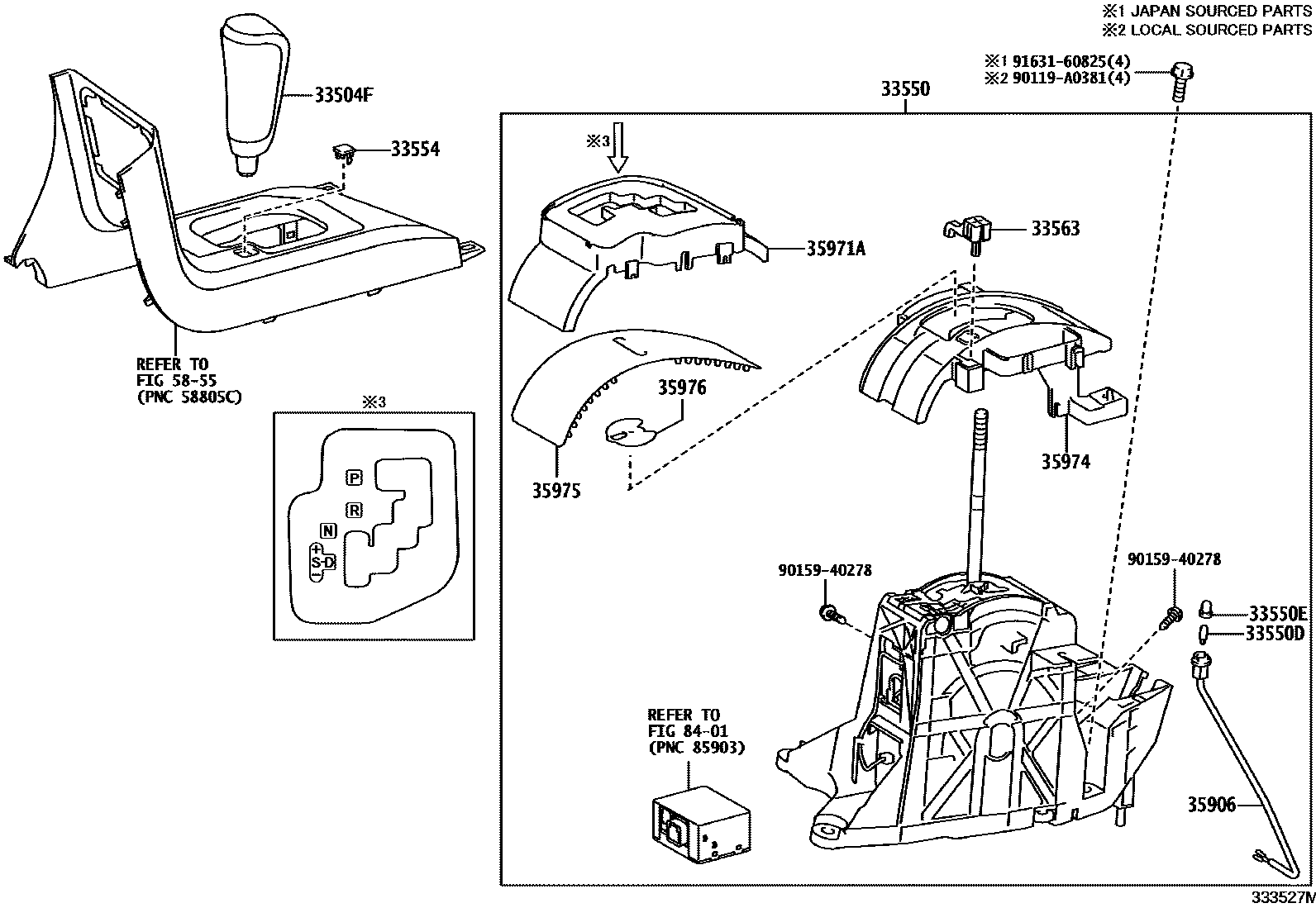

Toyota SEQUOIA — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0C010-C0i201106-201609

BLACK,TRIM1#,4#

main33504-0C010-E0i200811-201106

DK. BROWN,TRIM44

main33504-0C020-C0i200811-201106

BLACK,TRIM1#,44

main33504-0C020-E1i200811-201106

DK. BROWN,TRIM44

main33504-0C020-E2i200811-200904

REDROCK,TRIM2#

main33504-0C030-C0i200904-201008

BLACK,TRIM1#,2#

main33504-0C030-E1i200904-201008

DK. BROWN,TRIM4#

main33504-0C040-C0i201008-201106

BLACK,TRIM1#,2#,44

main33504-0C040-E0i201008-201106

DK. BROWN,TRIM44

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-0C010i200811-200910

main33550-0C020i200911-201609

33550DBULB, POSITION INDICATOR LAMP

main90981-11040i200811-201609

12V 2W

33550ECAP, POSITION INDICATOR LAMP

main84998-0C010i200811-201609

33554CAP, SHIFT LEVER

main33554-0C010i200811-200904

main33554-0C020i200904-201609

33563BUTTON, SHIFT LOCK RELEASE

main33563-0C010i200811-201609

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-0C010i200811-201609

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-0C010i200811-200911

main35971-0C011i201003-201609

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0C010i200811-201609

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-0C010i200811-201609

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-0C010i200811-201609

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0381

main90119-A0381

9015940278

main90159-40278

9163160825

main91631-60825

16 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota SEQUOIA

This section contains 28 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota SEQUOIA. Key components include: KNOB SUB-ASSY, SHIFT LEVER, FLOOR SHIFT ASSY, TRANSMISSION, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, CAP, SHIFT LEVER.
