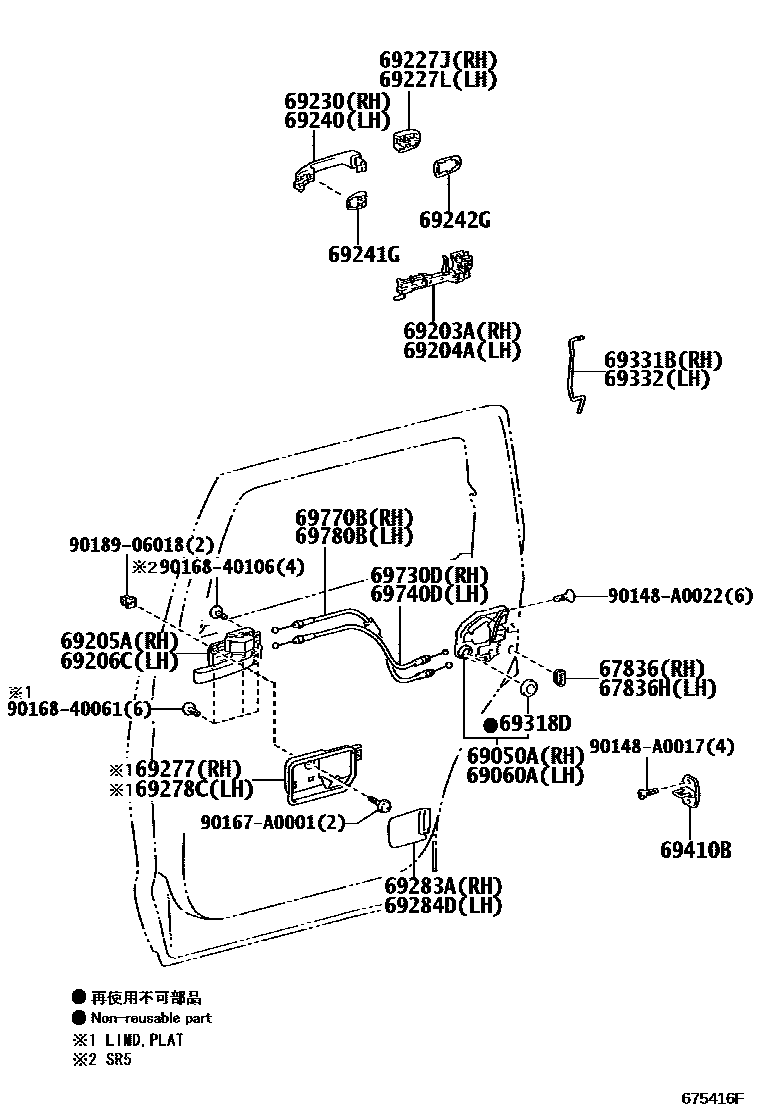

Toyota SEQUOIA — REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040i200811-201609

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040i200811-201609

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-0C030i200811-201109

main69050-0C060i201109-201609

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-0C030i200811-201109

main69060-0C060i201109-201609

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0C010i200811-201609

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0C010i200811-201609

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0C040i200811-201609

main69205-0C050i200811-201609

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0C040i200811-201609

main69206-0C050i200811-201609

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69217-0C040i200811-201609

*CR

main69217-0C060-A0i200811-201609

SUPER WHITE 2,040

main69217-0C060-A2i201308-201609

WHITE PEARL CS.,070

main69217-0C060-B0i200811-201609

SILVER ME.,1D6

main69217-0C060-B1i200811-201008

GRAY ME.,1F9

main69217-0C060-B2i201008-201609

GRAY ME.,1G3

main69217-0C060-C0i200811-201609

BLACK,202

main69217-0C060-D0i200811-201106

DK RED MC,3Q7

main69217-0C060-D2i201106-201609

BLACKISH RED MC.,3R0

main69217-0C060-E0i200811-200904

BEIGE M. M.,4Q2

main69217-0C060-E1i200811-201609

BRONZE M.M.,4T3

main69217-0C060-E2i200904-201609

BEIGE ME.,4T8

main69217-0C060-G0i200811-200904

DK.GREEN M.M.,6T8

main69217-0C060-G1i200904-201008

DK.GREEN MC.,6V4

main69217-0C060-J0i200811-201008

DK.BLUE MC.,8S6

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69217-0C040i200811-201609

*CR

main69217-0C060-A0i200811-201609

SUPER WHITE 2,040

main69217-0C060-A2i201308-201609

WHITE PEARL CS.,070

main69217-0C060-B0i200811-201609

SILVER ME.,1D6

main69217-0C060-B1i200811-201008

GRAY ME.,1F9

main69217-0C060-B2i201008-201609

GRAY ME.,1G3

main69217-0C060-C0i200811-201609

BLACK,202

main69217-0C060-D0i200811-201106

DK RED MC,3Q7

main69217-0C060-D2i201106-201609

BLACKISH RED MC.,3R0

main69217-0C060-E0i200811-200904

BEIGE M. M.,4Q2

main69217-0C060-E1i200811-201609

BRONZE M.M.,4T3

main69217-0C060-E2i200904-201609

BEIGE ME.,4T8

main69217-0C060-G0i200811-200904

DK.GREEN M.M.,6T8

main69217-0C060-G1i200904-201008

DK.GREEN MC.,6V4

main69217-0C060-J0i200811-201008

DK.BLUE MC.,8S6

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0C020i200811-201609

PLATED

main69210-0C030-A0i200811-201609

SUPER WHITE 2,040

main69210-0C030-A2i201308-201609

WHITE PEARL CS.,070

main69210-0C030-B0i200811-201609

SILVER ME.,1D6

main69210-0C030-B1i200811-201008

GRAY ME.,1F9

main69210-0C030-B2i201008-201609

GRAY ME.,1G3

main69210-0C030-C0i200811-201609

BLACK,202

main69210-0C030-D0i200811-201106

DK RED MC,3Q7

main69210-0C030-D2i201106-201609

BLACKISH RED MC.,3R0

main69210-0C030-E0i200811-200904

BEIGE M. M.,4Q2

main69210-0C030-E1i200811-201609

BRONZE M.M.,4T3

main69210-0C030-E2i200904-201609

BEIGE ME.,4T8

main69210-0C030-G0i200811-200904

DK.GREEN M.M.,6T8

main69210-0C030-G1i200904-201008

DK.GREEN MC.,6V4

main69210-0C030-J0i200811-201008

DK.BLUE MC.,8S6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0C020i200811-201609

PLATED

main69210-0C030-A0i200811-201609

SUPER WHITE 2,040

main69210-0C030-A2i201308-201609

WHITE PEARL CS.,070

main69210-0C030-B0i200811-201609

SILVER ME.,1D6

main69210-0C030-B1i200811-201008

GRAY ME.,1F9

main69210-0C030-B2i201008-201609

GRAY ME.,1G3

main69210-0C030-C0i200811-201609

BLACK,202

main69210-0C030-D0i200811-201106

DK RED MC,3Q7

main69210-0C030-D2i201106-201609

BLACKISH RED MC.,3R0

main69210-0C030-E0i200811-200904

BEIGE M. M.,4Q2

main69210-0C030-E1i200811-201609

BRONZE M.M.,4T3

main69210-0C030-E2i200904-201609

BEIGE ME.,4T8

main69210-0C030-G0i200811-200904

DK.GREEN M.M.,6T8

main69210-0C030-G1i200904-201008

DK.GREEN MC.,6V4

main69210-0C030-J0i200811-201008

DK.BLUE MC.,8S6

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0C010×2i200811-201609

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0C010×2i200811-201609

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-0C030-C0i200811-201609

BLACK

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-0C050-C0supersedes 69278-0C040-C0i200811-201609

BLACK; POWER MEMORY PACKAGE,BLACK

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-0C010-C0i200811-201609

BLACK

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-0C010-C0i200811-201609

BLACK

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2i200811-201609

69331BROD, REAR DOOR LOCK OPEN, RH

main69331-0C030i200811-201609

69332ROD, REAR DOOR LOCK OPEN, LH

main69332-0C030i200811-201609

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-AA030×2i200811-201609

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0C060i200811-201609

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0C060i200811-201609

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0C060i200811-201609

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0C060i200811-201609

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0001

main90167-A0001

9016840061

main90168-40061

9016840106

main90168-40106

9018906018

main90189-06018

32 parts on this diagram · 1 diagram in section

REAR DOOR LOCK & HANDLE for Toyota SEQUOIA

This section contains 32 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota SEQUOIA. Key components include: COVER, REAR DOOR LOCK CHILD PROTECTION, RH, COVER, REAR DOOR LOCK CHILD PROTECTION, LH, LOCK ASSY, REAR DOOR W/MOTOR, RH, LOCK ASSY, REAR DOOR W/MOTOR, LH, FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH.
