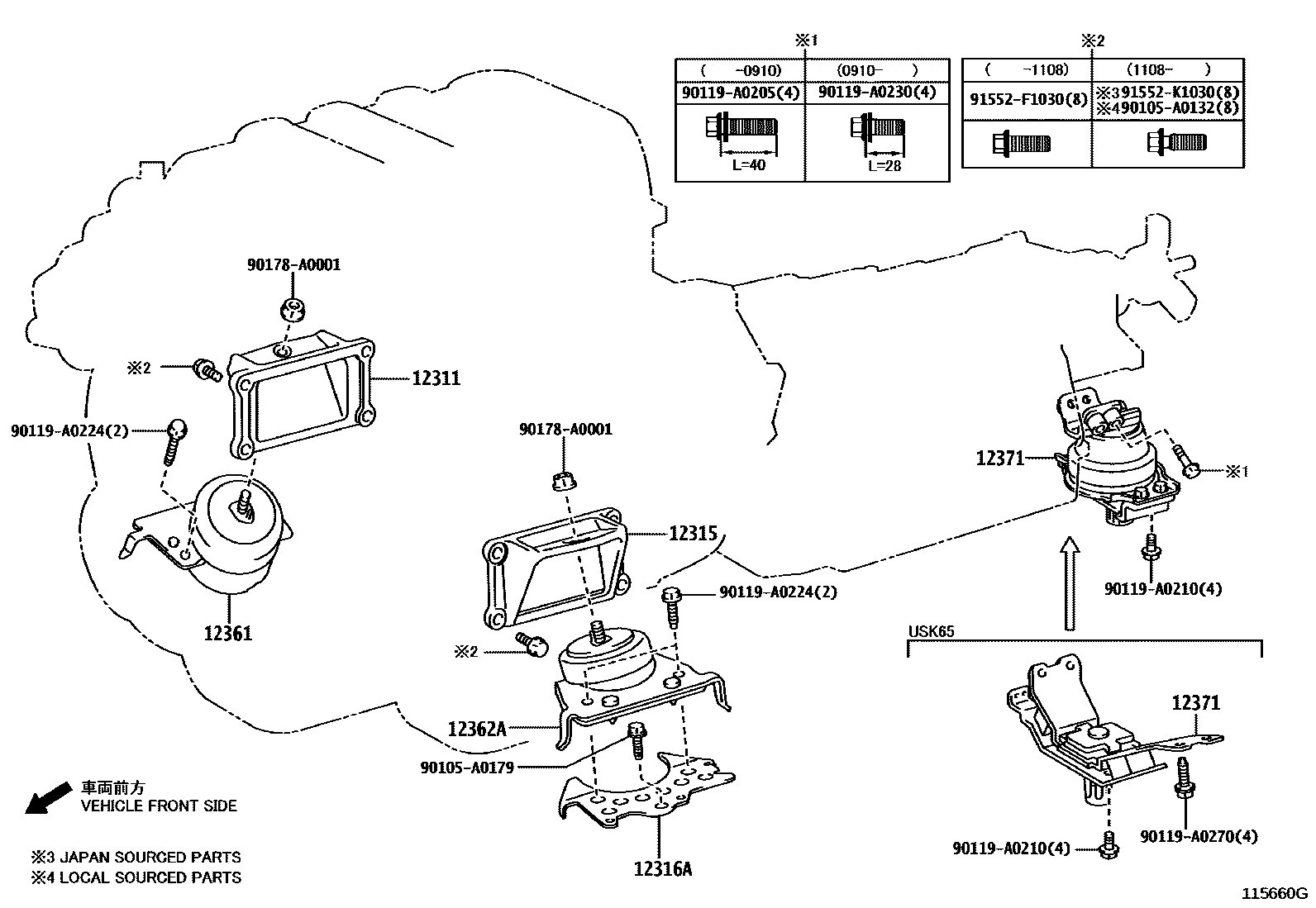

Toyota SEQUOIA — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-38030i3URFE..USK6#200811-201609

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-38020i3URFE..USK6#200811-201609

12316ABRACKET, ENGINE MOUNTING, FR NO.2 LH

main12316-0S010i3URFE..USK6#200811-201609

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0S020i3URFE..USK6#200811-201609

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-0S010i3URFE..USK6#200811-201609

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0S010i3URFE..USK60200811-200910

main12371-0S020i3URFE..USK65200911-201609

main12371-0S040i3URFE..USK60200910-201609

90105A0132

main90105-A0132

90105A0179

main90105-A0179

90119A0205

main90119-A0205

90119A0210

main90119-A0210

90119A0224

main90119-A0224

90119A0230

main90119-A0230

90119A0270

main90119-A0270

90178A0001

main90178-A0001

91552F1030

main91552-F1030

91552K1030

main91552-K1030

16 parts on this diagram · 1 diagram in section
