Toyota SEQUOIA — MIRROR

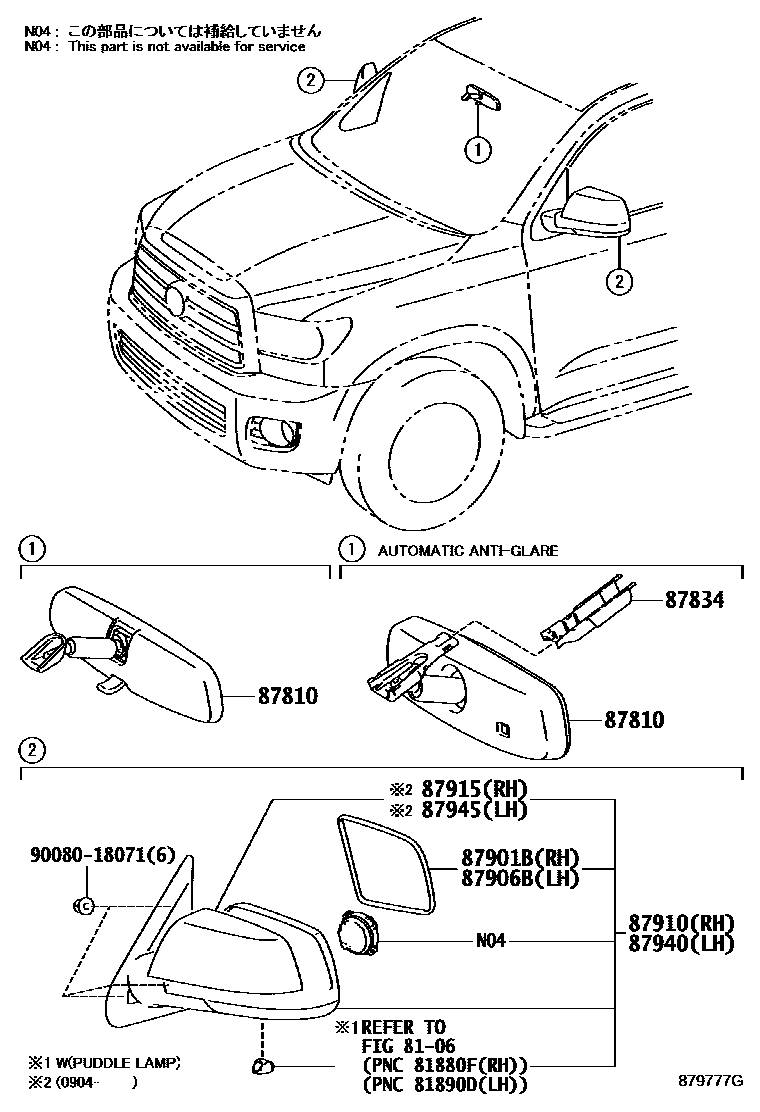

Parts diagram
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-06051i200811-201008
INSIDE REAR VIEW MIRROR-EC +COMPASS
main87810-06080i200911-201609
main87810-0C020i200811-200910
main87810-0C180i201008-201609
INSIDE REAR VIEW MIRROR-EC +COMPASS
main87810-0C070i200904-201008
INSIDE REAR VIEW MIRROR-G + 2.5"BACK MONITOR DISP
main87810-0C091i201008-201208
INSIDE REAR VIEW MIRROR-EC +COMPASS +3.3"B/M DISP
main87810-0C190i201208-201406
INSIDE REAR VIEW MIRROR-EC +COMPASS +3.3"B/M DISP
main87810-0C191i201407-201609
INSIDE REAR VIEW MIRROR-EC +COMPASS +3.3"B/M DISP
main87810-0E040i200811-200904
INSIDE REAR VIEW MIRROR-G + 2.5"BACK MONITOR DISP
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0C010i201008-201106
INSIDE REAR VIEW MIRROR-EC +COMPASS +3.3"B/M DISP
main87818-0C011i201107-201609
INSIDE REAR VIEW MIRROR-EC +COMPASS +3.3"B/M DISP
main87818-0C020i200811-201008
INSIDE REAR VIEW MIRROR-EC +COMPASS
main87818-04010i200811-200903
INSIDE REAR VIEW MIRROR-G + 2.5"BACK MONITOR DISP
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87903-0C050i200811-201609
main87903-0C060i200811-201108
sub87903-0C061
main87903-0C080supersedes 87903-0C060i201108-201308
POWER MEMORY PACKAGE
main87903-0C081supersedes 87903-0C061i201308-201609
POWER MEMORY PACKAGE
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87906-0C010i200811-200904
main87906-0C050i200811-200904
main87906-0C060i200904-201609
main87906-0C070i200904-201108
sub87906-0C071
main87906-0C090i201108-201308
POWER MEMORY PACKAGE
main87906-0C091supersedes 87906-0C071i201308-201609
POWER MEMORY PACKAGE
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0C290-A0i200811-200904
SUPER WHITE 2,040
main87910-0C290-B0i200811-200904
SILVER ME.,1D6
main87910-0C290-B1i200811-200904
GRAY ME.,1F9
main87910-0C290-C0i200811-200904
BLACK,202
main87910-0C290-D0i200811-200904
DK RED MC,3Q7
main87910-0C290-E0i200811-200904
BEIGE M. M.,4Q2
main87910-0C290-E1i200811-200904
BRONZE M.M.,4T3
main87910-0C290-G0i200811-200904
DK.GREEN M.M.,6T8
main87910-0C290-J0i200811-200904
DK.BLUE MC.,8S6
main87910-0C291-A0i200904-201308
SUPER WHITE 2,040
sub87910-0C914
sub87915-0C901
main87910-0C291-B0i200904-201308
SILVER ME.,1D6
sub87910-0C914
sub87915-0C901
main87910-0C291-B1i200904-201008
GRAY ME.,1F9
sub87910-0C914
sub87915-0C901
main87910-0C291-B2i201008-201308
GRAY ME.,1G3
sub87910-0C914
sub87915-0C901
main87910-0C291-C0i200904-201308
BLACK,202
sub87910-0C914
sub87915-0C901
main87910-0C291-D0i200904-201108
DK RED MC,3Q7
sub87910-0C914
sub87915-0C901
main87910-0C291-D1i201108-201308
BLACKISH RED MC.,3R0
sub87910-0C914
sub87915-0C901
main87910-0C291-E1i200904-201308
BRONZE M.M.,4T3
sub87910-0C914
sub87915-0C901
main87910-0C291-E2i200904-201308
BEIGE ME.,4T8
sub87910-0C914
sub87915-0C901
main87910-0C291-G1i200904-201008
DK.GREEN MC.,6V4
sub87910-0C914
sub87915-0C901
main87910-0C291-J0i200904-201008
DK.BLUE MC.,8S6
sub87910-0C914
sub87915-0C901
main87910-0C302i200904-201308
PLATED
main87910-0C311supersedes 87910-0C301i200811-200904
PLATED,POWER MEMORY PACKAGE
main87910-0C312i200904-201108
PLATED,POWER MEMORY PACKAGE
main87910-0C330-A0i201308-201609
SUPER WHITE 2,040
sub87910-0C909
main87910-0C330-A1i201308-201609
WHITE PEARL CS.,070
sub87910-0C909
main87910-0C330-B0i201308-201609
SILVER ME.,1D6
sub87910-0C909
main87910-0C330-B1i201308-201609
GRAY ME.,1G3
sub87910-0C909
main87910-0C330-C0i201308-201609
BLACK,202
sub87910-0C909
main87910-0C330-D0i201308-201609
BLACKISH RED MC.,3R0
sub87910-0C909
main87910-0C330-E0i201308-201609
BRONZE M.M.,4T3
sub87910-0C909
main87910-0C330-E1i201308-201609
BEIGE ME.,4T8
sub87910-0C909
main87910-0C360i201108-201308
PLATED,POWER MEMORY PACKAGE
main87910-0C490supersedes 87910-0C480i201308-201609
PLATED,POWER MEMORY PACKAGE
87915COVER, OUTER MIRROR, RH
main87915-0C050i200904-201609
PLATED
main87915-0C060-A0i200904-201609
SUPER WHITE 2,040
main87915-0C060-A1i201308-201609
WHITE PEARL CS.,070
main87915-0C060-B0i200904-201609
SILVER ME.,1D6
main87915-0C060-B1i200904-201008
GRAY ME.,1F9
main87915-0C060-B2i201008-201609
GRAY ME.,1G3
main87915-0C060-C0i200904-201609
BLACK,202
main87915-0C060-D0i200904-201108
DK RED MC,3Q7
main87915-0C060-D2i201108-201609
BLACKISH RED MC.,3R0
main87915-0C060-E0i200904-201609
BRONZE M.M.,4T3
main87915-0C060-E1i200904-201609
BEIGE ME.,4T8
main87915-0C060-G0i200904-201008
DK.GREEN MC.,6V4
main87915-0C060-J0i200904-201008
DK.BLUE MC.,8S6
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0C260-A0i200811-200904
SUPER WHITE 2,040
sub87940-0C261
main87940-0C260-B0i200811-200904
SILVER ME.,1D6
sub87940-0C261
main87940-0C260-B1i200811-200904
GRAY ME.,1F9
sub87940-0C261
main87940-0C260-C0i200811-200904
BLACK,202
sub87940-0C261
main87940-0C260-D0i200811-200904
DK RED MC,3Q7
sub87940-0C261
main87940-0C260-E0i200811-200904
BEIGE M. M.,4Q2
sub87940-0C261
main87940-0C260-E1i200811-200904
BRONZE M.M.,4T3
sub87940-0C261
main87940-0C260-G0i200811-200904
DK.GREEN M.M.,6T8
sub87940-0C261
main87940-0C260-J0i200811-200904
DK.BLUE MC.,8S6
sub87940-0C261
main87940-0C301supersedes 87940-0C291i200811-200904
PLATED,POWER MEMORY PACKAGE
sub87940-0C360
main87940-0C311-A0i200904-201308
SUPER WHITE 2,040
sub87940-0C913
sub87945-0C901
main87940-0C311-B0i200904-201308
SILVER ME.,1D6
sub87940-0C913
sub87945-0C901
main87940-0C311-B1i200904-201008
GRAY ME.,1F9
sub87940-0C913
sub87945-0C901
main87940-0C311-B2i201008-201308
GRAY ME.,1G3
sub87940-0C913
sub87945-0C901
main87940-0C311-C0i200904-201308
BLACK,202
sub87940-0C913
sub87945-0C901
main87940-0C311-D0i200904-201108
DK RED MC,3Q7
sub87940-0C913
sub87945-0C901
main87940-0C311-D1i201108-201308
BLACKISH RED MC.,3R0
sub87940-0C913
sub87945-0C901
main87940-0C311-E0i200904-201308
BRONZE M.M.,4T3
sub87940-0C913
sub87945-0C901
main87940-0C311-E1i200904-201308
BEIGE ME.,4T8
sub87940-0C913
sub87945-0C901
main87940-0C311-G0i200904-201008
DK.GREEN MC.,6V4
sub87940-0C913
sub87945-0C901
main87940-0C311-J0i200904-201008
DK.BLUE MC.,8S6
sub87940-0C913
sub87945-0C901
main87940-0C321i200904-201308
PLATED
main87940-0C331i200904-201108
PLATED,POWER MEMORY PACKAGE
main87940-0C380i201108-201308
PLATED,POWER MEMORY PACKAGE
main87940-0C530-A0i201308-201609
SUPER WHITE 2,040
sub87940-0C910
main87940-0C530-A1i201308-201609
WHITE PEARL CS.,070
sub87940-0C910
main87940-0C530-B0i201308-201609
SILVER ME.,1D6
sub87940-0C910
main87940-0C530-B1i201308-201609
GRAY ME.,1G3
sub87940-0C910
main87940-0C530-C0i201308-201609
BLACK,202
sub87940-0C910
main87940-0C530-D0i201308-201609
BLACKISH RED MC.,3R0
sub87940-0C910
main87940-0C530-E0i201308-201609
BRONZE M.M.,4T3
sub87940-0C910
main87940-0C530-E1i201308-201609
BEIGE ME.,4T8
sub87940-0C910
main87940-0C550supersedes 87940-0C540i201308-201609
PLATED,POWER MEMORY PACKAGE
87945COVER, OUTER MIRROR, LH
main87945-0C030i200904-201609
PLATED
main87945-0C040-A0i200904-201609
SUPER WHITE 2,040
main87945-0C040-A1i201308-201609
WHITE PEARL CS.,070
main87945-0C040-B0i200904-201609
SILVER ME.,1D6
main87945-0C040-B1i200904-201008
GRAY ME.,1F9
main87945-0C040-B2i201008-201609
GRAY ME.,1G3
main87945-0C040-C0i200904-201609
BLACK,202
main87945-0C040-D0i200904-201108
DK RED MC,3Q7
main87945-0C040-D2i201108-201609
BLACKISH RED MC.,3R0
main87945-0C040-E0i200904-201609
BRONZE M.M.,4T3
main87945-0C040-E1i200904-201609
BEIGE ME.,4T8
main87945-0C040-G0i200904-201008
DK.GREEN MC.,6V4
main87945-0C040-J0i200904-201008
DK.BLUE MC.,8S6
9008018071
main90080-18071

10 parts on this diagram · 1 diagram in section
