Toyota SEQUOIA — METER

0001 1METER 0002 1CLOCK

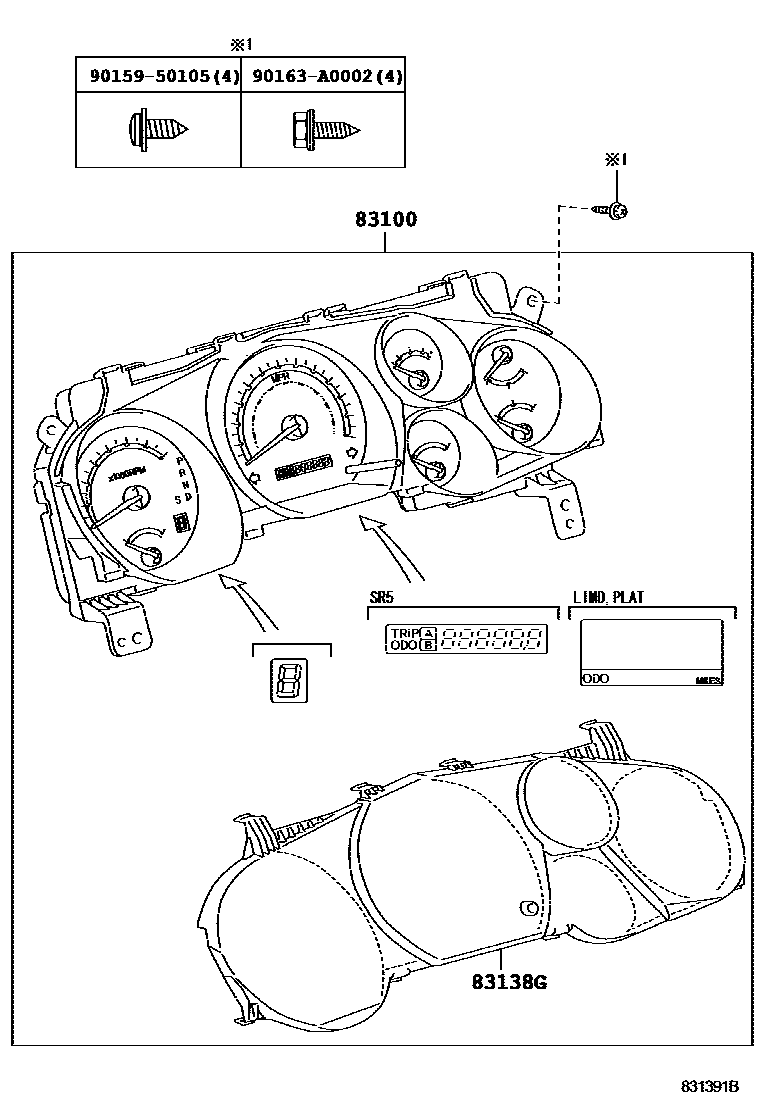

83100METER ASSY, COMBINATION

main83800-0CG20supersedes 83800-0CJ10iUSK60..LIMD200811-200904

main83800-0CG21iUSK6#..PLAT200911-201107

main83800-0CG22iUSK6#..PLAT201107-201408

main83800-0CG30supersedes 83800-0CJ00iUSK60..SR5200811-200904

main83800-0CJ01iUSK6#..SR5200911-201107

main83800-0CJ02iUSK6#..SR5201107-201408

main83800-0CJ11iUSK6#..LIMD200911-201107

main83800-0CJ12iUSK6#..LIMD201107-201408

main83800-0CP50iUSK6#..PLAT201408-201609

main83800-0CQ20iUSK6#..SR5201408-201609

main83800-0CQ30iUSK6#..LIMD201408-201609

83138GGLASS, COMBINATION METER

main83852-0C880iUSK6#..LIMD,PLAT200811-201609

main83852-0C890iUSK6#..SR5200811-201609

9015950105

main90159-50105

90163A0002

main90163-A0002

4 parts on this diagram · 2 diagrams in section
