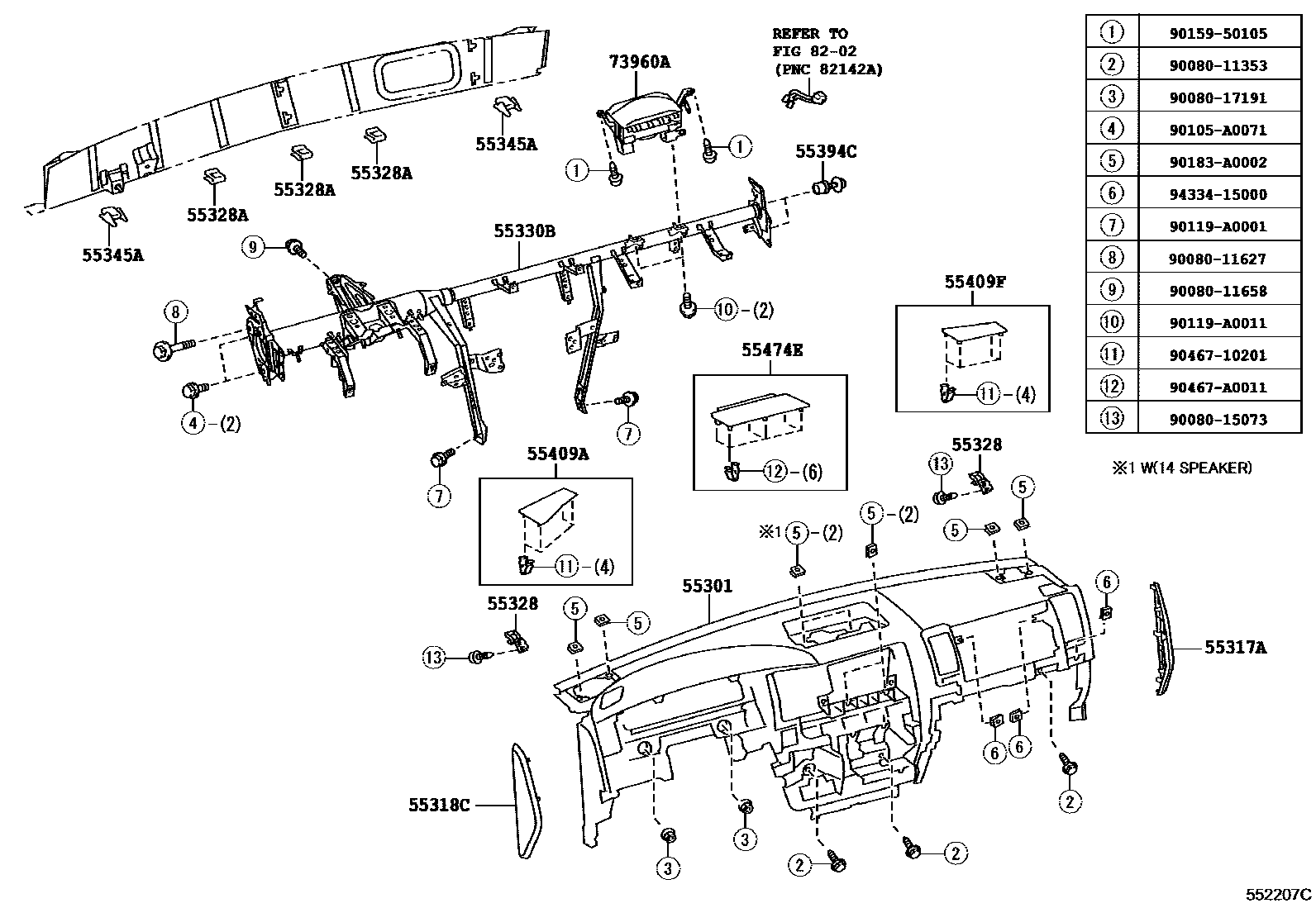

Toyota SEQUOIA — INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0C030-C0i201108-201203

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main55301-0C030-E0i200811-201108

DK. BROWN,TRIM4#

main55301-0C031-C0i201203-201204

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main55301-0C032-C0i201208-201612

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

55317APANEL, INSTRUMENT SIDE, RH

main55317-0C020-C0i200811-201106

BLACK,TRIM1#,2#,44; BLACK,TRIM1#,44

main55317-0C020-E0i200811-201106

DK. BROWN,TRIM44

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0C020-C0i200811-201106

BLACK,TRIM1#,2#,44; BLACK,TRIM1#,44

main55318-0C020-E0i200811-201106

DK. BROWN,TRIM44

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140×2i200811-201609

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-22060×3i200811-201609

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0C030i200811-200904

main55330-0C051i200904-201609

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-0C020×2i200811-201609

55394CBOLT, INSTRUMENT PANEL

main55394-51011×2i200811-201609

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-0C010-C0i201106-201609

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main55472-0C010-E0i200811-201106

DK. BROWN,TRIM44

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0C010-C0i200811-201106

BLACK,TRIM1#,2#,44; BLACK,TRIM1#,44

main55473-0C010-E0i200811-201106

DK. BROWN,TRIM44

55474EPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3

main55474-0C010-C0i200811-201106

BLACK,TRIM1#,2#,44; BLACK,TRIM1#,44

main55474-0C010-E0i200811-201106

DK. BROWN,TRIM44

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0C010i200811-200904

main73960-0C030i200904-201609

8202WIRING & CLAMP

→ Go to FIG 82-02

9008011353

main90080-11353

9008011627

main90080-11627

9008011658

main90080-11658

9008015073

main90080-15073

9008017191

main90080-17191

90105A0071

main90105-A0071

90119A0001

main90119-A0001

90119A0011

main90119-A0011

9015950105

main90159-50105

90183A0002

main90183-A0002

9046710201

main90467-10201

90467A0011

main90467-A0011

9433415000

main94334-15000

26 parts on this diagram · 7 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota SEQUOIA

This section contains 80 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota SEQUOIA. Key components include: DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT.
