Toyota SEQUOIA — HEATING & AIR CONDITIONING - COMPRESSOR

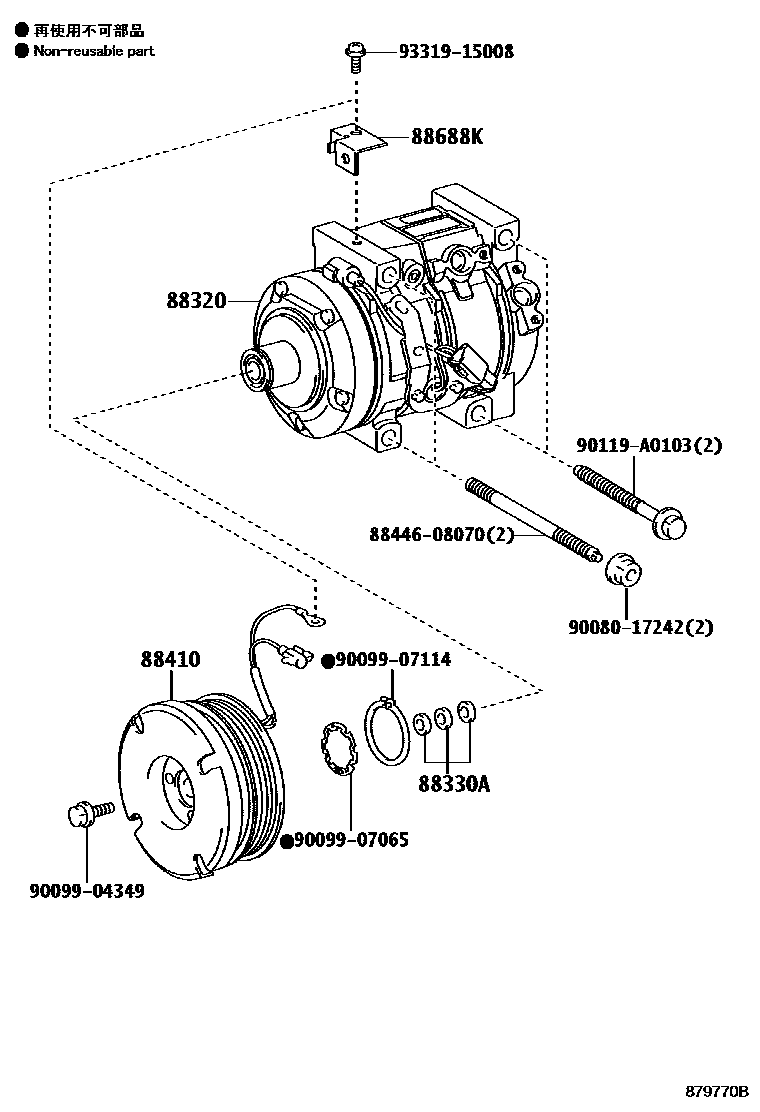

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-0C170i200811-201609

main88320-0C180i201008-201609

COOL BOX-WITH

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200811-201609

88410CLUTCH ASSY, MAGNET

main88410-0C120i201002-201609

main88410-6A090i200811-201002

88688KBRACKET, COOLER COMPRESSOR

main88688-32670i200811-201609

8844608070BOLT, IDLE PULLEY

main88446-08070

9008017242

main90080-17242

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

90119A0103

main90119-A0103

9331915008

main93319-15008

11 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota SEQUOIA

This section contains 11 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota SEQUOIA. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COOLER COMPRESSOR, BOLT, IDLE PULLEY.

Toyota SEQUOIA HEATING & AIR CONDITIONING - COMPRESSOR — Parts Diagram | EPC Data
