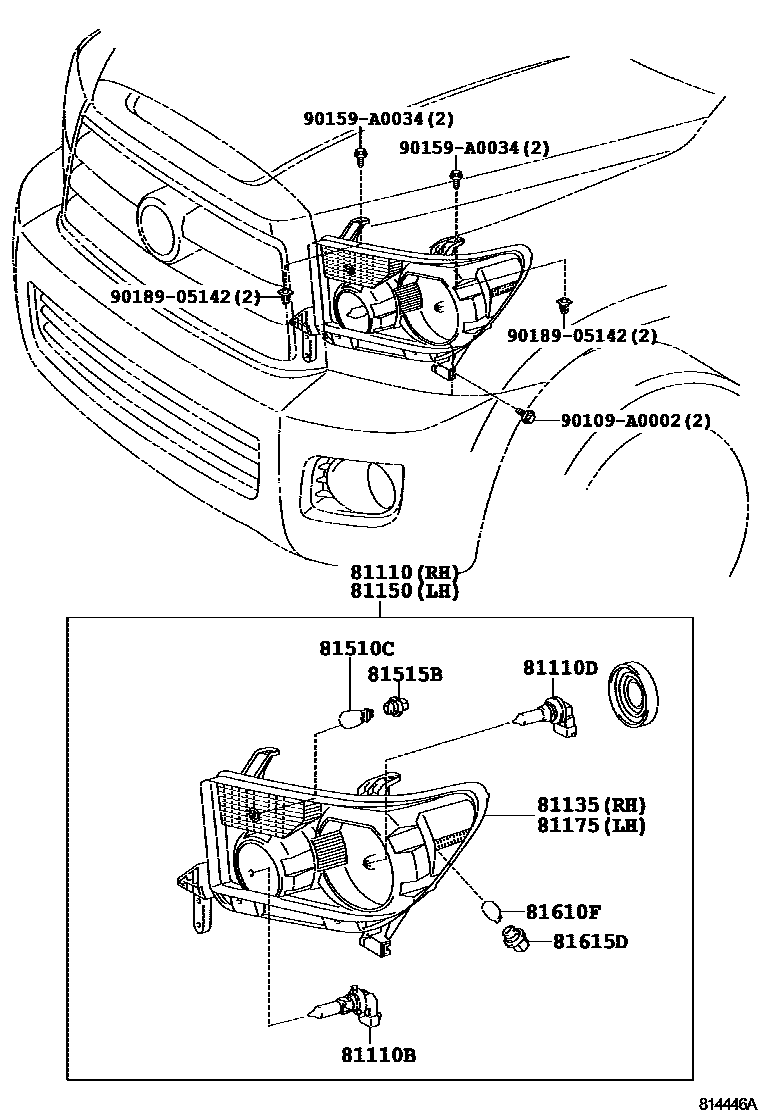

Toyota SEQUOIA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0C051i200811-201609

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i200811-201609

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-AD001i200811-201609

12V 55W

81135UNIT ASSY, HEADLAMP, RH

main81130-0C051i200811-201609

81150HEADLAMP ASSY, LH

main81150-0C051i200811-201609

81175UNIT ASSY, HEADLAMP, LH

main81170-0C051i200811-201609

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90084-98062×2i200811-201609

12V 27/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60060×2i200811-201609

81610FBULB(FOR CLEARANCE LAMP)

main90080-81059×2i200811-201609

12V 5.0W

81615DSOCKET, CLEARANCE LAMP

main99159-10228×2i200811-201609

90109A0002

main90109-A0002

90159A0034

main90159-A0034

9018905142

main90189-05142

13 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota SEQUOIA

This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota SEQUOIA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, HEADLAMP ASSY, LH.
