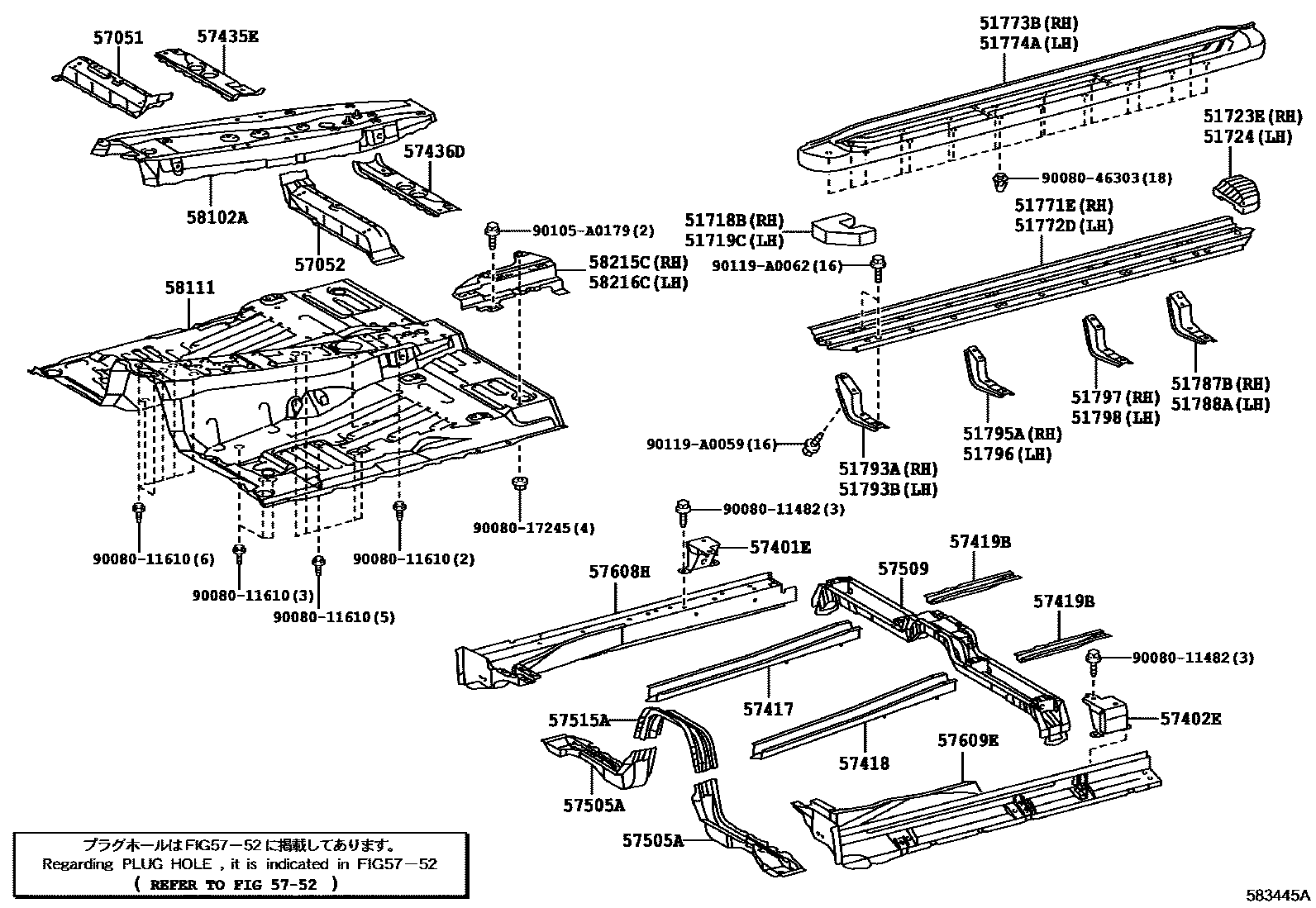

Toyota SEQUOIA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51718BPROTECTOR, STEP COVER, RH
51719CPROTECTOR, STEP COVER, LH
51723ESPACER, STEP ARM, RH
51724SPACER, STEP ARM, LH
51771EPLATE, STEP, RH
51772DPLATE, STEP, LH
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
51787BREINFORCEMENT, STEP COVER
51788AREINFORCEMENT, STEP COVER, LH
51793ABRACKET, SIDE STEP, NO.1 RH
51793BBRACKET, SIDE STEP, NO.1, LH
51795ABRACKET, SIDE STEP, NO.2 RH
51796BRACKET, SIDE STEP, NO.2 LH
51797BRACKET, SIDE STEP, NO.3 RH
51798BRACKET, SIDE STEP, NO.3 LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57401EMEMBER ASSY, FLOOR SIDE, RH
57402EMEMBER ASSY, FLOOR SIDE, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
RH
LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57515AREINFORCEMENT, FRONT FLOOR, CENTER
5752
57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
9008011482
main90080-11482
9008011610
main90080-11610
9008017245
main90080-17245
9008046303
main90080-46303
90105A0179
main90105-A0179
90119A0059
main90119-A0059
90119A0062
main90119-A0062
42 parts on this diagram · 1 diagram in section
