Toyota SEQUOIA — FRONT DOOR LOCK & HANDLE

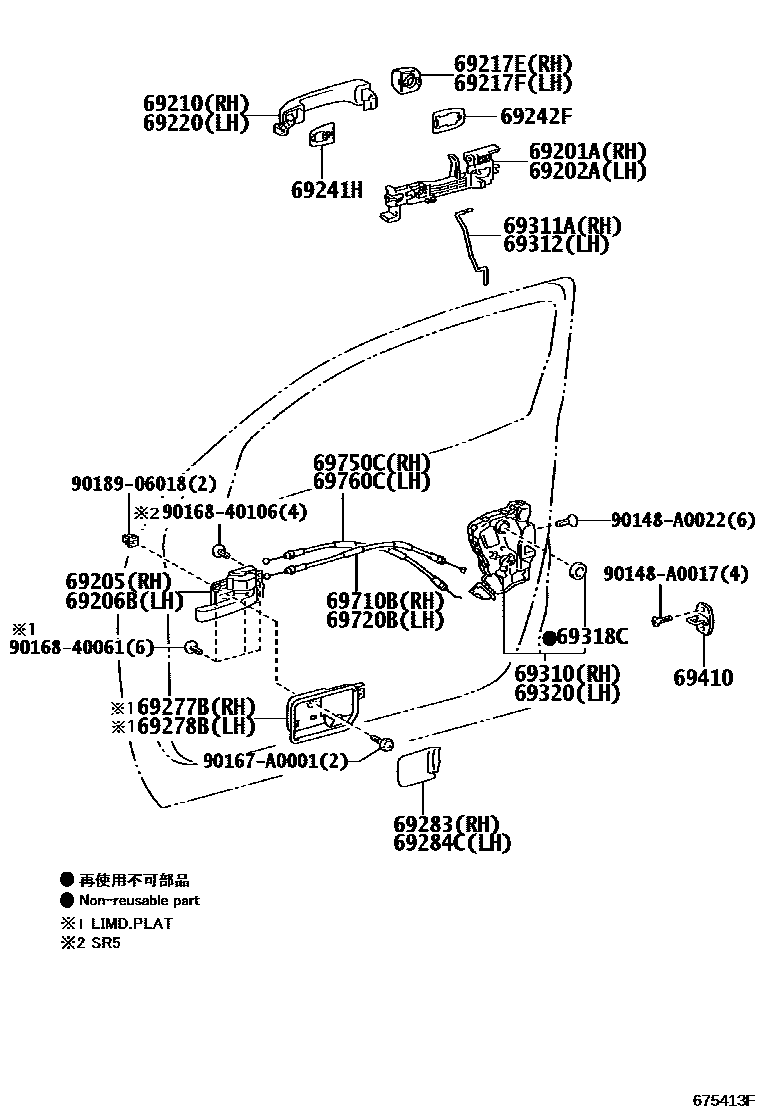

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0C010i200811-201609
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0C010i200811-201609
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-0C040i200811-201609
main69205-0C050i200811-201609
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0C040i200811-201609
main69206-0C050i200811-201609
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-0C020i200811-201609
PLATED
main69210-0C030-A0i200811-201609
SUPER WHITE 2,040
main69210-0C030-A2i201308-201609
WHITE PEARL CS.,070
main69210-0C030-B0i200811-201609
SILVER ME.,1D6
main69210-0C030-B1i200811-201008
GRAY ME.,1F9
main69210-0C030-B2i201008-201609
GRAY ME.,1G3
main69210-0C030-C0i200811-201609
BLACK,202
main69210-0C030-D0i200811-201106
DK RED MC,3Q7
main69210-0C030-D2i201106-201609
BLACKISH RED MC.,3R0
main69210-0C030-E0i200811-200904
BEIGE M. M.,4Q2
main69210-0C030-E1i200811-201609
BRONZE M.M.,4T3
main69210-0C030-E2i200904-201609
BEIGE ME.,4T8
main69210-0C030-G0i200811-200904
DK.GREEN M.M.,6T8
main69210-0C030-G1i200904-201008
DK.GREEN MC.,6V4
main69210-0C030-J0i200811-201008
DK.BLUE MC.,8S6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-0C040i200811-201609
*CR
main69217-0C060-A0i200811-201609
SUPER WHITE 2,040
main69217-0C060-A2i201308-201609
WHITE PEARL CS.,070
main69217-0C060-B0i200811-201609
SILVER ME.,1D6
main69217-0C060-B1i200811-201008
GRAY ME.,1F9
main69217-0C060-B2i201008-201609
GRAY ME.,1G3
main69217-0C060-C0i200811-201609
BLACK,202
main69217-0C060-D0i200811-201106
DK RED MC,3Q7
main69217-0C060-D2i201106-201609
BLACKISH RED MC.,3R0
main69217-0C060-E0i200811-200904
BEIGE M. M.,4Q2
main69217-0C060-E1i200811-201609
BRONZE M.M.,4T3
main69217-0C060-E2i200904-201609
BEIGE ME.,4T8
main69217-0C060-G0i200811-200904
DK.GREEN M.M.,6T8
main69217-0C060-G1i200904-201008
DK.GREEN MC.,6V4
main69217-0C060-J0i200811-201008
DK.BLUE MC.,8S6
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-0C020i200811-201609
*CR
main69217-0C050-A0i200811-201609
SUPER WHITE 2,040
main69217-0C050-A2i201308-201609
WHITE PEARL CS.,070
main69217-0C050-B0i200811-201609
SILVER ME.,1D6
main69217-0C050-B1i200811-201008
GRAY ME.,1F9
main69217-0C050-B2i201008-201609
GRAY ME.,1G3
main69217-0C050-C0i200811-201609
BLACK,202
main69217-0C050-D0i200811-201106
DK RED MC,3Q7
main69217-0C050-D2i201106-201609
BLACKISH RED MC.,3R0
main69217-0C050-E0i200811-200904
BEIGE M. M.,4Q2
main69217-0C050-E1i200811-201609
BRONZE M.M.,4T3
main69217-0C050-E2i200904-201609
BEIGE ME.,4T8
main69217-0C050-G0i200811-200904
DK.GREEN M.M.,6T8
main69217-0C050-G1i200904-201008
DK.GREEN MC.,6V4
main69217-0C050-J0i200811-201008
DK.BLUE MC.,8S6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-0C020i200811-201609
PLATED
main69210-0C030-A0i200811-201609
SUPER WHITE 2,040
main69210-0C030-A2i201308-201609
WHITE PEARL CS.,070
main69210-0C030-B0i200811-201609
SILVER ME.,1D6
main69210-0C030-B1i200811-201008
GRAY ME.,1F9
main69210-0C030-B2i201008-201609
GRAY ME.,1G3
main69210-0C030-C0i200811-201609
BLACK,202
main69210-0C030-D0i200811-201106
DK RED MC,3Q7
main69210-0C030-D2i201106-201609
BLACKISH RED MC.,3R0
main69210-0C030-E0i200811-200904
BEIGE M. M.,4Q2
main69210-0C030-E1i200811-201609
BRONZE M.M.,4T3
main69210-0C030-E2i200904-201609
BEIGE ME.,4T8
main69210-0C030-G0i200811-200904
DK.GREEN M.M.,6T8
main69210-0C030-G1i200904-201008
DK.GREEN MC.,6V4
main69210-0C030-J0i200811-201008
DK.BLUE MC.,8S6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-0C010×2i200811-201609
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-0C010×2i200811-201609
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-0C020-C0i200811-201609
BLACK
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-0C040-C0supersedes 69278-0C020-C0i200811-201609
POWER MEMORY PACKAGE,BLACK
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0C010-C0i200811-201609
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-0C010-C0i200811-201609
BLACK
69310LOCK ASSY, FRONT DOOR, RH
main69030-0C070i201202-201609
main69030-42221i200811-201202
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-0C030i200811-201609
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0C030i200811-201609
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i200811-201609
69320LOCK ASSY, FRONT DOOR, LH
main69040-0C060i201202-201609
main69040-42241i200811-201202
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-AA030×2i200811-201609
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0C030i200811-201408
main69710-0C050i201408-201609
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0C030i200811-201408
main69710-0C050i201408-201609
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-0C030i200811-201609
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-0C030i200811-201609
90148A0017
main90148-A0017
90148A0022
main90148-A0022
90167A0001
main90167-A0001
9016840061
main90168-40061
9016840106
main90168-40106
9018906018
main90189-06018

30 parts on this diagram · 1 diagram in section
