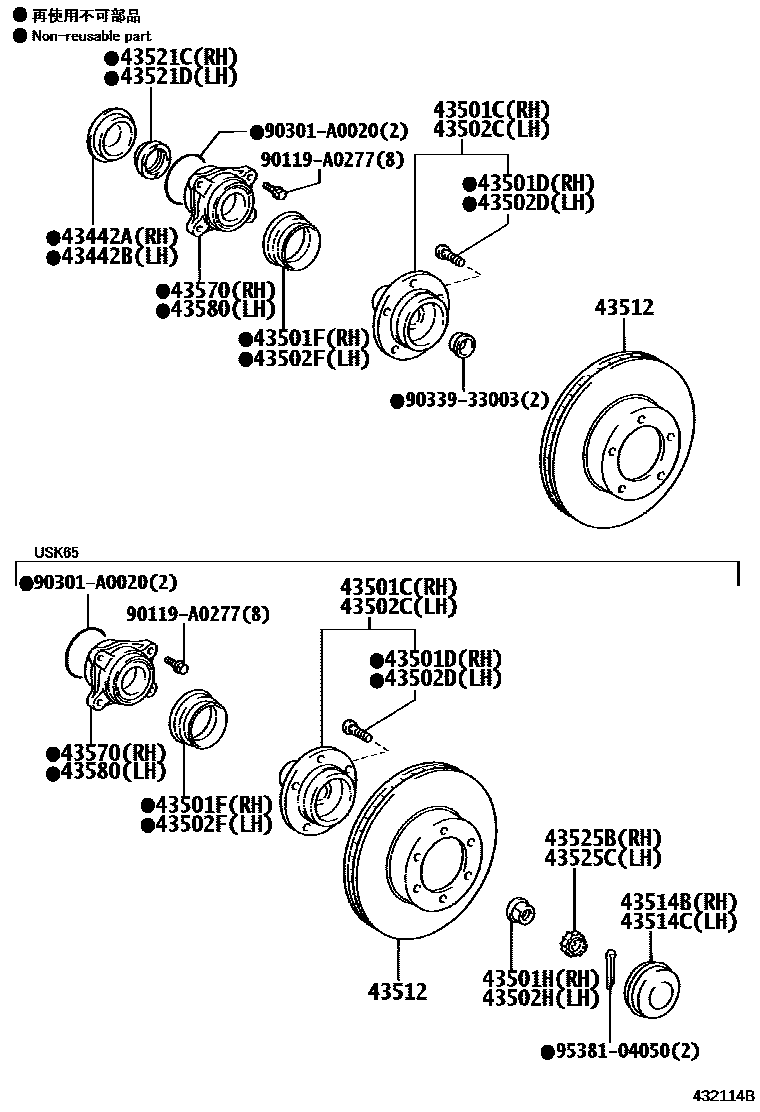

Toyota SEQUOIA — FRONT AXLE HUB

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0C010iUSK60200811-201609

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0C010iUSK60200811-201609

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0C021iUSK60201002-201609

main43502-0C031iUSK65201002-201609

main43502-34050iUSK60200910-201002

main43502-34060iUSK65200911-201002

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×5iUSK6#200811-201609

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-A0002iUSK6#200811-201609

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-32007iUSK65200911-201609

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0C021iUSK60201002-201609

main43502-0C031iUSK65201002-201609

main43502-34050iUSK60200910-201002

main43502-34060iUSK65200911-201002

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×5iUSK6#200811-201609

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-A0002iUSK6#200811-201609

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-32007iUSK65200911-201609

43512DISC, FRONT

main43512-0C020×2iUSK6#200811-201609

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-34020iUSK65200911-201609

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-34020iUSK65200911-201609

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-0C010iUSK60200811-201609

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-0C010iUSK60200811-201609

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-0C010iUSK65200911-201609

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-0C010iUSK65200911-201609

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-0C010iUSK6#200811-201609

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-0C010iUSK6#200811-201609

90119A0277

main90119-A0277

90301A0020

main90301-A0020

9033933003

main90339-33003

9538104050

main95381-04050

23 parts on this diagram · 1 diagram in section
