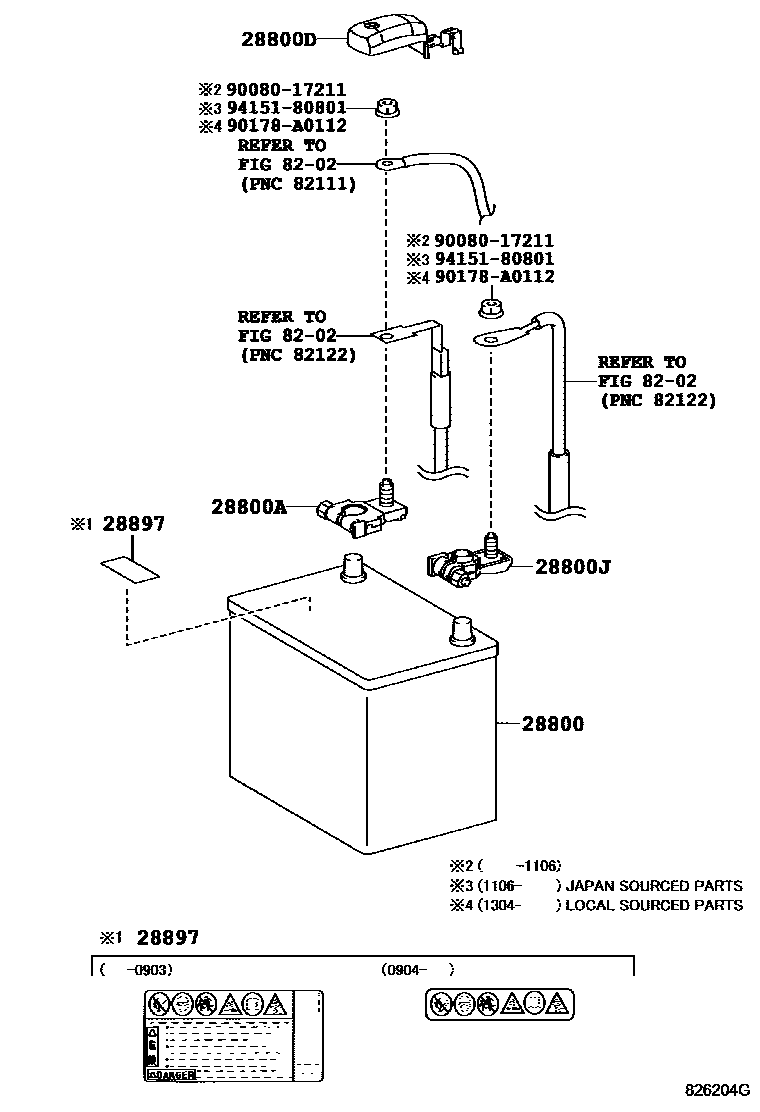

Toyota SEQUOIA — BATTERY & BATTERY CABLE

28800BATTERY

main28800-0F021i201608-201609

105D31L

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i200811-200911

main90982-05061i200912-201609

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0C060i200811-201609

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i200811-201609

28897PLATE, BATTERY CAUTION

main28897-0P010i200904-201609

main28897-50020i200811-200903

8202WIRING & CLAMP

→ Go to FIG 82-02

9008017211

main90080-17211

90178A0112

main90178-A0112

9415180801

main94151-80801

9 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota SEQUOIA

This section contains 9 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota SEQUOIA. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, PLATE, BATTERY CAUTION.
