Toyota SCION XD — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-28020i200706-201407

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200706-201407

ANGLE 0

main85381-12310×2i200706-201407

ANGLE -2

main85381-12320×2i200706-201407

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200706-201407

85319DPACKING, FRONT WASHER

main85319-33230i200706-201407

85330JAR ASSY, WINDSHIELD WASHER

main85315-52290i200706-201407

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i200706-201407

85336JPROTECTOR, WASHER JAR

main85336-60300i200706-201407

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200706-201407

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-50110i200707-201407

main85378-12480i200706-200707

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200706-201407

L=1450(*H,L=850)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200706-200707

L=1450(*H,L=490)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×6i200706-201407

L=1450(*H,L=325)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410i200707-201407

85389BPROTECTOR, WINDSHIELD WASHER

main85389-22660i200707-201407

main85389-52420i200706-200707

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i200706-201407

827111E150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E150

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

8538752410CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-52410

8538852410CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-52410

9011906767

main90119-06767

9046907011

main90469-07011

22 parts on this diagram · 1 diagram in section

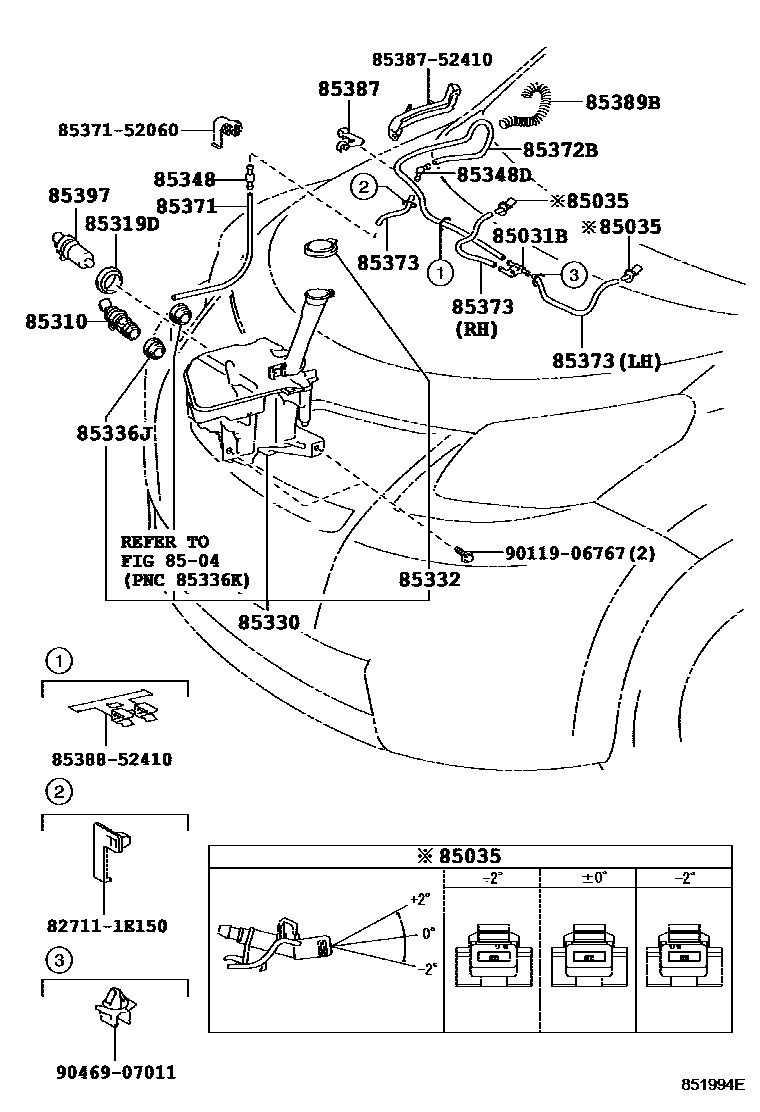

WINDSHIELD WASHER for Toyota SCION XD

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SCION XD. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER.
