Toyota SCION XD — PARTIAL ENGINE ASSEMBLY

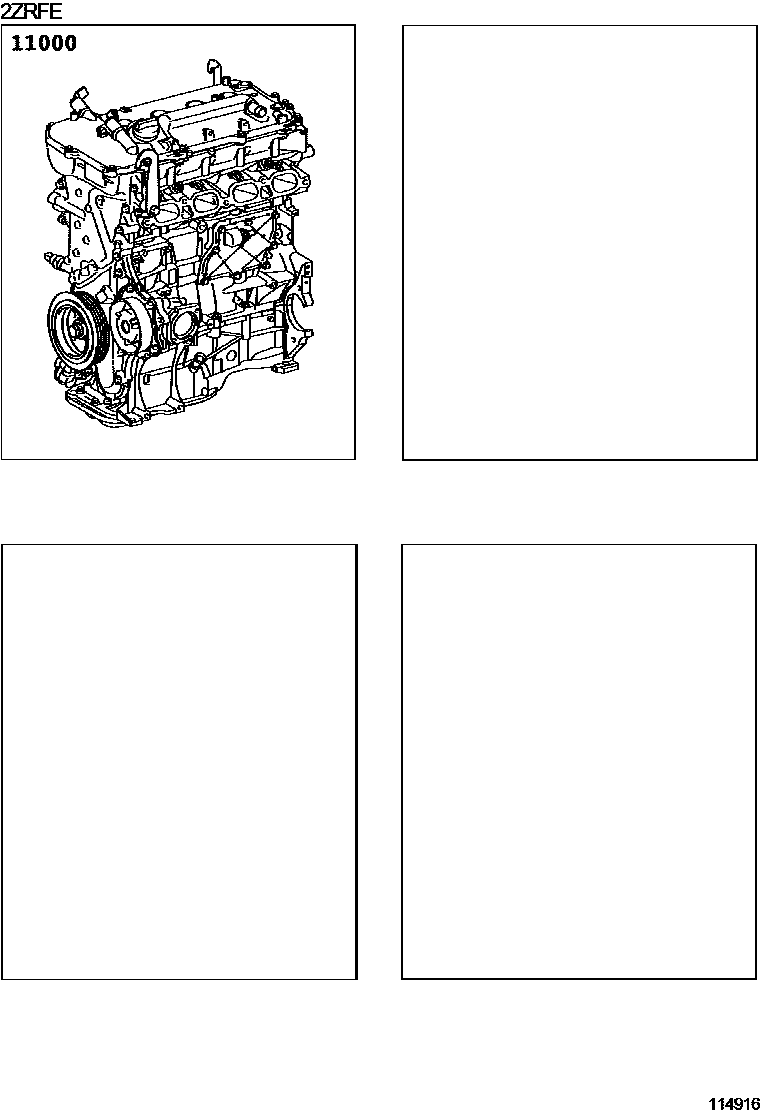

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-37320i200706-201010

main19000-37321i201010-201407

1 parts on this diagram · 1 diagram in section
