Toyota SCION XD — METER

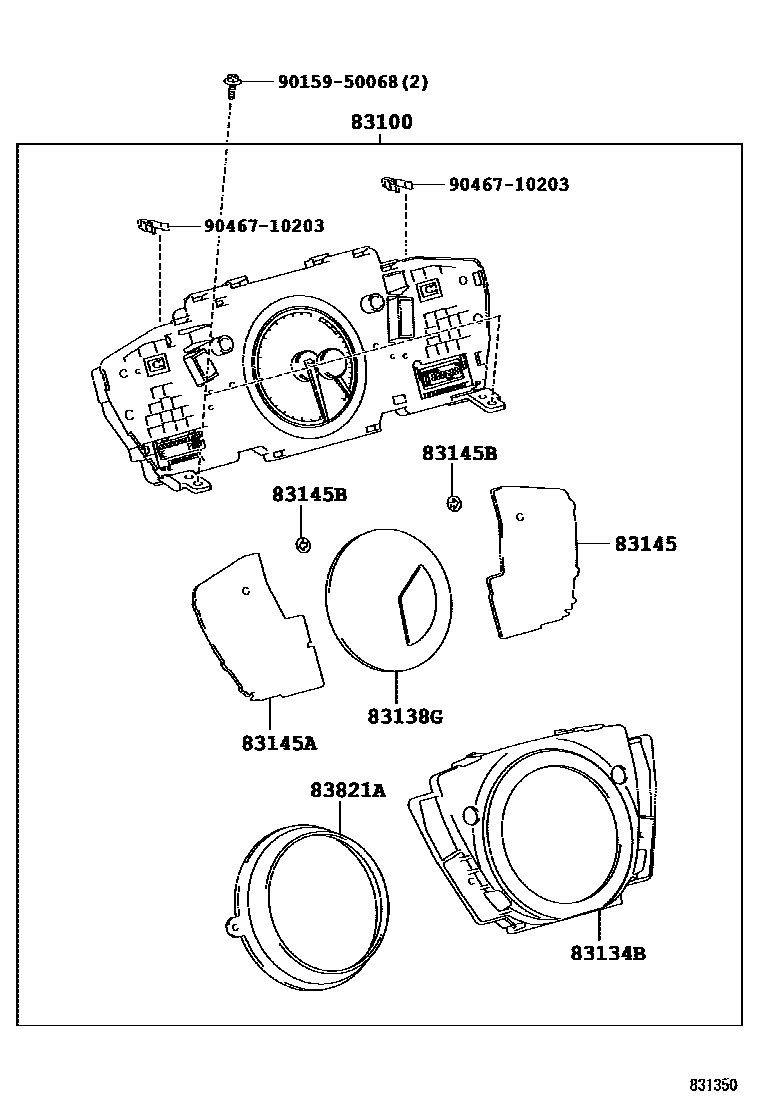

Parts diagram

83100METER ASSY, COMBINATION

main83800-52N10i200706-200907

main83800-52X10i201208-201407

main83800-52X20i201208-201407

main83800-52Z10i200907-201008

main83800-52Z11i201008-201208

main83800-5CC50i201008-201107

main83800-5CC51i201108-201208

83134BCOVER, COMBINATION METER, NO.2

main83821-52Z11i201008-201407

main83822-52M90i200706-201008

83138GGLASS, COMBINATION METER

main83852-52M90i200706-201008

main83852-52M91i201008-201407

83145LENS, METER, NO.1

main83831-52N10i200706-200907

main83831-52Z10i200907-201008

main83831-52Z11i201008-201407

main83831-5CC50i201008-201407

83145ALENS, METER, NO.2

main83831-5CC51i201108-201407

main83832-52N10i200706-201008

main83832-52Z11i201008-201407

main83832-5CC50i201008-201108

83145BLENS, METER, NO.3

main83833-52M90×2i200706-201407

83821ACOVER, COMBINATION METER, NO.1

main83821-52M90i200706-201407

9015950068

main90159-50068

9046710203

main90467-10203

9 parts on this diagram · 1 diagram in section

METER for Toyota SCION XD

This section contains 9 genuine Toyota parts for the METER system of the Toyota SCION XD. Key components include: METER ASSY, COMBINATION, COVER, COMBINATION METER, NO.2, GLASS, COMBINATION METER, LENS, METER, NO.1, LENS, METER, NO.2.
