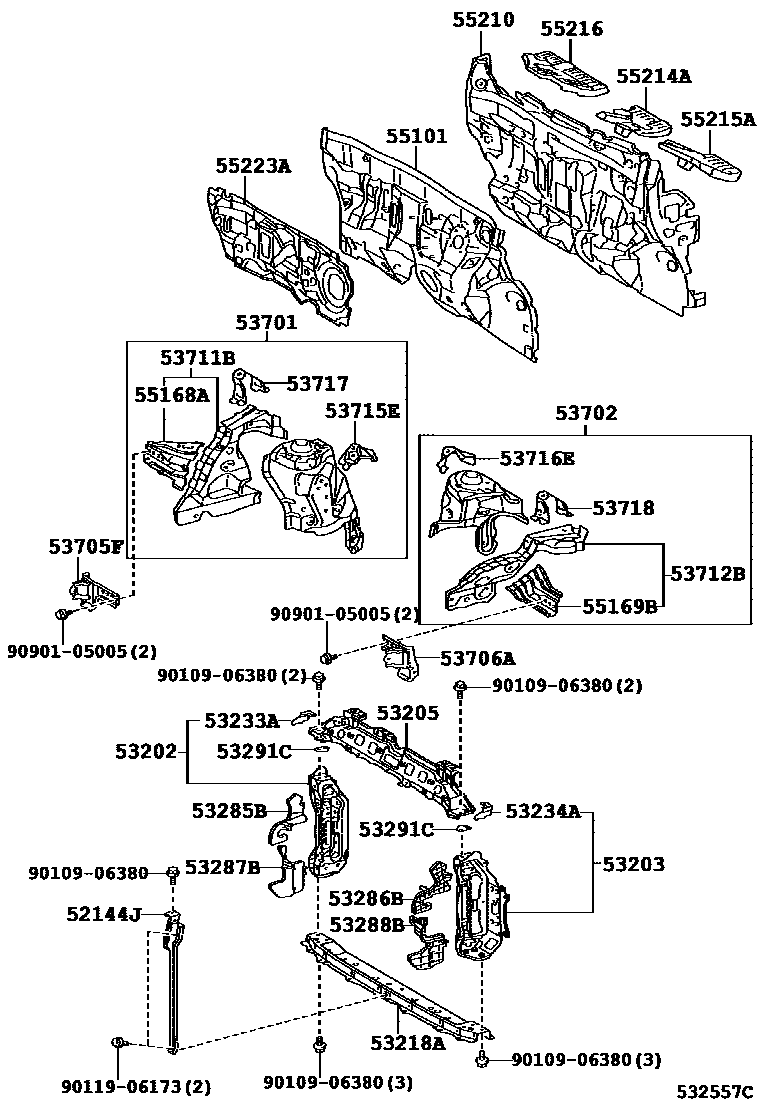

Toyota SCION XD — FRONT FENDER APRON & DASH PANEL

52144JSTAY, FRONT BUMPER, CENTER

main52085-52020i200706-201407

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52905i200706-201010

main53202-52910i201010-201407

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52903i200706-201010

main53203-52908i201010-201407

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52090i200706-201407

53218ASUPPORT, RADIATOR, LOWER

main53028-52070i200706-201407

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52030i200706-201407

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52040i200706-201407

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52270i200706-201407

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52210i200706-201407

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52070i200706-201407

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52070i200706-201407

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-52070×2i200706-201407

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52150i200706-201407

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52150i200706-201407

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-52030i200706-201407

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-52030i200706-201407

53711BAPRON, FRONT FENDER, FRONT RH

main53707-52030i200706-201108

main53707-52060i201108-201407

53712BAPRON, FRONT FENDER, FRONT LH

main53708-52030i200706-201108

main53708-52060i201108-201407

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030i200706-201407

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030i200706-201407

53717PLATE, FENDER APRON, RH

main53717-52080i200706-201407

53718PLATE, FENDER APRON, LH

main53718-52080i200706-201407

55101PANEL SUB-ASSY, DASH

main55101-52490i200706-201407

main55101-52500i200706-201407

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130i200706-201407

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130i200706-201407

55210INSULATOR ASSY, DASH PANEL

main55210-52250i200706-201407

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-52140i200706-201407

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-52110i200706-201407

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-52021i200706-201407

55223AINSULATOR, DASH PANEL, OUTER

main55223-52090i200706-200806

main55223-52110i200807-201407

9010906380

main90109-06380

9011906173

main90119-06173

9090105005

main90901-05005

33 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota SCION XD

This section contains 33 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SCION XD. Key components include: STAY, FRONT BUMPER, CENTER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT, RADIATOR, LOWER.
