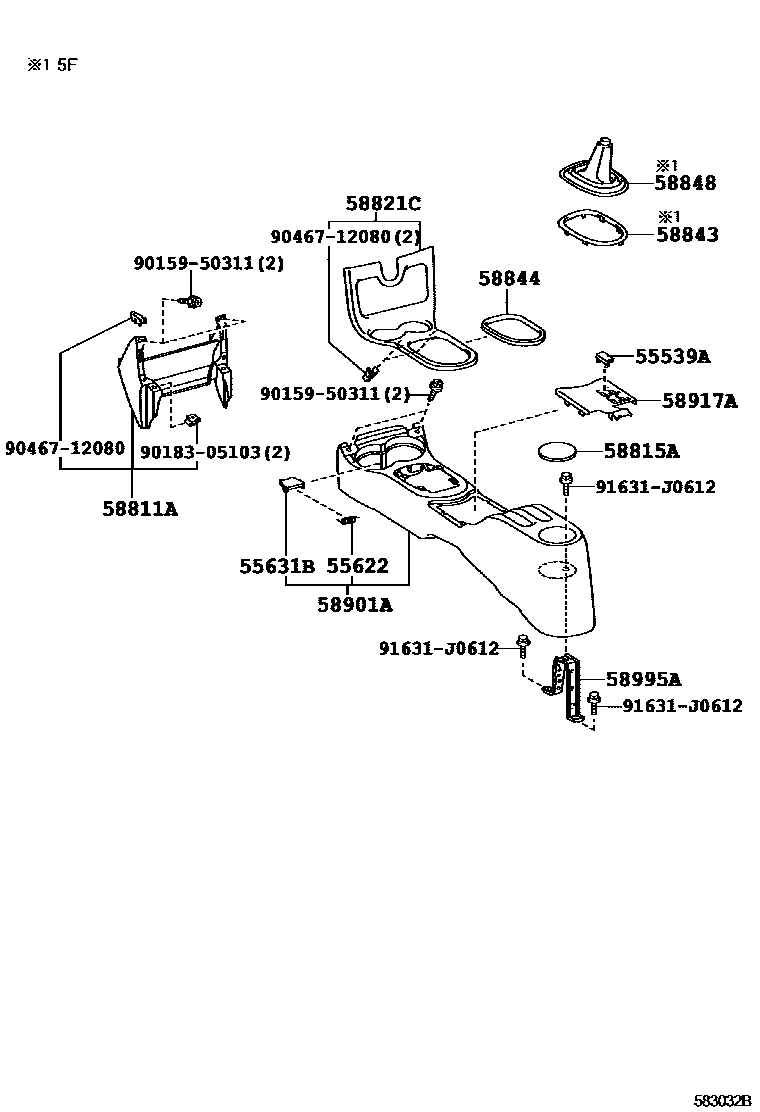

Toyota SCION XD — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52070-B0i200706-200907

VEHICLE STABILITY CONT-WITH PUMP UP BA,DK.GRAY,TRIM1#

main55539-52070-B0i200706-201112

DK.GRAY,TRIM1#

main55539-52070-C0i201112-201407

BLACK,TRIM1#

55622SPRING, INSTR PANEL CUP HOLDER, NO.1

main55622-52040i200706-201407

55631BLOCK, INSTRUMENT PANEL CUP HOLDER, NO.1

main55631-52040-B0i200706-201407

DK.GRAY,TRIM1#

58811ABOX, CONSOLE, FRONT

main58811-52020-B0i200706-201208

DK.GRAY,TRIM1#

main58811-52060-B0i201208-201407

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-52050i200706-201407

58821CPANEL, CONSOLE, UPPER

main58821-52050-C0i200706-201008

BLACK,TRIM1#

main58821-52051-B1i201008-201009

GRAY,TRIM1#

main58821-52071-B1i201010-201208

GRAY,TRIM1#

main58821-52140-B0i201208-201407

GRAY,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-52030i200706-201407

58844BEZEL, CONSOLE BOX

main58844-52010i200706-201407

58848COVER, SHIFT LEVER HOLE

main58848-52030i200706-201407

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-52070-B0i200706-201407

DK.GRAY,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-52070-B0i200706-201407

DK.GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58902-52020i200706-201407

9015950311

main90159-50311

9018305103

main90183-05103

9046712080

main90467-12080

91631J0612

main91631-J0612

16 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota SCION XD

This section contains 16 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SCION XD. Key components include: COVER, SPARE SWITCH HOLE, SPRING, INSTR PANEL CUP HOLDER, NO.1, LOCK, INSTRUMENT PANEL CUP HOLDER, NO.1, BOX, CONSOLE, FRONT, CARPET, CONSOLE BOX.
