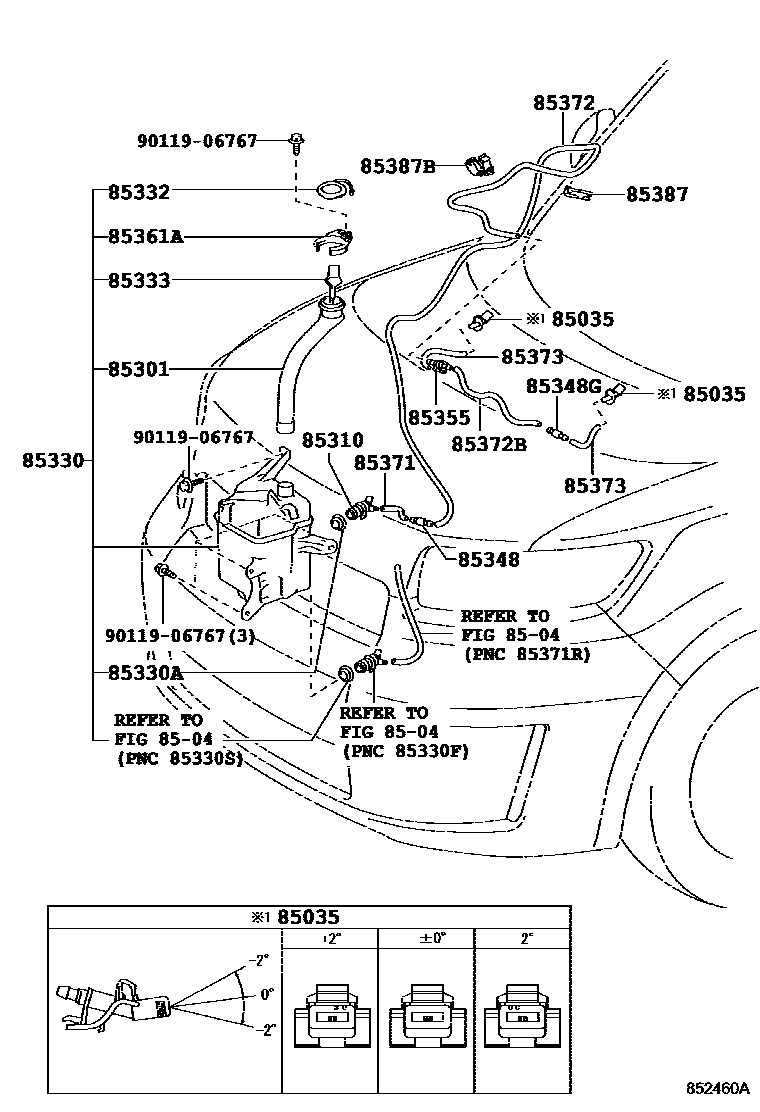

Toyota SCION XB — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200703-201003

ANGLE 0

main85381-12310×2i201003

ANGLE -2

main85381-12320×2i201003

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85319-12630i200703-201003

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200703-201003

85330JAR ASSY, WINDSHIELD WASHER

main85315-12560i201003

main85315-12630i200703-201003

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201003

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200703-201003

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020i200703-201003

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i201003

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200703-201003

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200703-201003

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-48060i200703-201003

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200703-201003

L=1450(*H,L=170)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803i200703-201003

L=2000

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299i200703-201003

L=1000(*H,L=520)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200703-201003

L=1450(*H,L=135)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12840i200703-201003

85387BCLAMP, WASHER, NO.3

main82711-1E350i200703-200710

main82711-3F230i200710-201003

9011906767

main90119-06767

19 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota SCION XB

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SCION XB. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER.
