Toyota SCION XB — SWITCH & RELAY & COMPUTER

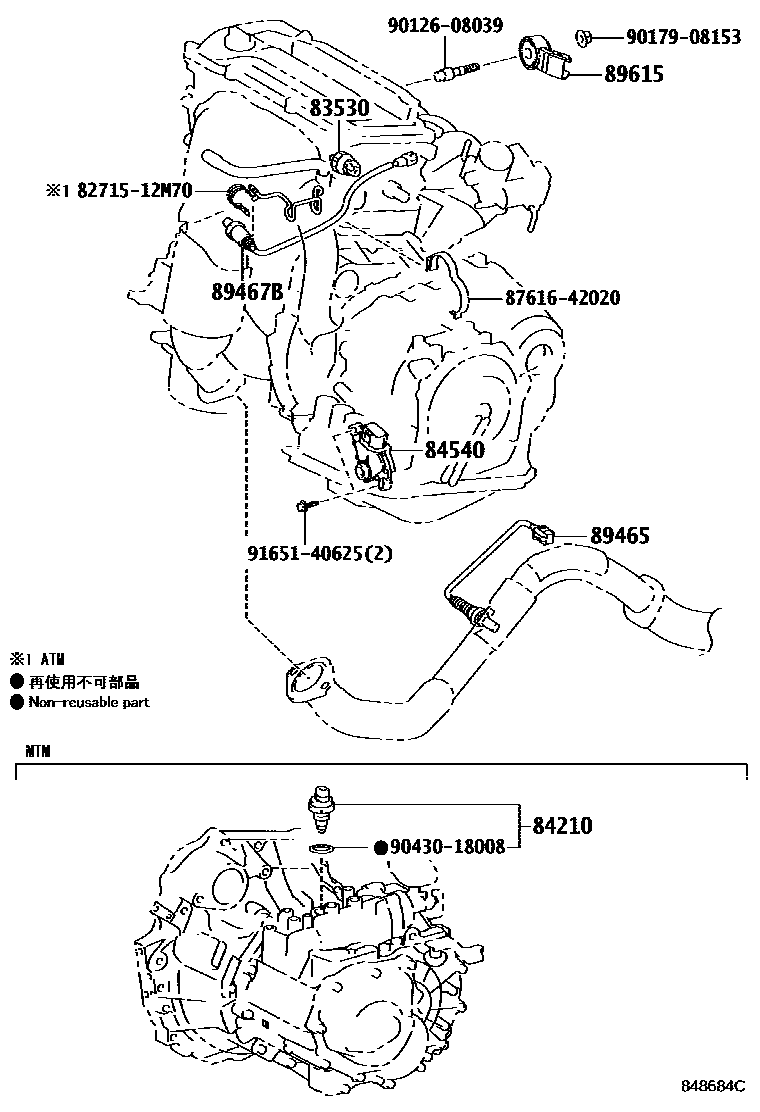

Parts diagram

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i200703-201003

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i200703-201003

main84210-52050i201206-201512

84540SWITCH ASSY, NEUTRAL START

main84540-42010i201310-201512

*346

main84540-48010i200703-201003

89465SENSOR, OXYGEN

main89465-12A00i200703-201003

89467BSENSOR, AIR FUEL RATIO

main89467-12070i200703-201003

main89467-72010i201003-201512

89615SENSOR, KNOCK CONTROL

main89615-20090i200703-201003

8271512M70BRACKET,WIRING HARNESS CLAMP

main82715-12M70

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

12 parts on this diagram · 6 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota SCION XB

This section contains 97 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota SCION XB. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, STEERING COLUMN & SHAFT, STEERING WHEEL, FLASHER ASSY, TURN SIGNAL.
