Toyota SCION XB — SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
YAZAKI
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
89465SENSOR, OXYGEN
89465ASENSOR, OXYGEN NO.2
89615SENSOR, KNOCK CONTROL
DENSO
TOYOTA
9012608039
main90126-08039
9017908153
main90179-08153
9043018008
main90430-18008
9165140620
main91651-40620

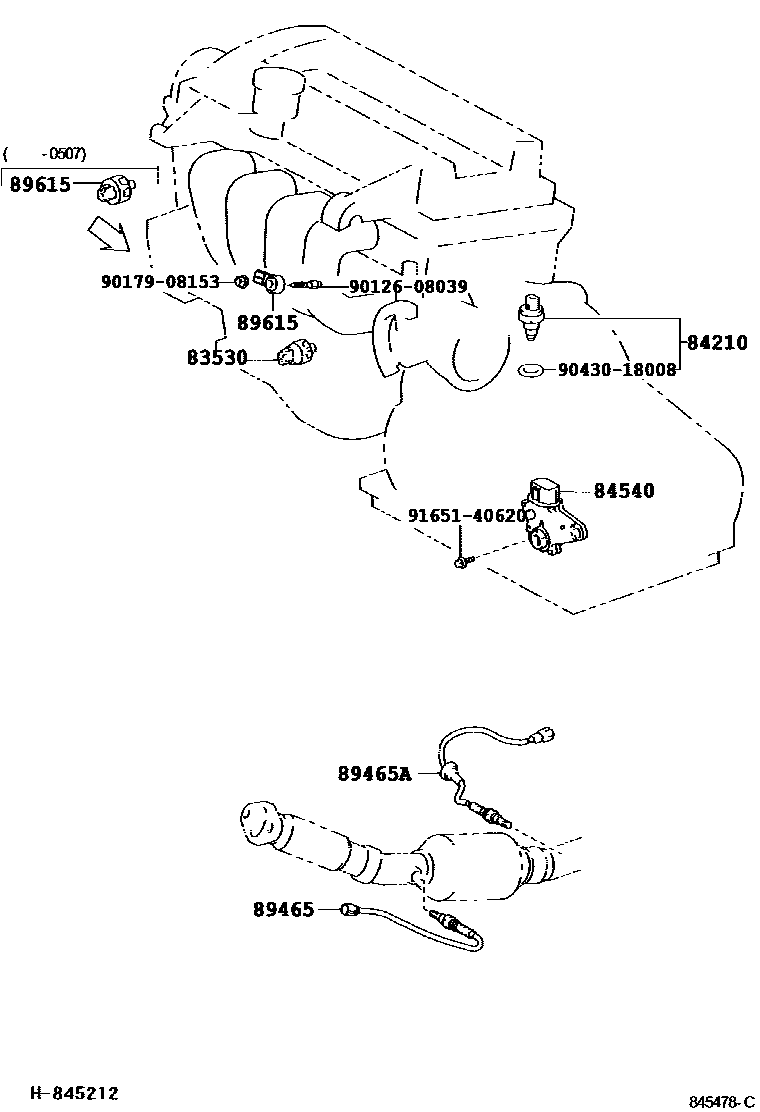

10 parts on this diagram · 7 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota SCION XB
This section contains 88 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota SCION XB. Key components include: RELAY ASSY, STARTER, COVER, SHIFT LOCK UNIT, STEERING COLUMN & SHAFT, REAR MOULDING, FLASHER ASSY, TURN SIGNAL.
