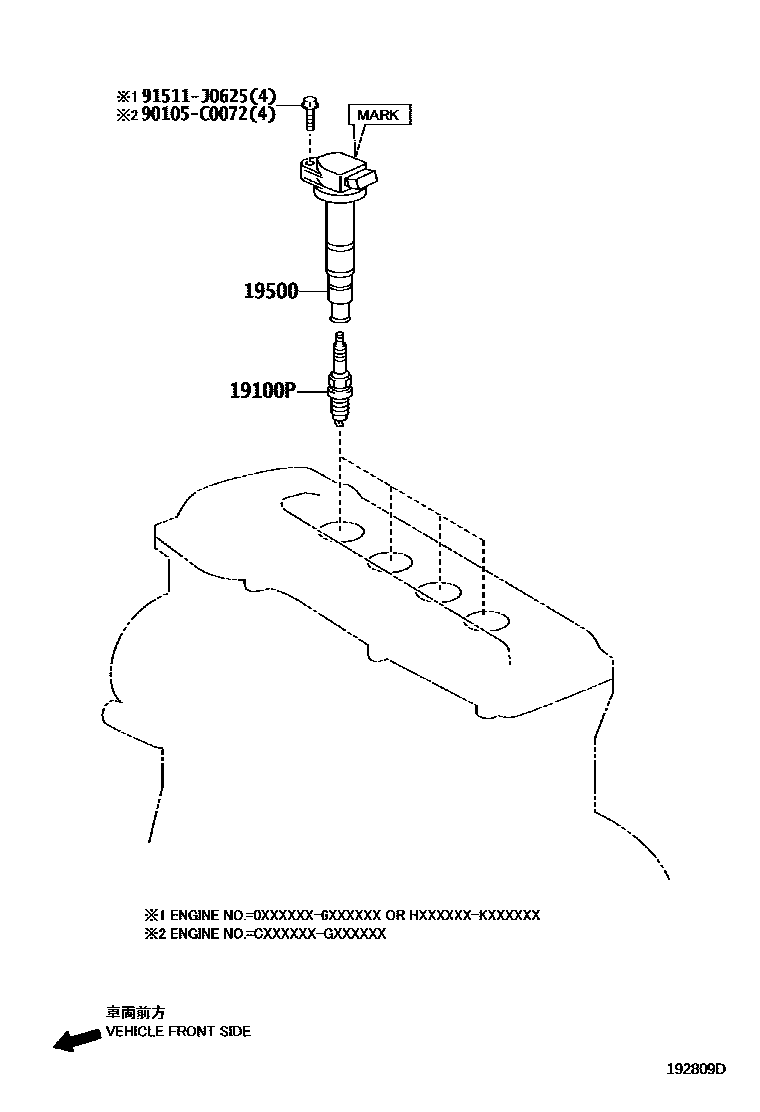

Toyota SCION XB — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01237×4supersedes 90919-T1007i200703-201003

SK20R11,(J)

main90919-T1007×4i200703-201003

SK20R11,(L)

main90919-01240×4supersedes 90919-T1007i201206

SK16R11,*194; SK16R11,2AZ-FE,*195

main90919-C1002×4supersedes 90919-T1007i201206

SK16R11,2AZ-FE,*194

19500COIL ASSY, IGNITION

main90919-C2002×4i200903-201003

MARK C200* OR T200*

main90919-C2006×4i200703-200903

MARK 90919-C2002

main90919-T2005×4i200703-200903

MARK 90919-T2005

main90919-02244×4supersedes 90919-C2006i201011-201204

2AZ-FE,*195,MARK90919-02244

main90919-02266×4supersedes 90919-C2006i201011

2AZ-FE,*195,MARK90919-02266

90105C0072

main90105-C0072

91511J0625

main91511-J0625

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota SCION XB

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota SCION XB. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
