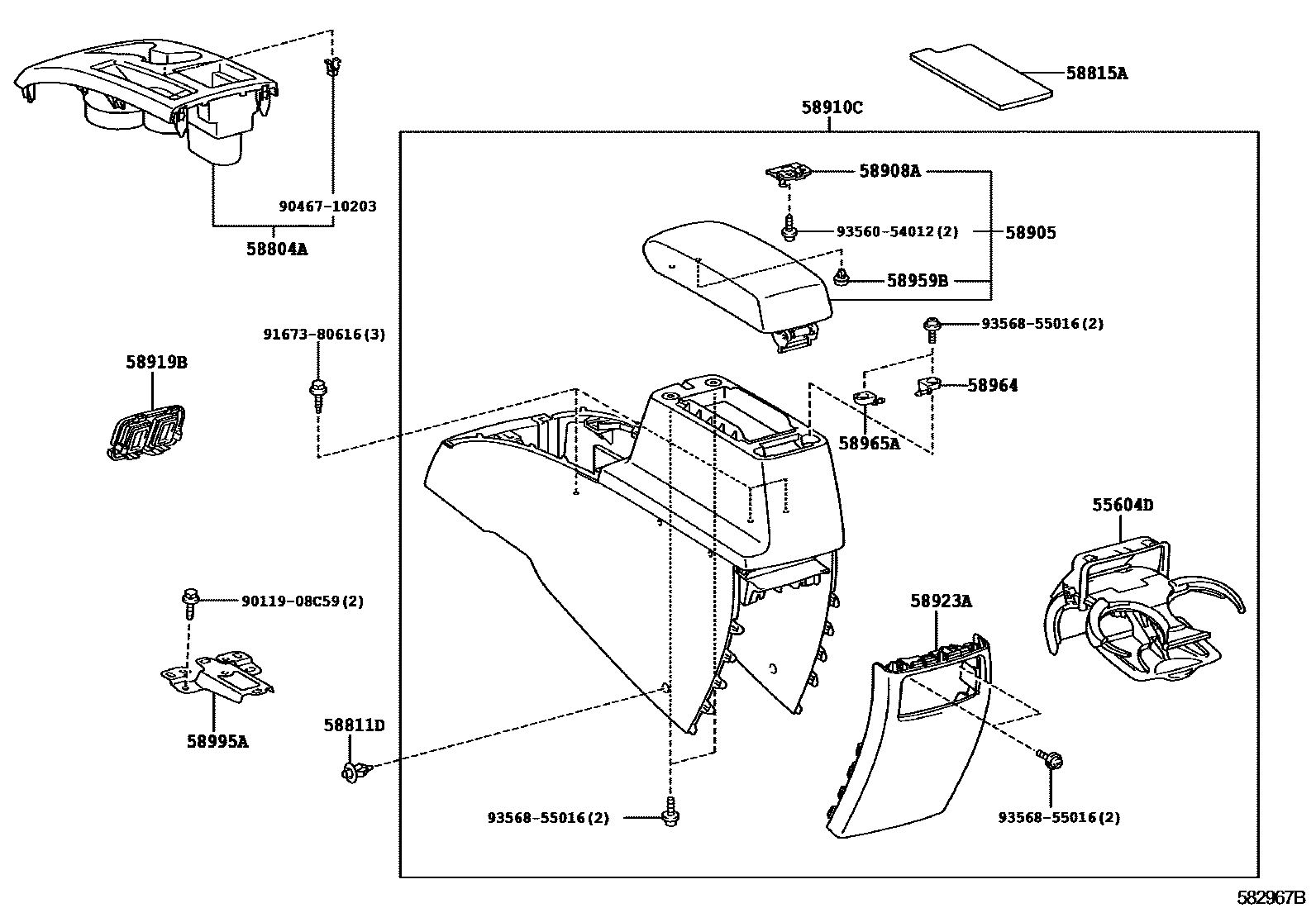

Toyota SCION XB — CONSOLE BOX & BRACKET

55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-12070-B0i200703-201003

DK.GRAY,TRIM1#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12080-B0i200703-201003

DK.GRAY,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07076-B7×2i200703-201003

DK.GRAY

main90467-07076-C0×2i201108-201512

BLACK

58815ACARPET, CONSOLE BOX

main58815-12160i200703-201003

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12700-B0i200703-201003

DK.GRAY,TRIM1#

main58905-12820-B1i201003-201207

DARK GRAY,TRIM1#

main58905-12821-B1i201208-201512

DARK GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12050i201006-201105

main58908-12080i201105

main58908-32021i201003-201005

main58908-33030i200703-201003

58910CBOX ASSY, CONSOLE, REAR

main58910-12560-B0i200703-201003

DK.GRAY,TRIM1#

main58910-12680-B0i201108-201512

DK.GRAY,TRIM1#

main58910-12820-B0i201003-201107

DK.GRAY,TRIM1#

58919BPLATE, CONSOLE BOX

main58919-12020-B0i200703-201003

DK.GRAY,TRIM1#

58923APANEL, CONSOLE REAR END

main58923-12080-B0i200703-201003

DK.GRAY,TRIM1#

main58923-12120-B0i201003-201512

DK.GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i200703-201003

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20040i200703-200803

main58964-20041i200804-201003

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20050i200703-200803

main58965-20051i200804-201003

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12110i200703-201003

9011908C59

main90119-08C59

9046710203

main90467-10203

9167380616

main91673-80616

9356054012

main93560-54012

9356855016

main93568-55016

18 parts on this diagram · 3 diagrams in section

CONSOLE BOX & BRACKET for Toyota SCION XB

This section contains 23 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SCION XB. Key components include: HOLDER SUB-ASSY, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, CLIP(FOR CONSOLE BOX), CARPET, CONSOLE BOX, POCKET, CONSOLE BOX.
