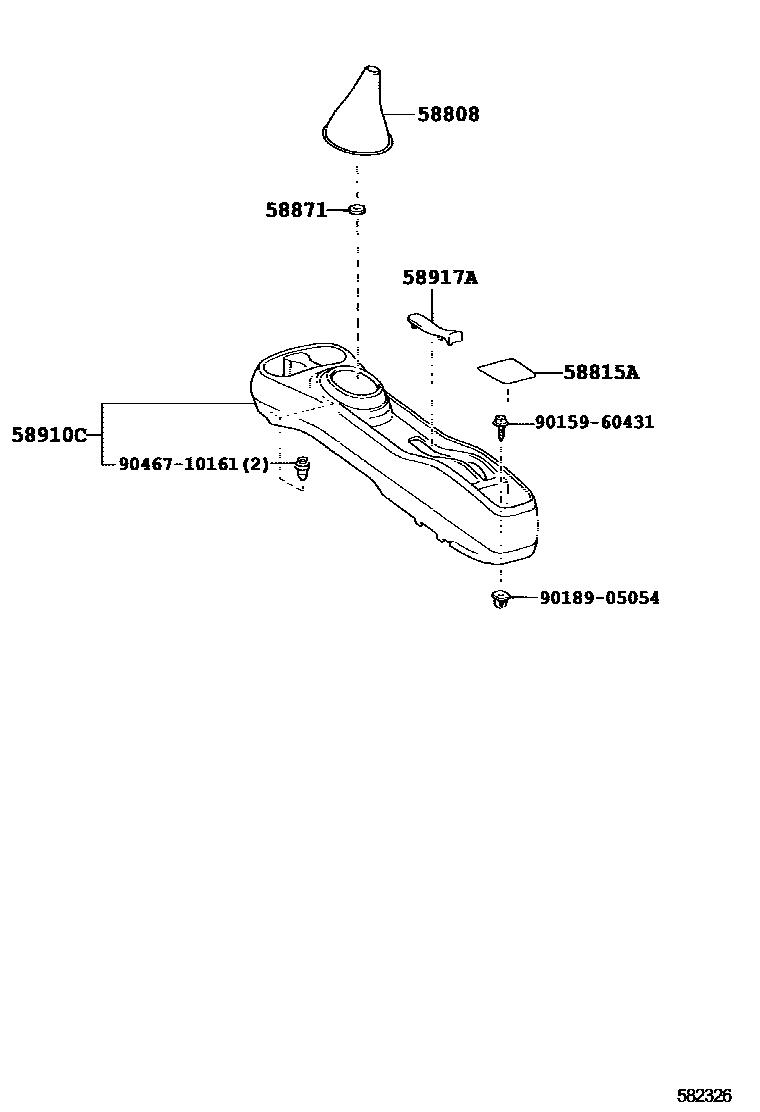

Toyota SCION XB — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52050-B0i200304-200612

DK.GRAY,TRIM9#

58815ACARPET, CONSOLE BOX

main58815-52020i200304

58871CUSHION, CONSOLE BOX

main58871-20060i200304

58910CBOX ASSY, CONSOLE, REAR

main58910-52010-B0i200304-200507

DK.GRAY,TRIM9#

main58910-52070-B0i200507-200612

DK.GRAY,TRIM9#

58917ACOVER, CONSOLE BOX, REAR

main58917-52030-B0i200304-200507

DK.GRAY,TRIM9#

main58917-52060-B0i200507-200612

DK.GRAY,TRIM9#

9015960431

main90159-60431

9018905054

main90189-05054

9046710161

main90467-10161

8 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota SCION XB

This section contains 10 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SCION XB. Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, CUSHION, CONSOLE BOX, BOX ASSY, CONSOLE, REAR.
