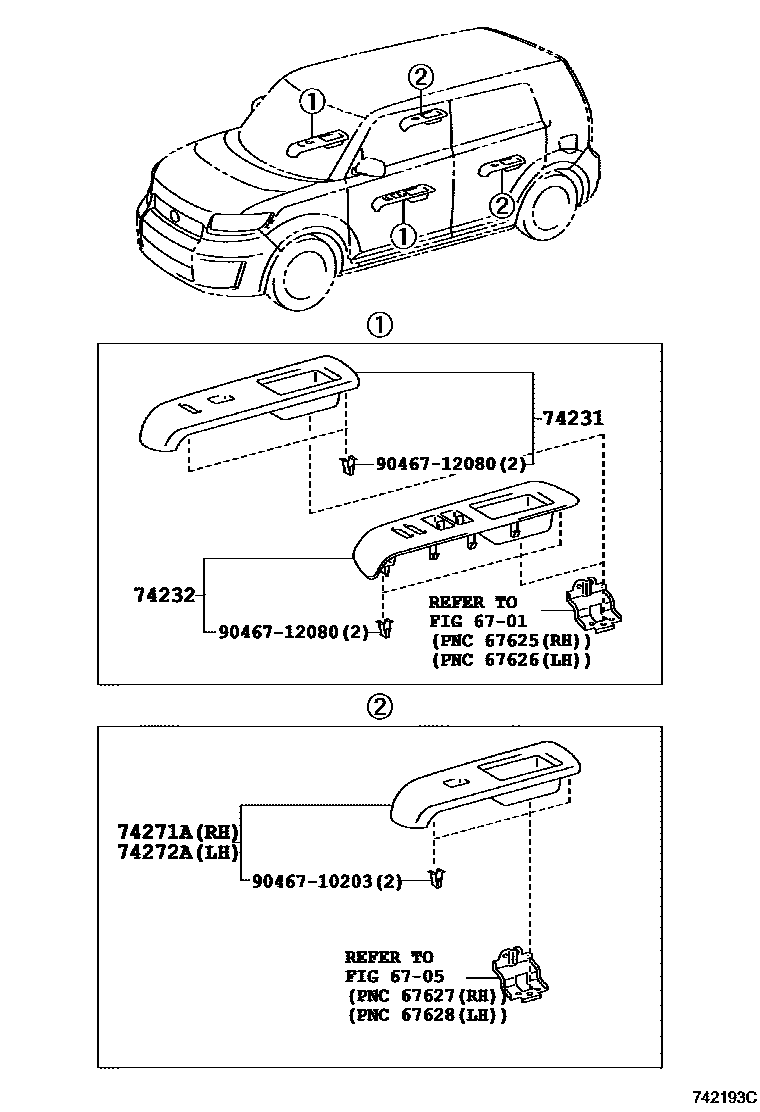

Toyota SCION XB — ARMREST & VISOR

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12A60-B0i200703-201003

DK.GRAY,TRIM1#

main74231-12E50-B0i201301-201512

DK.GRAY,TRIM1#

main74231-12A80i200712-200802

SPECIAL EDITION

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12750-B0i200703-201003

DK.GRAY,TRIM1#

main74232-12C20-B0i201301-201512

DK.GRAY,TRIM1#

main74232-12770i200712-200802

SPECIAL EDITION

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12310-B0i201003-201512

DK.GRAY,TRIM1#

main74271-12340i200712-200802

SPECIAL EDITION

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12310-B0i201003-201512

DK.GRAY,TRIM1#

main74272-12340i200712-200802

SPECIAL EDITION

9046710203

main90467-10203

9046712080

main90467-12080

8 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota SCION XB

This section contains 16 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SCION XB. Key components include: FRONT DOOR PANEL & GLASS, REAR DOOR PANEL & GLASS, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
