Toyota SCION XB — ACCELERATOR LINK

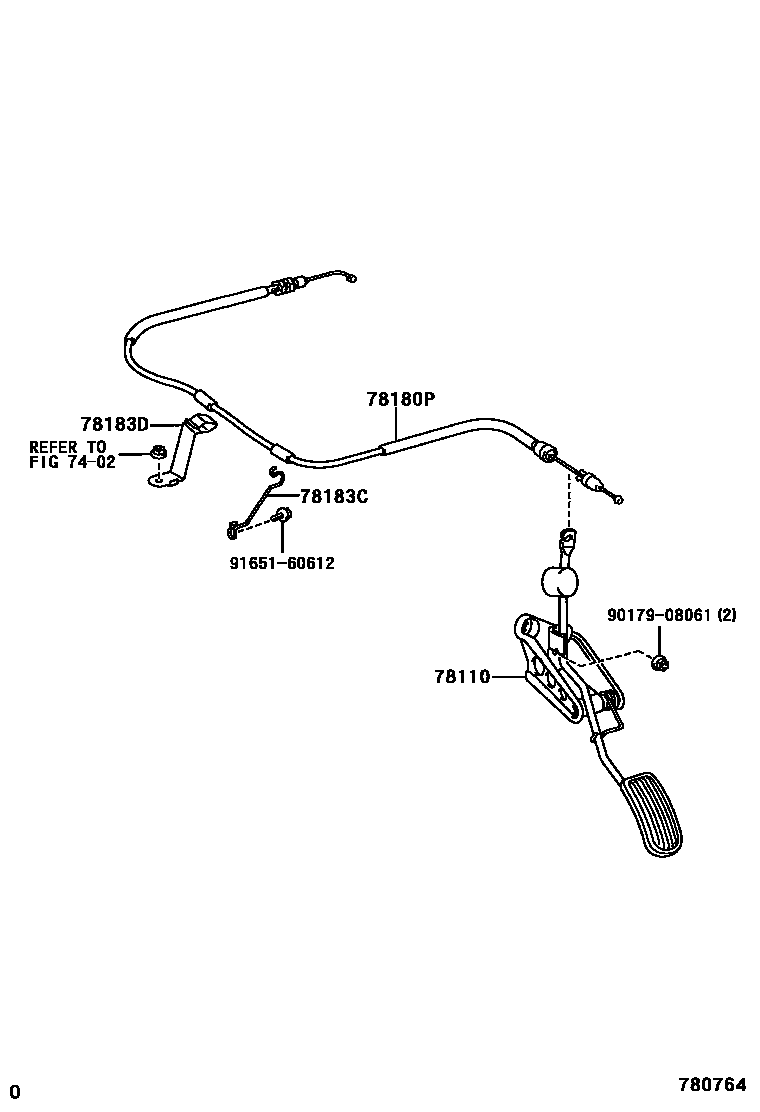

Parts diagram

7402BATTERY CARRIER

→ Go to FIG 74-02

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52060i200304

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52010i200304

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52140i200304

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-52120i200304

9017908061

main90179-08061

9165160612

main91651-60612

7 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota SCION XB

This section contains 7 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota SCION XB. Key components include: BATTERY CARRIER, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL, CLAMP, ACCELERATOR CONTROL CABLE.
