Toyota SCION XA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1IGNITION & COMBINATION SWITCH0007 1DOOR,ROOF,FLOOR & LUGGAGE

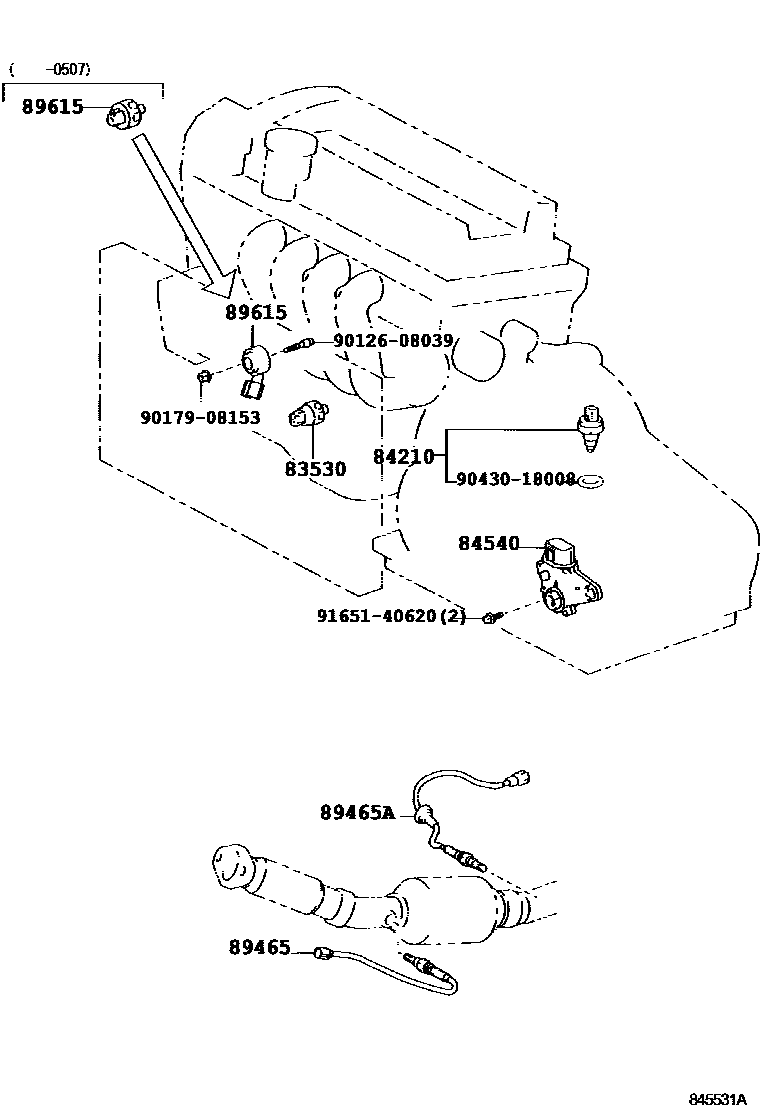

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP61200304-200507

DENSO

main83530-60020iNCP61200507

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNCP61..5F200304-200507

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP61..4FC200507-200612

main84540-52050iNCP61..4FC200304-200507

89465SENSOR, OXYGEN

main89465-52190iNCP61200507

89465ASENSOR, OXYGEN NO.2

main89465-52200iNCP61200304-200507

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP61200507

DENSO

main89615-52030iNCP61200304-200507

DENSO

main89615-52040iNCP61200304-200309

TOYOTA

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9165140620

main91651-40620

10 parts on this diagram · 7 diagrams in section
