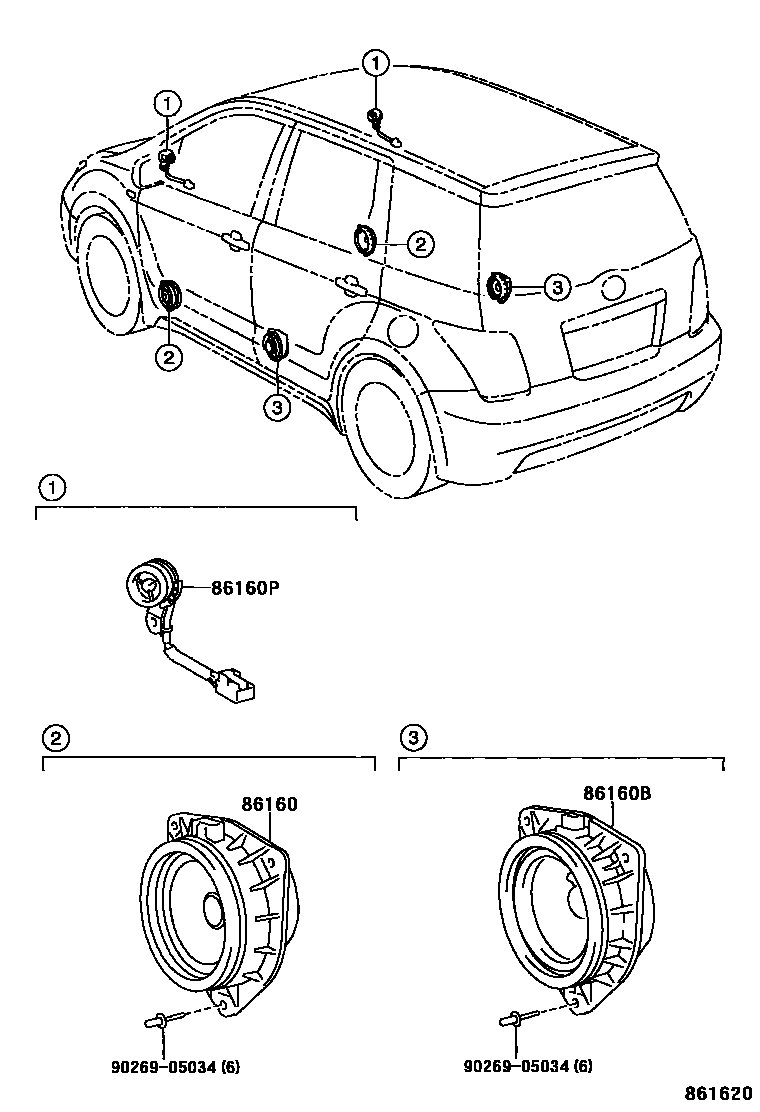

Toyota SCION XA — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-33620×2i200304-200507

86160BSPEAKER ASSY, REAR

main86160-13080×2i200507

main86160-2B570×2i200304-200507

86160PSPEAKER ASSY, FRONT NO.2

main86160-52120i200304-200507

main86160-52130i200304-200507

main86160-52250i200507

main86160-52260i200507

9026905034

main90269-05034

4 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SCION XA

This section contains 4 genuine Toyota parts for the SPEAKER system of the Toyota SCION XA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
