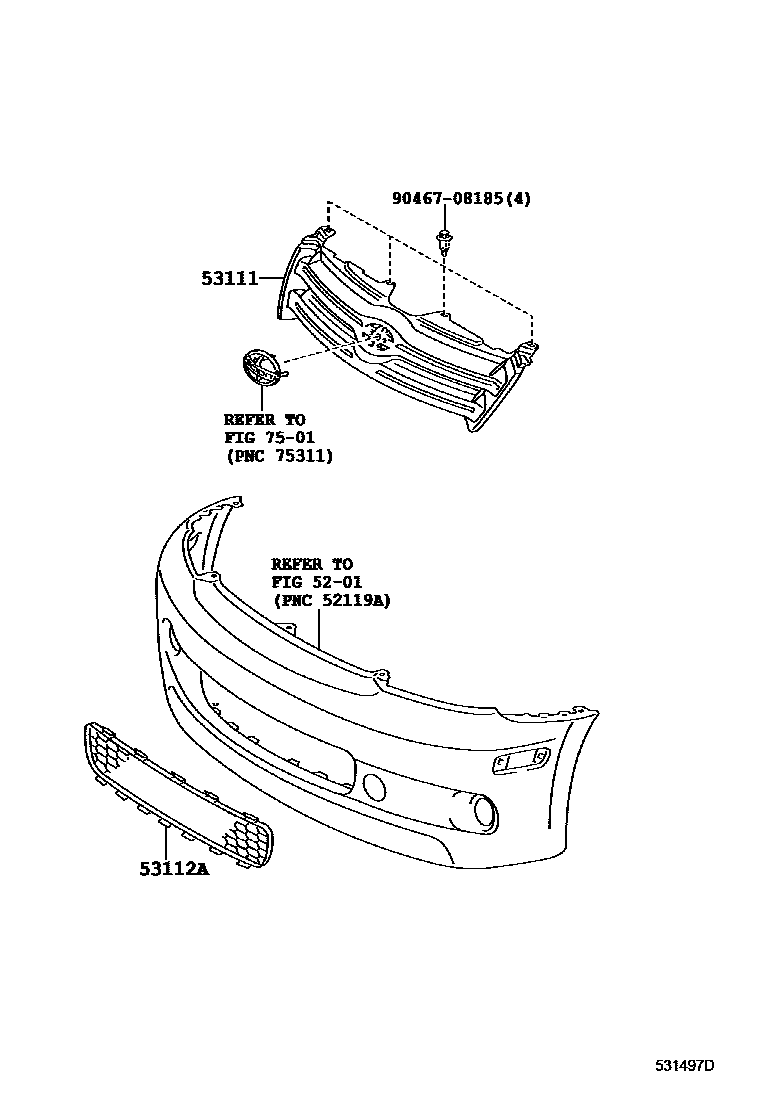

Toyota SCION XA — RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53111GRILLE, RADIATOR

main53101-52160-A0i200304-200507

WHITE,068

main53101-52160-B0i200304-200507

GRAT M. M.,1E3

main53101-52160-B1i200304-200507

SILVER M. M.,1E7

main53101-52160-C0i200304-200507

BLACK MC.,209

main53101-52160-D0i200304-200507

BORDEAUX MC.,3P2

main53101-52160-J0i200304-200507

DK. BLUE M.M.,8P4

main53111-52410-A0i200507-200612

WHITE PM.,057

main53111-52410-A1i200507-200612

WHITE,068

main53111-52410-B0i200507-200612

DK.GRAY MC.,1E0

main53111-52410-B1i200507-200612

SILVER M.M.,1E7

main53111-52410-C0i200507-200612

BLACK MC.,209

main53111-52410-D1i200507-200612

DK. RED M.M.,3Q3

main53111-52410-G0i200507-200612

LT.OLIVE ME.,6U4

main53111-52410-J0i200507-200612

DK.BLUE M.M.,8P4

main53111-52410-J1i200507-200612

LT. BLUE M.M.,8S9

main53101-52160-D1supersedes 53111-52410-D0i200408-200409

SPECIAL EDITION(USA),SUPER RED 5,3P0

main53101-52160-J1i200504-200505

SPECIAL EDITION(USA),BLUE MC.,8M6

main53111-52410-J2i200609-200611

SPECIAL EDITION(USA),BLUE ME.,8T4

53112AGRILLE, RADIATOR, LOWER

main53112-52110i200304-200507

main53112-52190i200507-200612

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9046708185

main90467-08185

5 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota SCION XA

This section contains 5 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota SCION XA. Key components include: FRONT BUMPER & BUMPER STAY, GRILLE, RADIATOR, GRILLE, RADIATOR, LOWER, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
