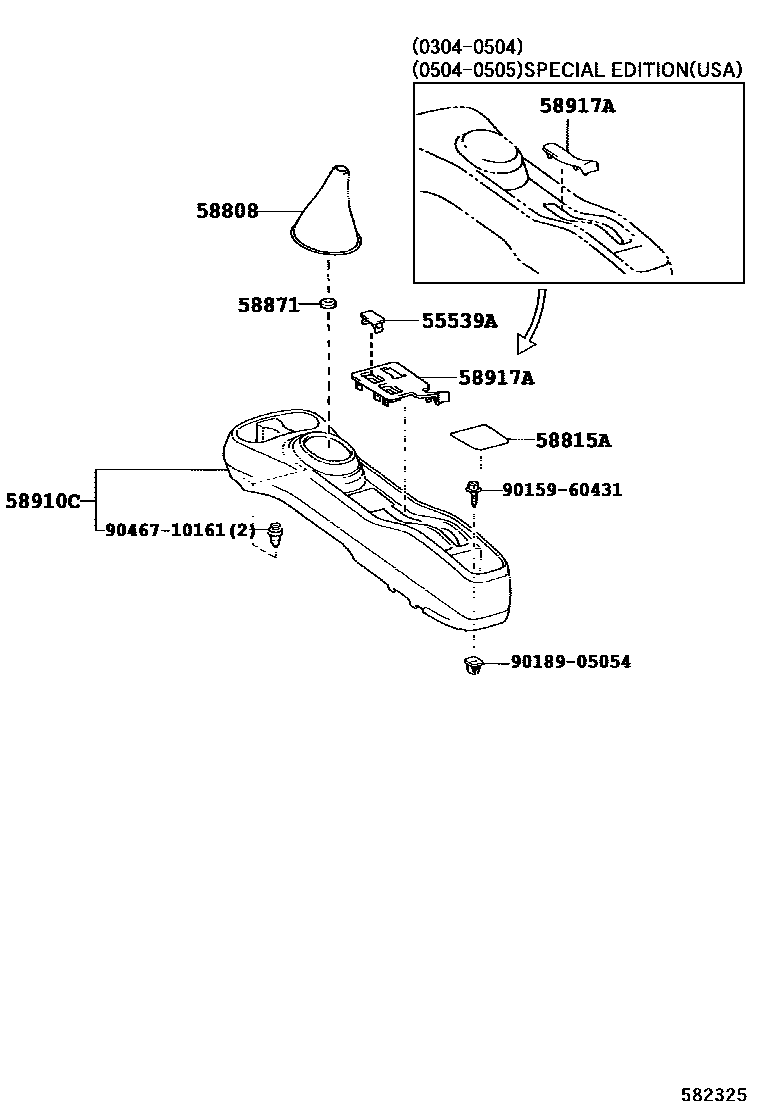

Toyota SCION XA — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-B0×2i200504-200507

DK.GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52050-B0i200304-200507

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-52020i200304-200507

58871CUSHION, CONSOLE BOX

main58871-20060i200304-200507

58910CBOX ASSY, CONSOLE, REAR

main58910-52010-B0supersedes 58910-52070-B0i200504-200505

SPECIAL EDITION(USA),DK.GRAY,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-52030-B0supersedes 58917-52060-B0i200504-200505

SPECIAL EDITION(USA),DK.GRAY,TRIM1#

9015960431

main90159-60431

9018905054

main90189-05054

9046710161

main90467-10161

9 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota SCION XA

This section contains 9 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SCION XA. Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, CUSHION, CONSOLE BOX, BOX ASSY, CONSOLE, REAR.
