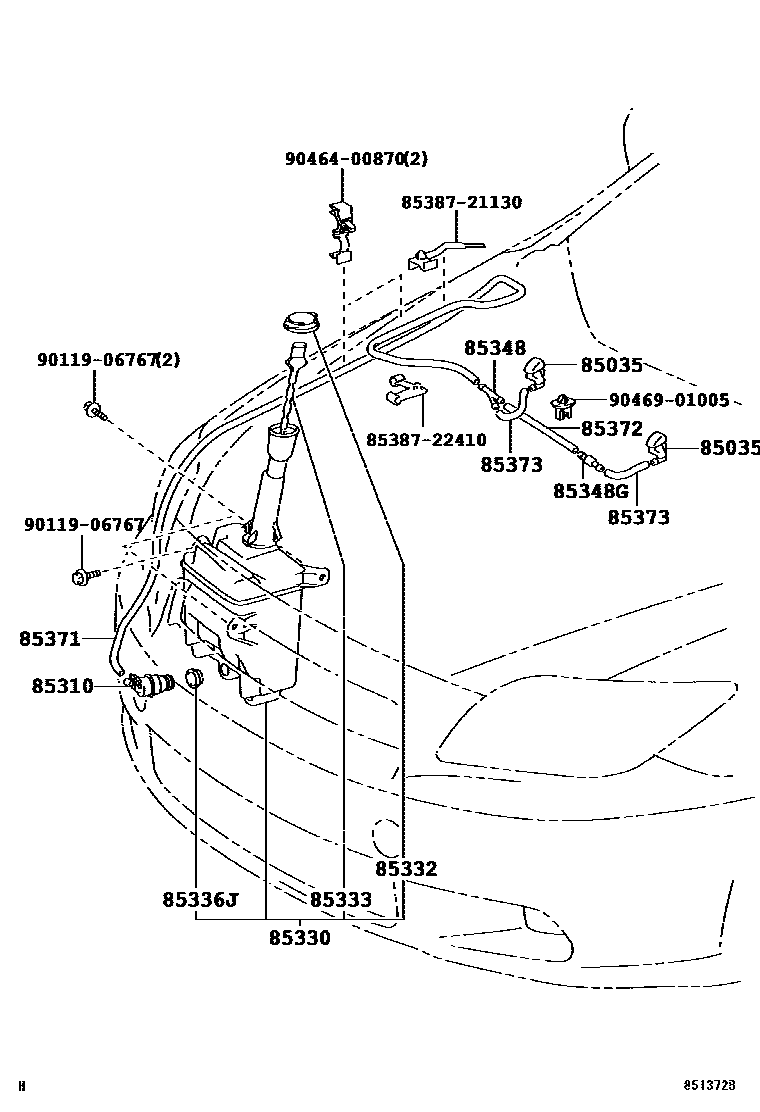

Toyota SCION TC — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-21030×2i200405

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200405

85330JAR ASSY, WINDSHIELD WASHER

main85315-21020i200405

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i200405

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020i200405

85336JPROTECTOR, WASHER JAR

main85336-60300i200405

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i200405

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200405

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33803i200405

L=2045

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200405

L=1450(*H,L=380)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200405

L=1450(*H,L=100)

8538721130CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-21130

8538722410CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410

9011906767

main90119-06767

9046400870

main90464-00870

9046901005

main90469-01005

16 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota SCION TC

This section contains 16 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SCION TC. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR, FILTER, WINDSHIELD WASHER JAR.
