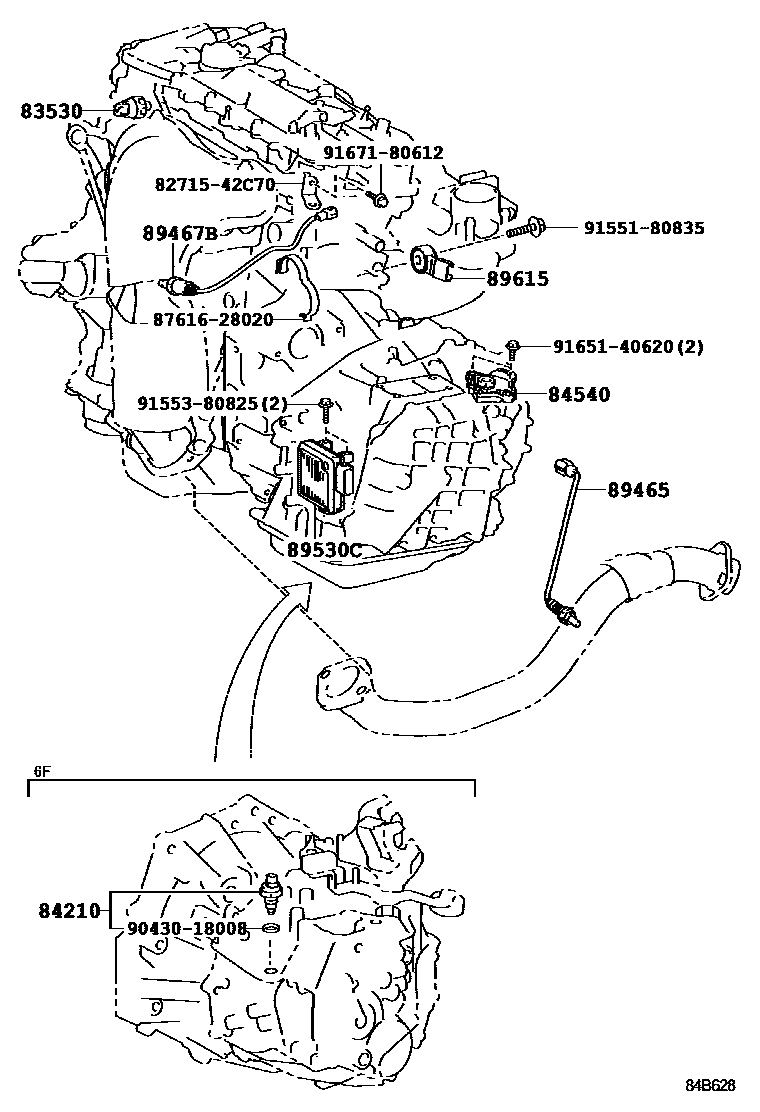

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAGT20201008-201305

DENSO

main83530-60020iAGT20201305

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAGT20..6F201008-201206

main84210-52050iAGT20..6F201206-201305

84540SWITCH ASSY, NEUTRAL START

main84540-33010iAGT20..6FC201305-201606

89465SENSOR, OXYGEN

main89465-21050iAGT20201305

main89465-21060iAGT20201008-201305

89467BSENSOR, AIR FUEL RATIO

main89467-21020iAGT20201008-201305

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-21010iAGT20..6FC201305

main89530-21050iAGT20..6FC201008-201101

main89530-21080iAGT20..6FC201101-201205

main89530-21100iAGT20..6FC201205-201305

89615SENSOR, KNOCK CONTROL

main89615-20090iAGT20201008-201305

8271542C70BRACKET,WIRING HARNESS CLAMP

main82715-42C70

8761628020CLAMP, COOLING UNIT CASE

main87616-28020

9043018008

main90430-18008

9155180835

main91551-80835

9155380825

main91553-80825

9165140620

main91651-40620

9167180612

main91671-80612

14 parts on this diagram · 6 diagrams in section
