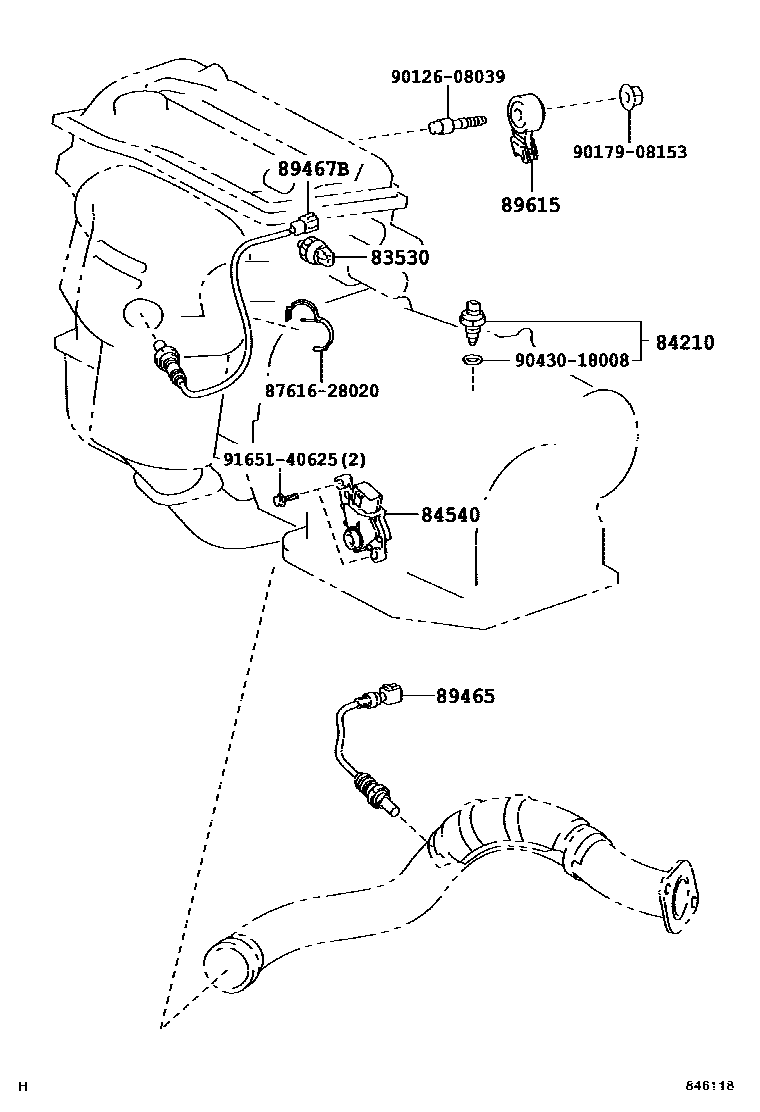

Toyota SCION TC — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1IGNITION & COMBINATION SWITCH0006 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iANT10200405

DENSO

main83530-60020iANT10200405

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iANT10..5F200405-201007

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-48010iANT10..4FC200405-201007

89465SENSOR, OXYGEN

main89465-21070iANT10200605

main89465-33220iANT10200405-200605

89467BSENSOR, AIR FUEL RATIO

main89467-33080iANT10200405

89615SENSOR, KNOCK CONTROL

main89615-20090iANT10200405

8761628020CLAMP, COOLING UNIT CASE

main87616-28020

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

11 parts on this diagram · 6 diagrams in section
