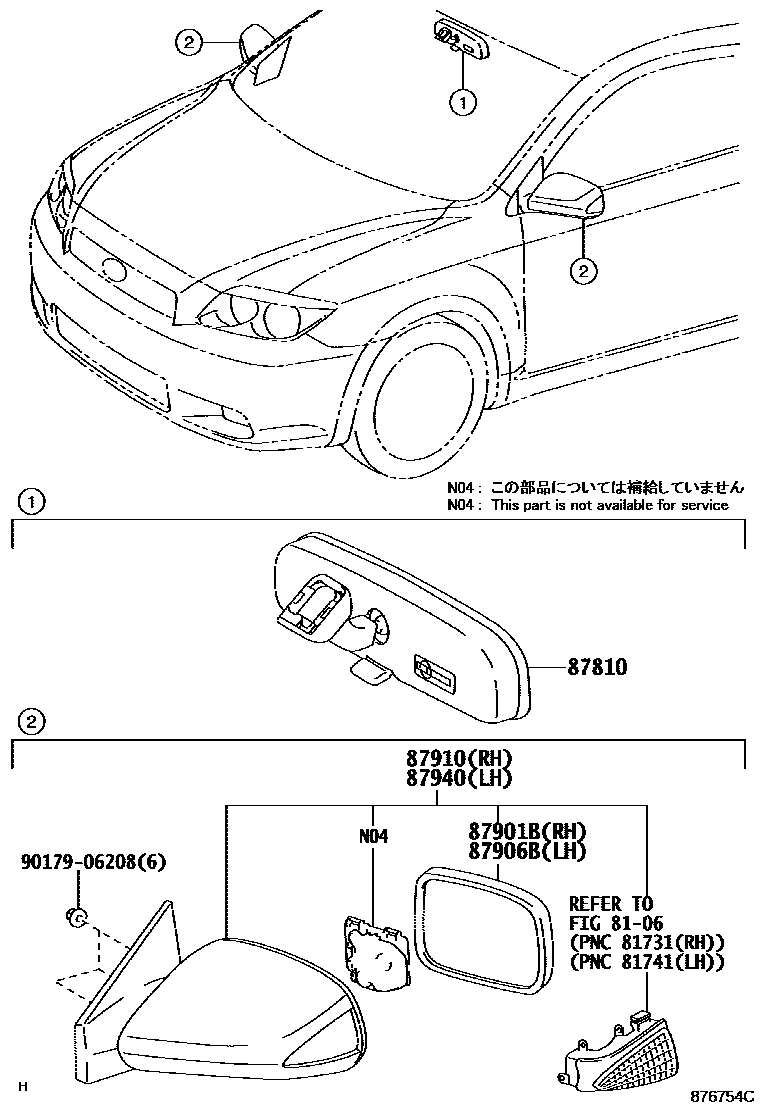

Toyota SCION TC — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-52040i200405-200612

main87810-52041i200701

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-21190i200405

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-21190i200405

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-21190-A0i200405-201007

SUPER WHITE 2,040

main87910-21190-B0i200405-201007

DK.GRAY MC.,1E0

main87910-21190-B1i200405-200505

SILVER M.M.,1E7

main87910-21190-B2i200505-201007

SILVER ME.,1F7

main87910-21190-C0i200405-201007

BLACK MC.,209

main87910-21190-D0i200405-200704

BORDEAUX MC.,3P2

main87910-21190-D2i200704-201007

BLACKISH RED MC.,3R0

main87910-21190-J0i200405-200505

DK.BLUE M.M.,8P4

main87910-21190-J1i200405-200704

LT.BLUE ME.,8Q6

main87910-21190-J2i200904-201007

DK.BLUE MC.,8S6

main87910-21190-J4i200704-201007

LT.BLUE M.M.,8S7

main87910-21190-J5i200708-200904

DK.BLUE MC.,8T5

main87910-21190-A1i200701-200703

SPECIAL EDITION,WHITE PEARL CS.,070

main87910-21190-B3i200802-200803

SPECIAL EDITION,DK.GRAY M.M.,1E9

main87910-21190-C1i200902-200903

SPECIAL EDITION,BLACK,202

main87910-21190-D1i200503-200504

SPECIAL EDITION,SUPER RED 5,3P0

main87910-21190-J3i200603-200604

SPECIAL EDITION,BLUE M.M.,8Q1

main87910-21190-J6i201001-201003

SPECIAL EDITION,BLUE ME.,8P1

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-21190-A0i200405-201007

SUPER WHITE 2,040

main87940-21190-B0i200405-201007

DK.GRAY MC.,1E0

main87940-21190-B1i200405-200505

SILVER M.M.,1E7

main87940-21190-B2i200505-201007

SILVER ME.,1F7

main87940-21190-C0i200405-201007

BLACK MC.,209

main87940-21190-D0i200405-200704

BORDEAUX MC.,3P2

main87940-21190-D2i200704-201007

BLACKISH RED MC.,3R0

main87940-21190-J0i200405-200505

DK.BLUE M.M.,8P4

main87940-21190-J1i200405-200704

LT.BLUE ME.,8Q6

main87940-21190-J2i200904-201007

DK.BLUE MC.,8S6

main87940-21190-J4i200704-201007

LT.BLUE M.M.,8S7

main87940-21190-J5i200708-200904

DK.BLUE MC.,8T5

main87940-21190-A1i200701-200703

SPECIAL EDITION,WHITE PEARL CS.,070

main87940-21190-B3i200802-200803

SPECIAL EDITION,DK.GRAY M.M.,1E9

main87940-21190-C1i200902-200903

SPECIAL EDITION,BLACK,202

main87940-21190-D1i200503-200504

SPECIAL EDITION,SUPER RED 5,3P0

main87940-21190-J3i200603-200604

SPECIAL EDITION,BLUE M.M.,8Q1

main87940-21190-J6i201001-201003

SPECIAL EDITION,BLUE ME.,8P1

9017906208

main90179-06208

7 parts on this diagram · 1 diagram in section

MIRROR for Toyota SCION TC

This section contains 7 genuine Toyota parts for the MIRROR system of the Toyota SCION TC. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
