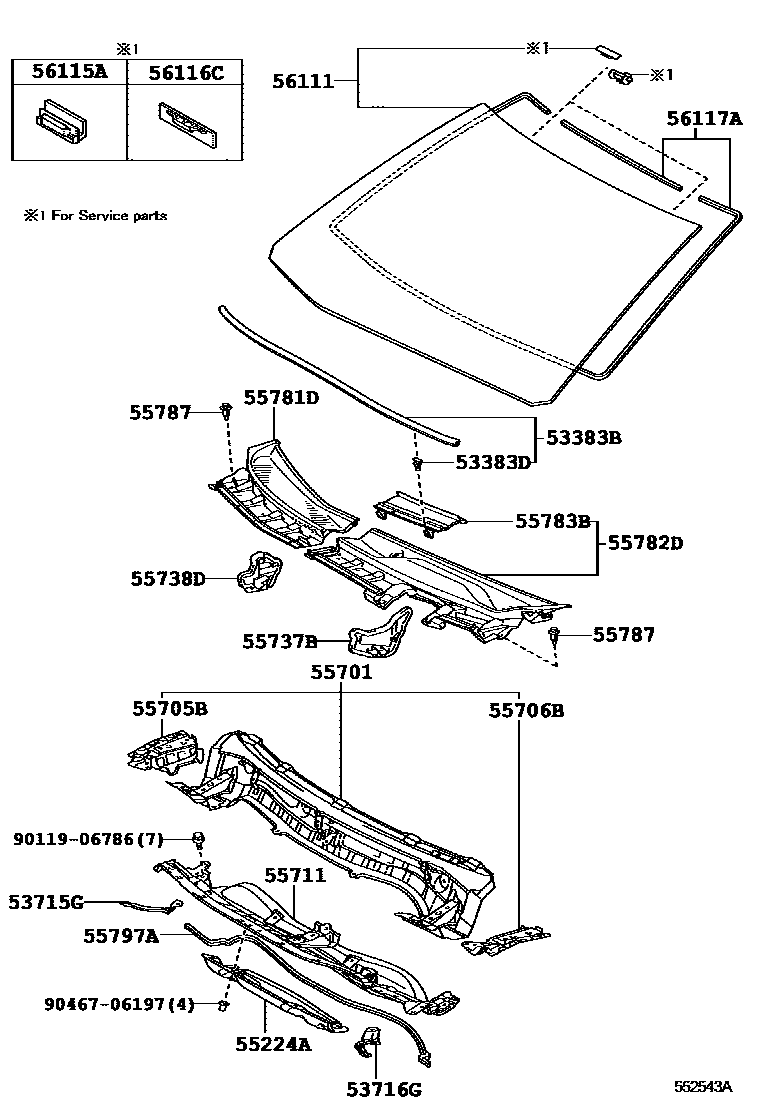

Toyota SCION TC — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-21030i201008-201305

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×6i201008-201305

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-21010i201008-201305

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-21010i201008-201305

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-21010i201008-201305

55701PANEL SUB-ASSY, COWL

main55700-21090i201008-201305

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-21030i201008-201305

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-21030i201008-201305

55711PANEL, COWL TOP, OUTER

main55701-21020i201008-201305

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-21020i201008-201305

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-21010i201008-201305

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-21040i201008-201305

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-21020i201008-201305

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-21020i201008-201305

55787CLIP, COWL VENTILATOR LOUVER, INNER

main90467-07076-C0×2i201008-201305

BLACK

55797ASEAL, COWL WATER EXTRACT

main55797-21020i201008-201305

56111GLASS, WINDSHIELD

main56101-21040i201008-201305

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i201008-201305

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201008-201305

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130i201008-201305

*D,L=3123 OR 612

9011906786

main90119-06786

9046706197

main90467-06197

22 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota SCION TC

This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SCION TC. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), EXTENSION, FRONT FENDER APRON, REAR RH, EXTENSION, FRONT FENDER APRON, REAR LH, INSULATOR, DASH PANEL, OUTER NO.2.
