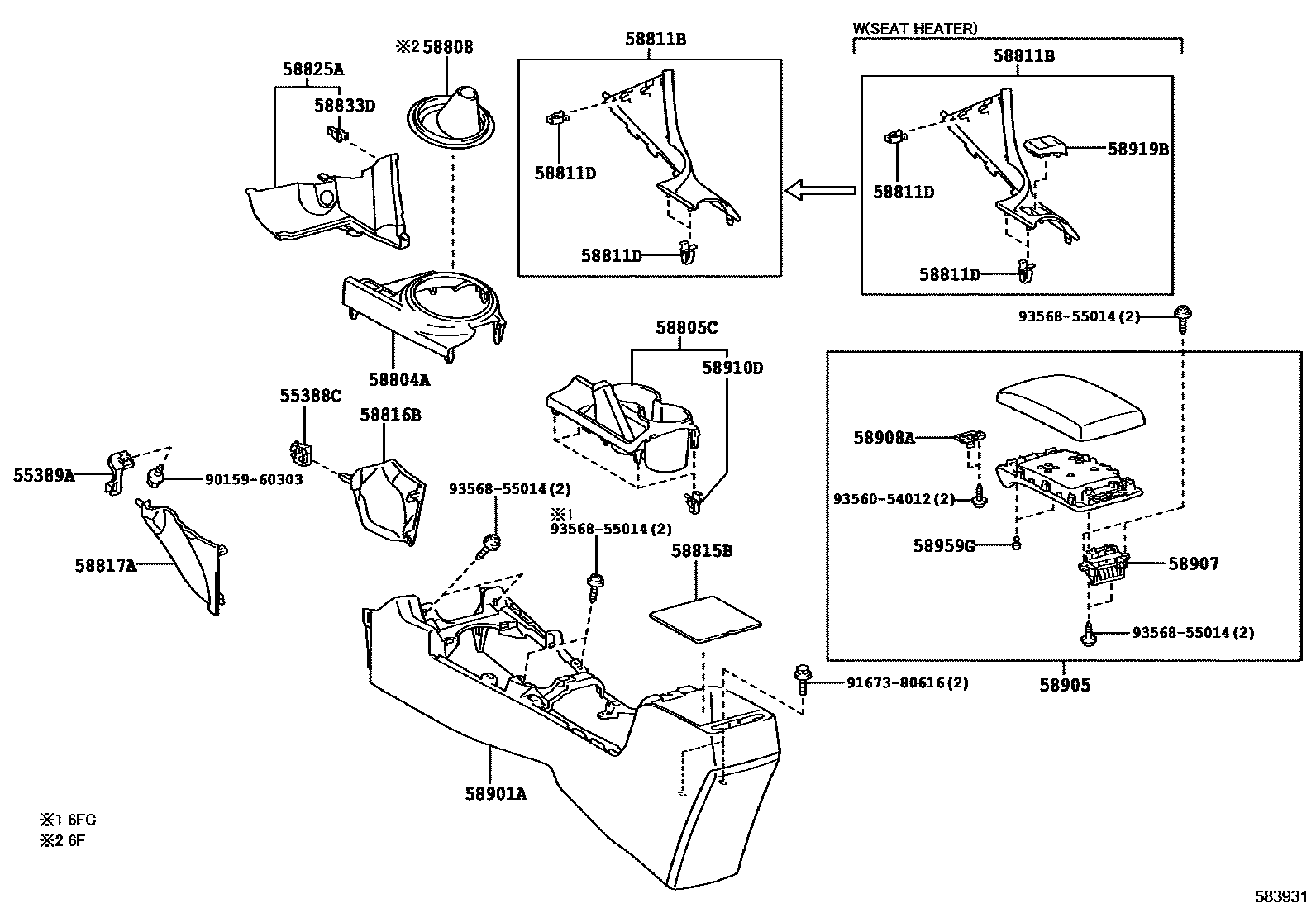

Toyota SCION TC — CONSOLE BOX & BRACKET

55388CBRACKET, CONSOLE MOUNTING, RH

main55388-42010iAGT20201008-201305

55389ABRACKET, CONSOLE MOUNTING, LH

main55389-12040iAGT20201305

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-21100-B0iAGT20201008-201305

DK.GRAY,TRIM1#

main58804-21110-B0iAGT20201305-201606

DK.GRAY,TRIM1#

main58804-21120-B0iAGT20201412-201502

LIMITED PACKAGE-SPECIAL EDITION,DK.GRAY,TRIM10

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-21020-B0iAGT20201008-201305

DK.GRAY,TRIM1#

main58805-21030-B0iAGT20201605-201606

LIMITED PACKAGE-RS10.0,DK.GRAY,TRIM10

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-21030-C0iAGT20..6F201008-201305

BLACK,TRIM1#

main58808-21050-C0iAGT20..6F201605-201606

LIMITED PACKAGE-RS10.0,BLACK,TRIM10

58811BBOX, CONSOLE

main58802-21020-B0supersedes 58802-21030-B0iAGT20201008-201305

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main58802-21040-B0supersedes 58802-21030-B0iAGT20201401-201606

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-10201×6iAGT20201305

58815BCARPET, CONSOLE BOX

main58815-21040iAGT20201008-201305

58816BINSERT, CONSOLE BOX

main58816-21010-B0iAGT20201008-201305

DK.GRAY,TRIM1#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-21010-B0iAGT20201008-201305

DK.GRAY,TRIM1#

main58817-21020-B0iAGT20201305-201606

DK.GRAY,TRIM1#

58825APOCKET, CONSOLE BOX

main58825-21010-B0iAGT20201008-201305

DK.GRAY,TRIM1#

58833DCLIP(FOR CONSOLE COVER)

main90467-10203iAGT20201008-201305

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-21100-B0iAGT20201008-201305

DK.GRAY,TRIM1#

main58901-21101-B0iAGT20201308-201606

DK.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-21080-B1supersedes 58905-21090-B1iAGT20201008-201305

CONSOLE BOX-WITH(PVC LEATHER),DK.GRAY,TRIM1#

main58905-21100-B0supersedes 58905-21090-B1iAGT20201401-201606

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12100iAGT20201008-201305

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iAGT20201008-201305

58910DCLIP(FOR CONSOLE BOX)

main90467-10203×4iAGT20201008-201305

58919BPLATE, CONSOLE BOX

main58919-21050-B0iAGT20201008-201305

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

58959GCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iAGT20201008-201305

9015960303

main90159-60303

9167380616

main91673-80616

9356054012

main93560-54012

9356855014

main93568-55014

23 parts on this diagram · 1 diagram in section
