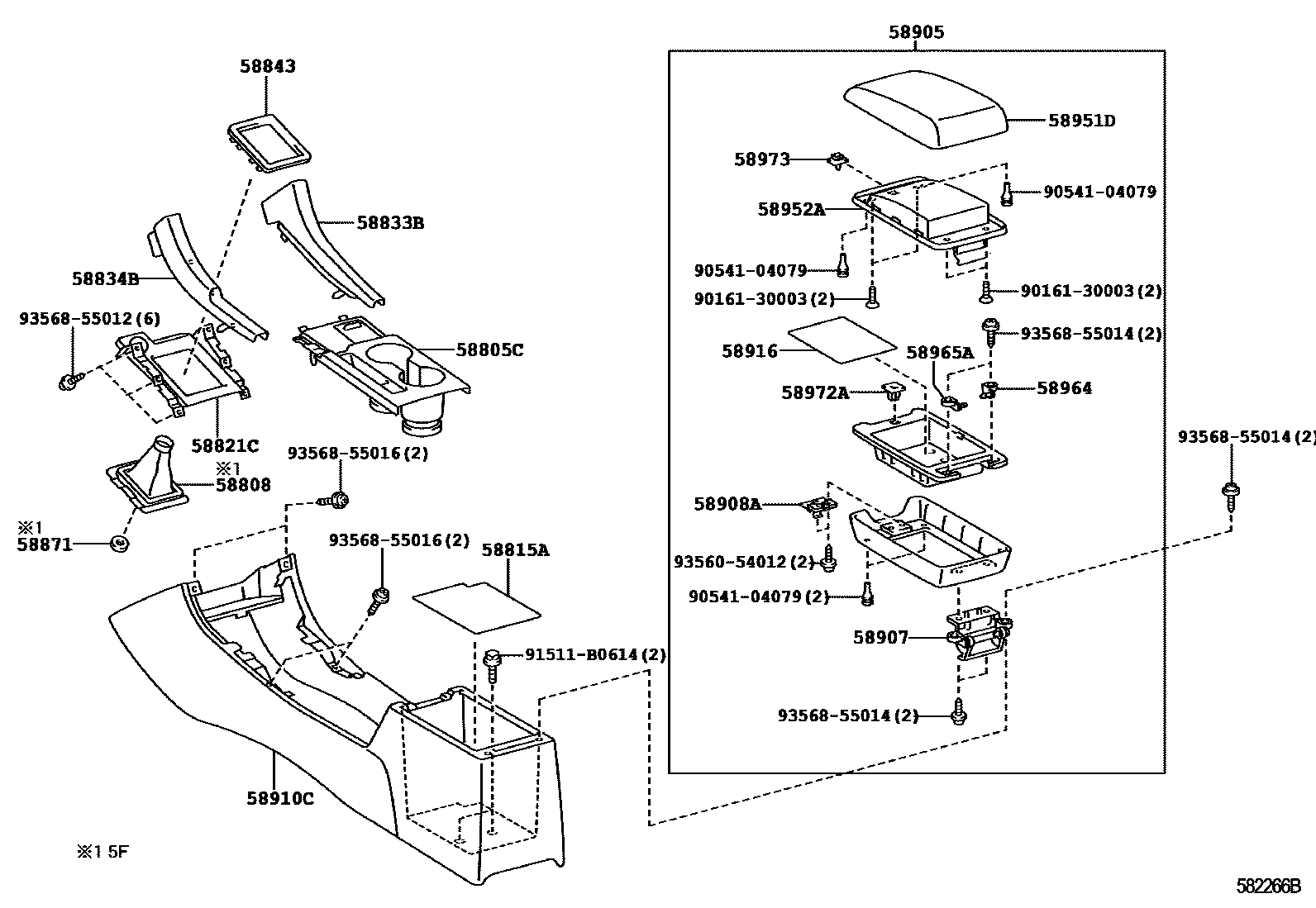

Toyota SCION TC — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1BASE PACKAGE

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-21010-B0iANT10200405-201007

DK.GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-21020-B0iANT10..5F200405-201007

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-20090iANT10200505

main58815-21020iANT10200405-200505

58821CPANEL, CONSOLE, UPPER

main58821-21040-B0iANT10200405-201007

DK.GRAY,TRIM1#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-21010-B0iANT10200405-201007

DK.GRAY,TRIM1#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-21010-B0iANT10200405-201007

DK.GRAY,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-21030-B0iANT10200405-201007

DK.GRAY,TRIM1#

58871CUSHION, CONSOLE BOX

main58871-20060iANT10..5F200405

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-21050-B0iANT10200405-201007

DK.GRAY,TRIM1#

main58905-21060-C0iANT10200605-200804

BASE PACKAGE,BLACK,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12050iANT10200405

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iANT10200405

58910CBOX ASSY, CONSOLE, REAR

main58911-21080-B0iANT10200405-200505

DK.GRAY,TRIM1#

58916MAT, BOX BOTTOM

main58916-12080iANT10200405

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-21030-C0iANT10200405-201007

BLACK,TRIM1#

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-12060-B6iANT10200405-201007

DK.GRAY,TRIM1#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20040iANT10200405

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20050iANT10200405

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-34010iANT10200405

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010iANT10200405

9016130003

main90161-30003

9054104079

main90541-04079

91511B0614

main91511-B0614

9356054012

main93560-54012

9356855012

main93568-55012

9356855014

main93568-55014

9356855016

main93568-55016

26 parts on this diagram · 3 diagrams in section
