Toyota SCION TC — CLUTCH & RELEASE FORK

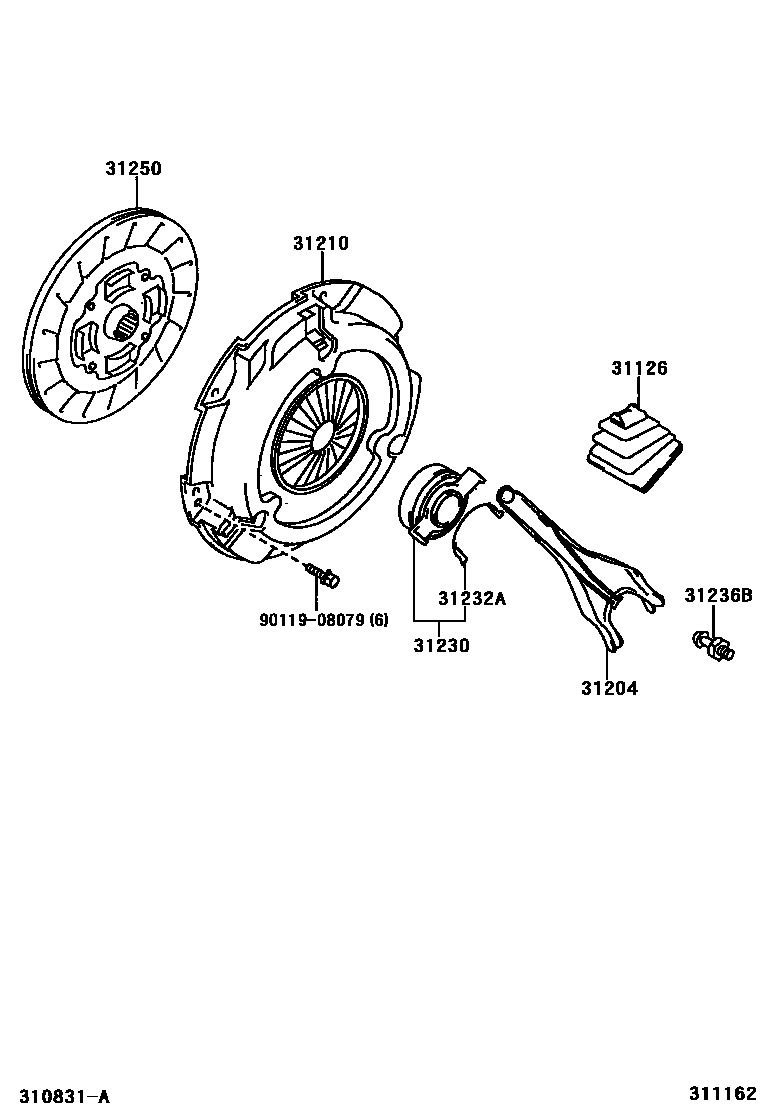

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-32010i200405

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100i200405

31210COVER ASSY, CLUTCH

main31210-28060i200405-200508

main31210-33040i200509-200701

main31210-33041i200702-200703

main31210-33042i200703

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170i200405-200608

main31230-33020i200608

31232ACLIP, RELEASE BEARING HUB

main31232-20020i200405

31236BSUPPORT, RELEASE FORK

main31236-20060i200405

31250DISC ASSY, CLUTCH

main31250-28180i200405-200510

main31250-28181i200511-200604

main31250-33040i200605

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota SCION TC

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota SCION TC. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
