Toyota SCION IQ — SWITCH & RELAY & COMPUTER

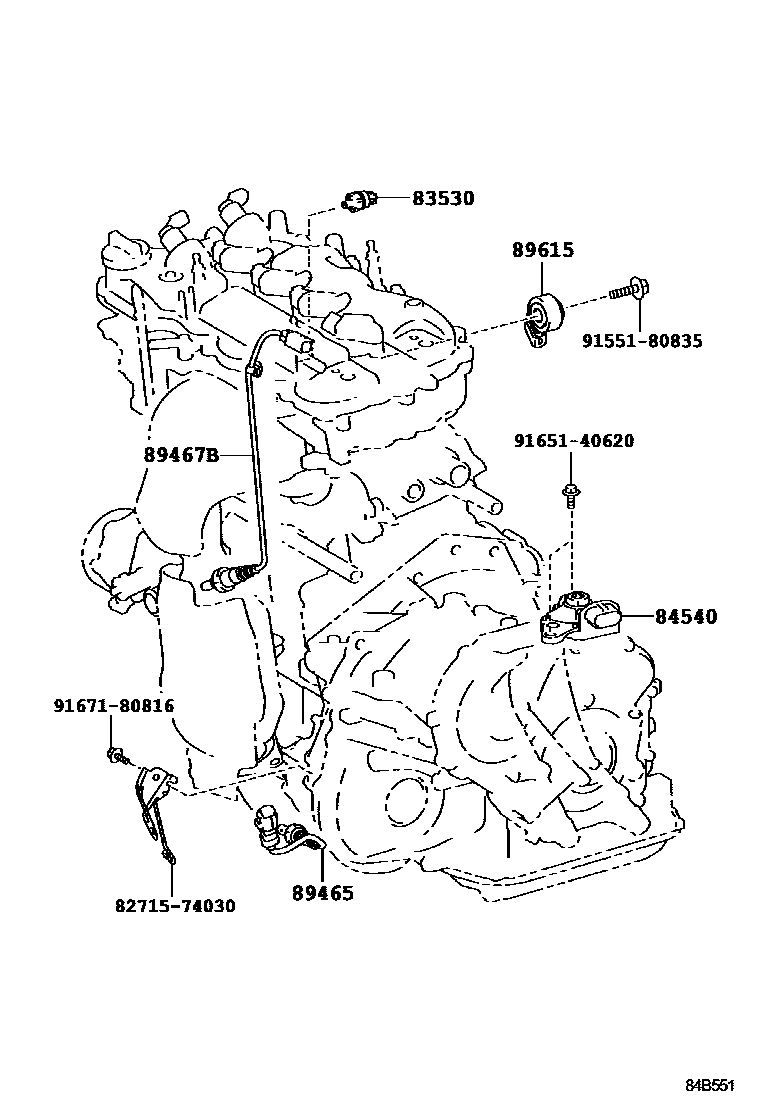

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i201107-201507

DENSO

main83530-60020i201107-201507

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-74010i201107-201506

89465SENSOR, OXYGEN

main89465-74030i201107-201506

89467BSENSOR, AIR FUEL RATIO

main89467-74040i201107-201506

89615SENSOR, KNOCK CONTROL

main89615-20090i201107-201506

8271574030BRACKET,WIRING HARNESS CLAMP

main82715-74030

9155180835

main91551-80835

9165140620

main91651-40620

9167180816

main91671-80816

9 parts on this diagram · 7 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota SCION IQ

This section contains 79 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota SCION IQ. Key components include: RELAY ASSY, STARTER, STEERING COLUMN & SHAFT, FLASHER ASSY, TURN SIGNAL, FUSIBLE LINK, FUSE, FUSE BLOCK.
