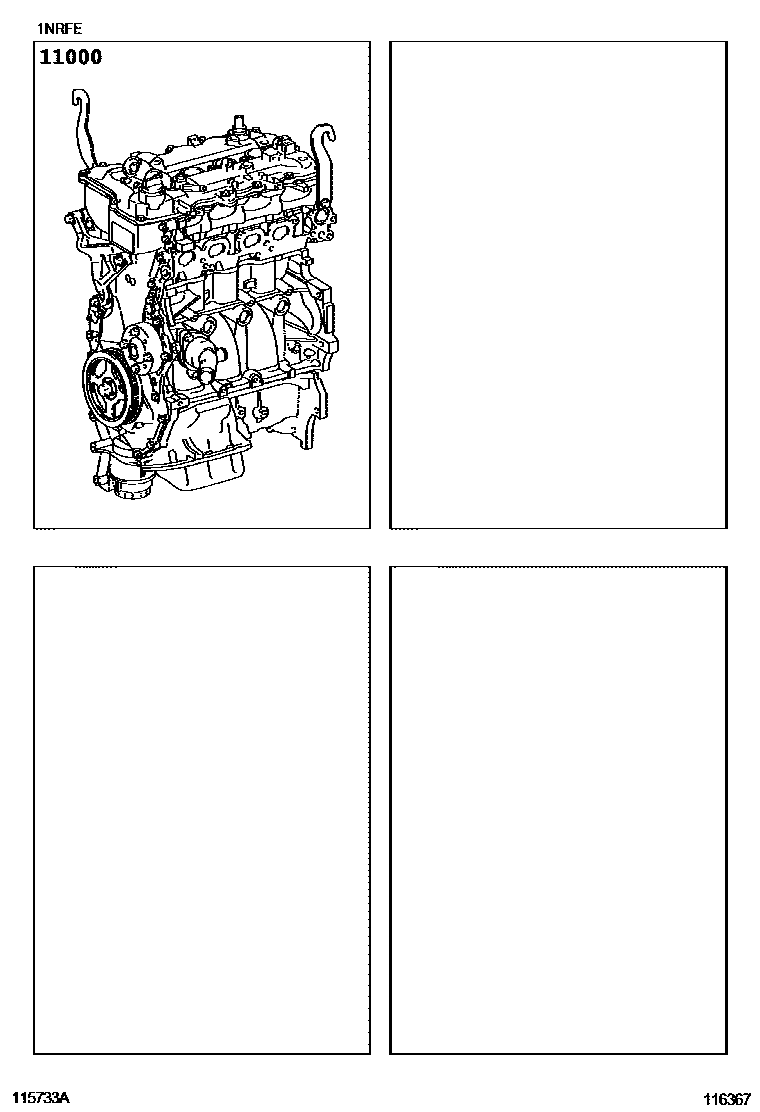

Toyota SCION IQ — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-47120i201107-201301

main19000-47121i201301-201408

main19000-47430i201408-201506

1 parts on this diagram · 1 diagram in section
