Toyota SCION IQ — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-B0i201107-201506

DK.GRAY,TRIM1#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-74020-C0i201107-201506

BLACK,TRIM1#

58818ACOVER, CONSOLE BOX, FR

main58818-74030-C0supersedes 58818-74010-C0i201107-201506

COLD AREA SPEC(FOR NORTH AMERICA),BLACK,TRIM1#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-74010-C0i201107-201506

BLACK,TRIM1#

58910CBOX ASSY, CONSOLE, REAR

main58910-74010-C0i201107-201506

BLACK,TRIM1#

58910DCLIP(FOR CONSOLE BOX)

main55345-74010×2i201107-201506

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-74010i201107-201506

9046710161

main90467-10161

9046710201

main90467-10201

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section

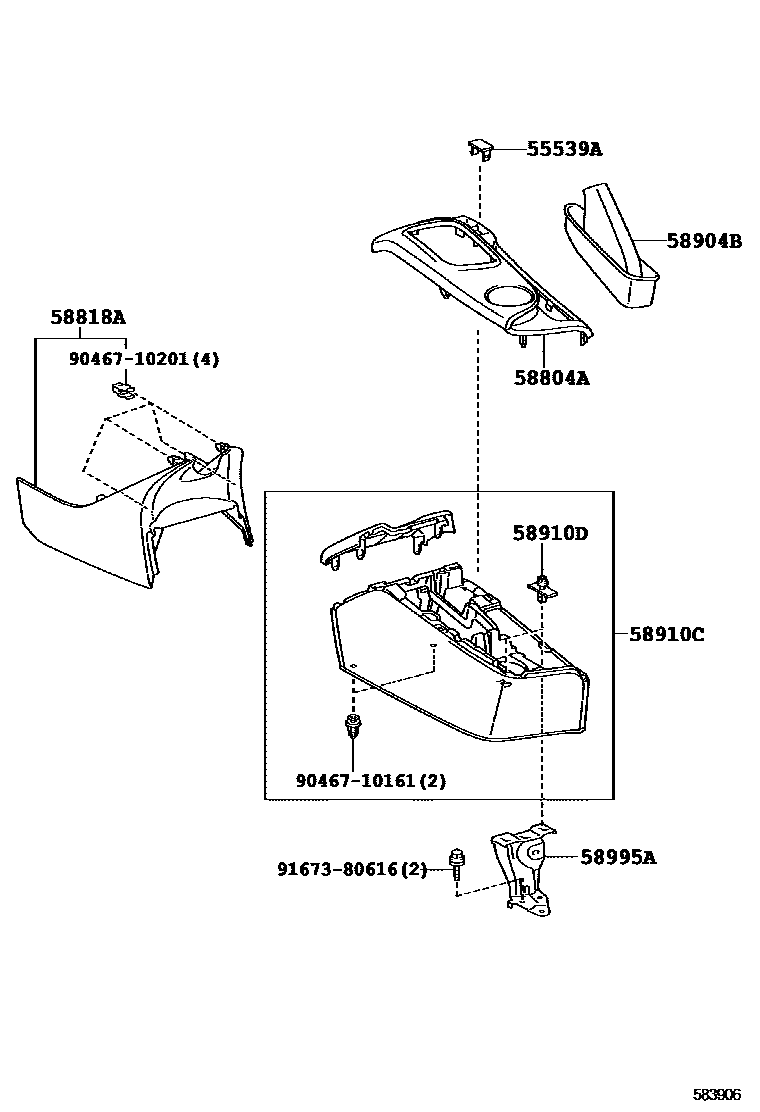

CONSOLE BOX & BRACKET for Toyota SCION IQ

This section contains 10 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SCION IQ. Key components include: COVER, SPARE SWITCH HOLE, PANEL SUB-ASSY, CONSOLE, UPPER, COVER, CONSOLE BOX, FR, COVER SUB-ASSY, PARKING BRAKE HOLE, BOX ASSY, CONSOLE, REAR.
