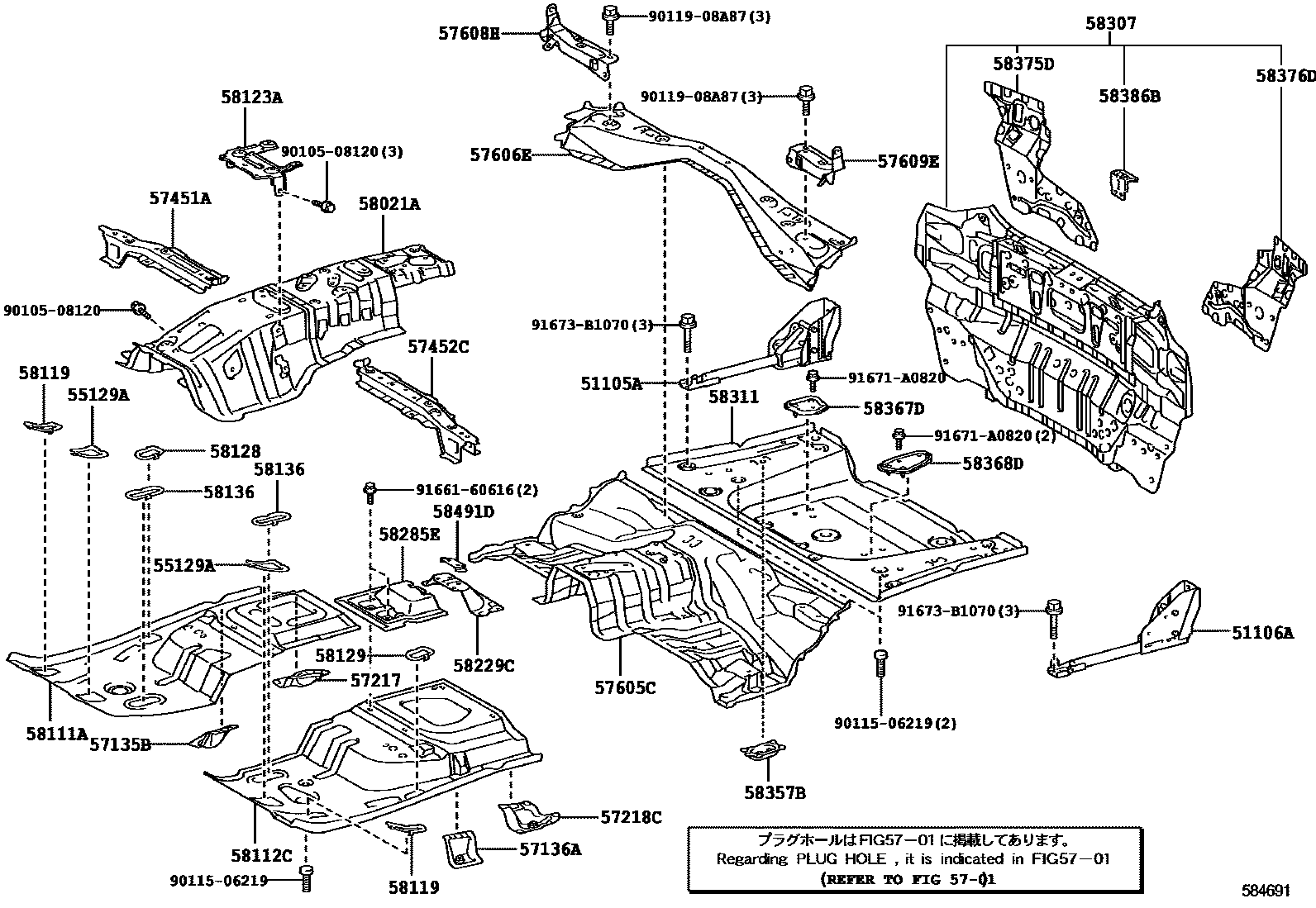

Toyota SCION IQ EV — FLOOR PAN & LOWER BACK PANEL
51105APIPE SUB-ASSY, REAR FRAME, RH
51106APIPE SUB-ASSY, REAR FRAME, LH
5701HOLE PLUG
57135BBRACKET, FRONT FLOOR SIDE, RH
57136ABRACKET, FRONT FLOOR SIDE, LH
57217BRACKET, BODY MOUNTING, NO.4 RH
57218CBRACKET, BODY MOUNTING, NO.4 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
58021APANEL SUB-ASSY, HEADER
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58123ASUPPORT, SHIFT & SELECT LEVER
58128PLATE, FRONT FLOOR, NO.1
58129PLATE, FRONT FLOOR, NO.2
58136COVER, FRONT FLOOR HOLE
58229CPANEL, BATTERY SERVICE HOLE
58285ECOVER, CENTER FLOOR HOLE
GRAY,TRIM2#
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58357BBRACKET, ACTUATOR COVER, NO.3 RH
58367DBRACKET, CHARGE TUBE
58368DBRACKET, CHARGE TUBE, NO.2
58375DREINFORCEMENT, BODY LOWER BACK PANEL, RH
58376DREINFORCEMENT, BODY LOWER BACK, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58491DPLATE, BATTERY SERVICE COVER
9010508120
main90105-08120
9011506219
main90115-06219
9011908A87
main90119-08A87
9166160616
main91661-60616
91671A0820
main91671-A0820
91673B1070
main91673-B1070
39 parts on this diagram · 1 diagram in section
FLOOR PAN & LOWER BACK PANEL for Toyota SCION IQ EV
This section contains 39 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota SCION IQ EV. Key components include: PIPE SUB-ASSY, REAR FRAME, RH, PIPE SUB-ASSY, REAR FRAME, LH, COVER, FRONT FLOOR HOLE, HOLE PLUG, BRACKET, FRONT FLOOR SIDE, RH.
