Toyota SCION IQ EV — CONSOLE BOX & BRACKET

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-74030-C1i201209-201212

BLACK,TRIM2#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-74010-A2i201209-201212

WHITE,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-74010i201209

58818ACOVER, CONSOLE BOX, FR

main58802-74010-C0i201209-201212

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-74020-C0i201209-201212

BLACK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-74040-C0i201209-201212

BLACK,TRIM2#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-74020i201209

9046710161

main90467-10161

9046710201

main90467-10201

9046710203

main90467-10203

9167380616

main91673-80616

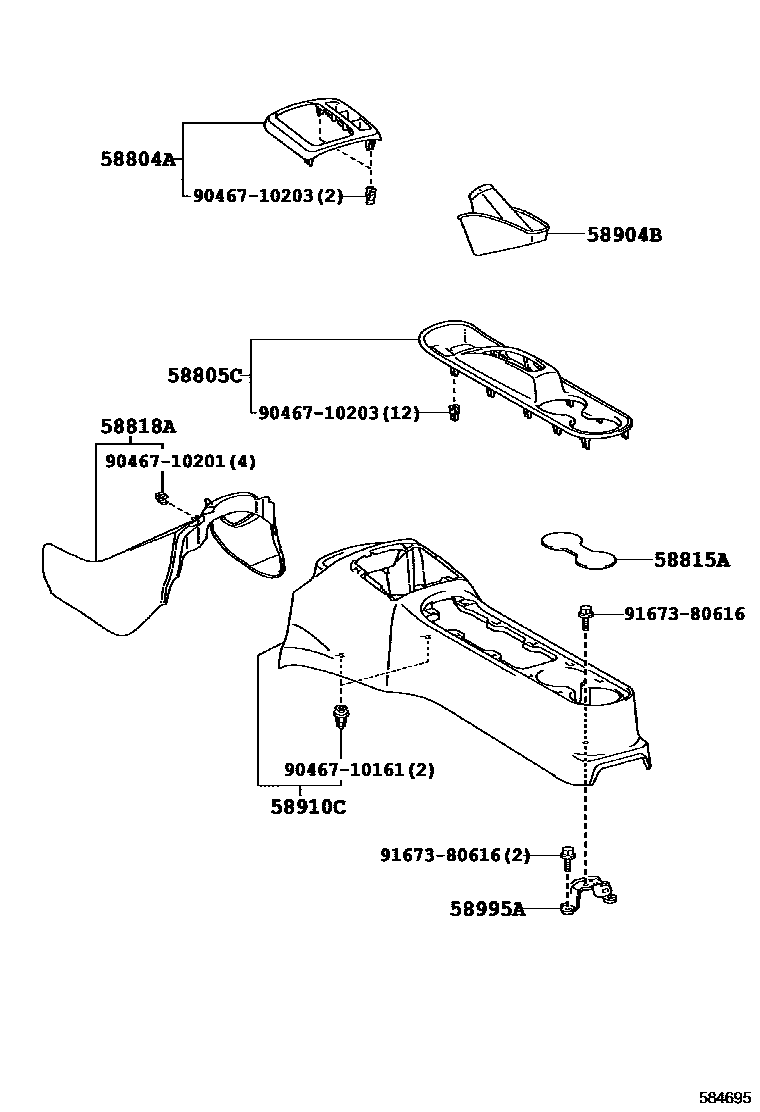

11 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota SCION IQ EV

This section contains 11 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SCION IQ EV. Key components include: PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, UPPER REAR, CARPET, CONSOLE BOX, COVER, CONSOLE BOX, FR, COVER SUB-ASSY, PARKING BRAKE HOLE.
