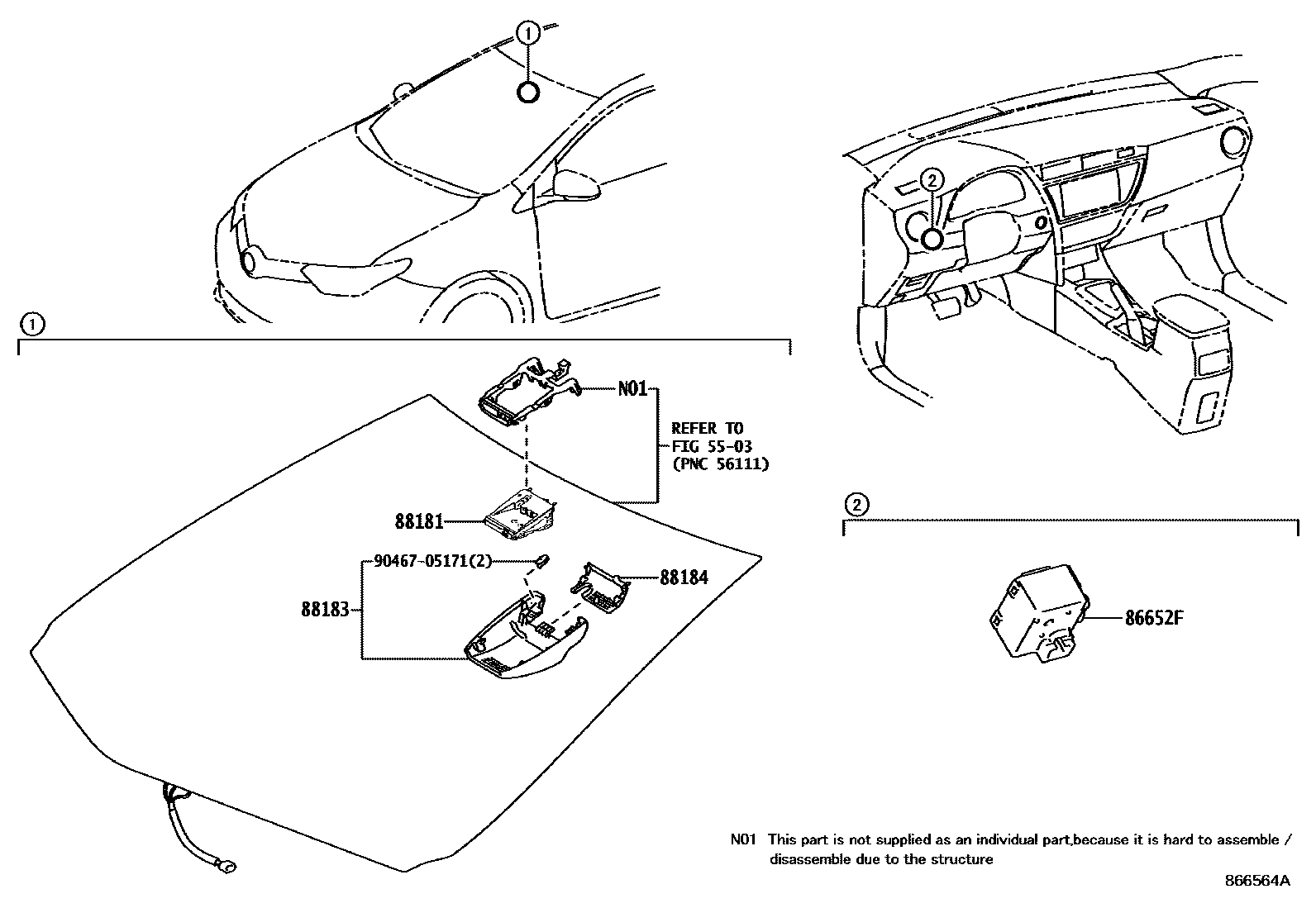

Toyota SCION IM/IM — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86652FBUZZER, SKID CONTROL

main86652-50010i201608-201611

PRE-COLLISION SYSTEM-WITHOUT

88181SENSOR, PRE-COLLISION CITY

main88181-02060i201611

PRE-COLLISION SYSTEM-WITHOUT

main88181-0W110i201608-201611

PRE-COLLISION SYSTEM-WITHOUT

88183COVER, PRE-COLLISION CITY

main88183-12020i201608-201610

PRE-COLLISION SYSTEM-WITHOUT

main88183-12021i201611

PRE-COLLISION SYSTEM-WITHOUT

88184COVER, PRE-COLLISION CITY, 2ND

main88184-12040i201608

PRE-COLLISION SYSTEM-WITHOUT

9046705171

main90467-05171

6 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota SCION IM/IM

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota SCION IM/IM. Key components include: COWL PANEL & WINDSHIELD GLASS, BUZZER, SKID CONTROL, SENSOR, PRE-COLLISION CITY, COVER, PRE-COLLISION CITY, COVER, PRE-COLLISION CITY, 2ND.
